Запчасти Case IH QUADTRAC 620 (21.135.AQ[04]) - TRANSMISSION CONTROL VALVE MOUNTING, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION

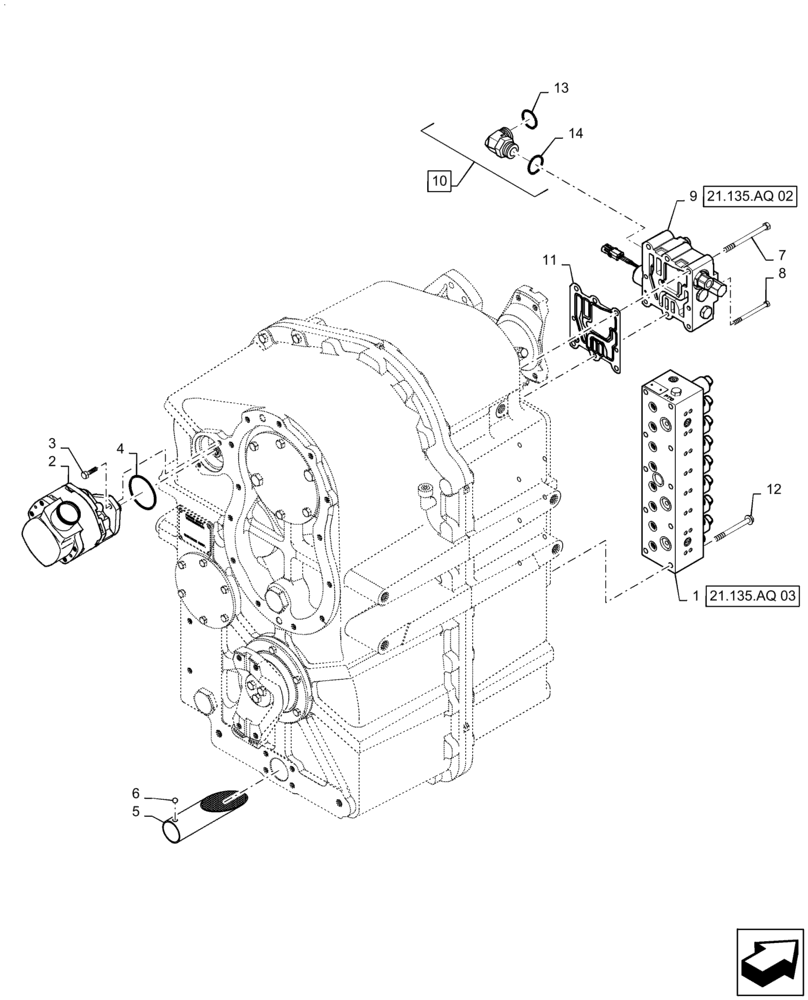

Схема запчастей Case IH QUADTRAC 620 - (21.135.AQ[04]) - TRANSMISSION CONTROL VALVE MOUNTING, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION
5
3
11
14
1
7
12
13
10
9
6
21.135.aq 03
21.135.aq 02
8
4
2

Артикул

Название

Примечание

Количество

1

84314799

VALVE

Transmission Range Control

1шт.

2

84176413

LUBE PUMP

Transmission Oil

1шт.

2

84176413R

REMAN-HYD PUMP

Reman

1шт.

2

84176413C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

5

370551A1

TUBE

Suction

1шт.

6

87672304

BALL

Steel

1шт.

7

514-739

BOLT,Hex, M10 x 1.25 x 120mm, Cl 8.8

5шт.

8

84315313

BOLT

Transmission Regulator Valve Mount

3шт.

9

47479826

VALVE

Transmission Regulator

1шт.

9

47479826R

REMAN-HYD VALVE

Reman Transmission Regulator

1шт.

9

47479826C

CORE-VALVE HYD

Core Return Number

1шт.

10

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 13 - 14

1шт.

11

84315311

GASKET

Transmission Regulator Valve

1шт.

12

87362227

BOLT

Flange, M10 - 1.25 x 98mm

10шт.

13

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

14

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 18
