Запчасти Case IH QUADTRAC 620 (21.135.AQ[03]) - TRANSMISSION CONTROL VALVE, RANGE, BSN ZFF308000 (21) - TRANSMISSION

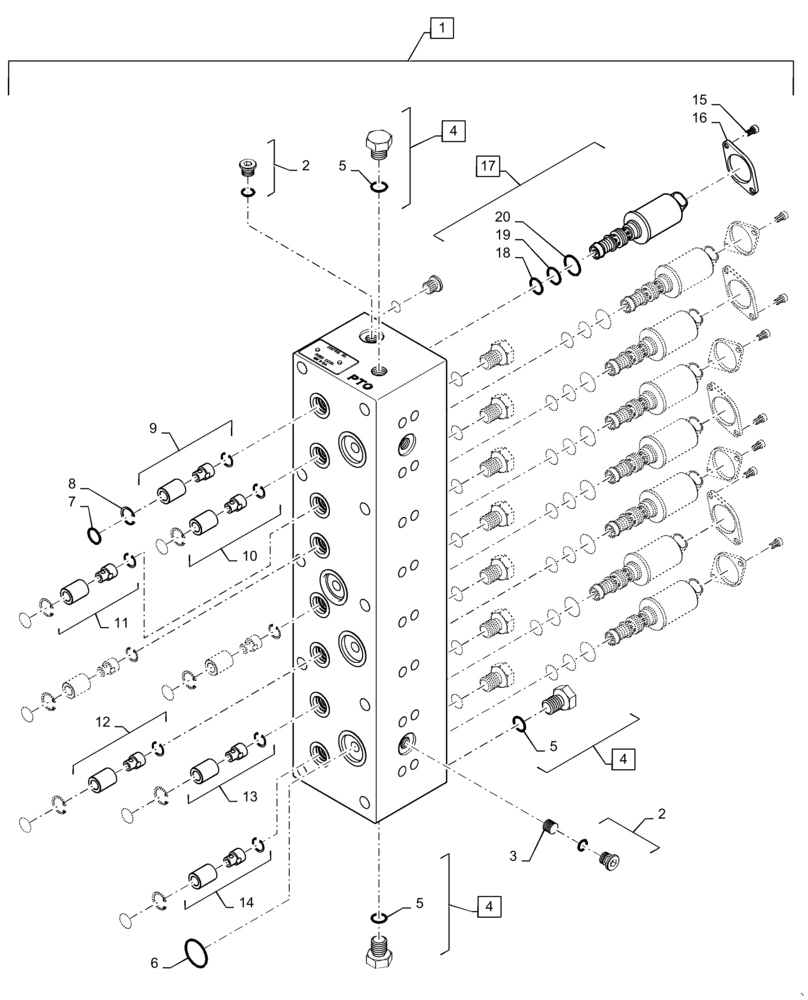

Схема запчастей Case IH QUADTRAC 620 - (21.135.AQ[03]) - TRANSMISSION CONTROL VALVE, RANGE, BSN ZFF308000 (21) - TRANSMISSION
13
2
4
16
1
4
14
5
5
9
11
4
19
3
7
18
5
20
15
8
2
10
6
17
12

Артикул

Название

Примечание

Количество

1

84314799

VALVE

Transmission Range, Incl 2 - 20

1шт.

2

87350425

STOP PLUG

With Oring

7шт.

3

87350428

ORIFICE

Plug

2шт.

4

220064A1

PLUG,M14 x 1.5, ORB

Incl 5

10шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

10шт.

6

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

4шт.

7

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

8шт.

8

100-2156

SNAP RING,0.562", Int, #56

8шт.

9

87350429

CHECK VALVE

3.45mm

1шт.

10

87350431

CHECK VALVE

2.51mm

2шт.

11

87350432

CHECK VALVE

2.36mm

2шт.

12

87350433

CHECK VALVE

2.82mm

1шт.

13

87350434

CHECK VALVE

5.54mm

1шт.

14

87350435

CHECK VALVE

4.80mm

1шт.

15

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

16шт.

16

87350463

PLATE

Valve Retainer

8шт.

17

84173878

SOLENOID

Proportional, Incl 18 - 20

8шт.

18

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

8шт.

19

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

8шт.

20

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

8шт.

Выбрано товаров: 20
