Запчасти Case IH QUADTRAC 600 (25.100.19) - 600 SERIES AXLE - FRONT COVER - STEIGER 550HD & 600, QUADTRAC 550 & 600 (25) - FRONT AXLE SYSTEM

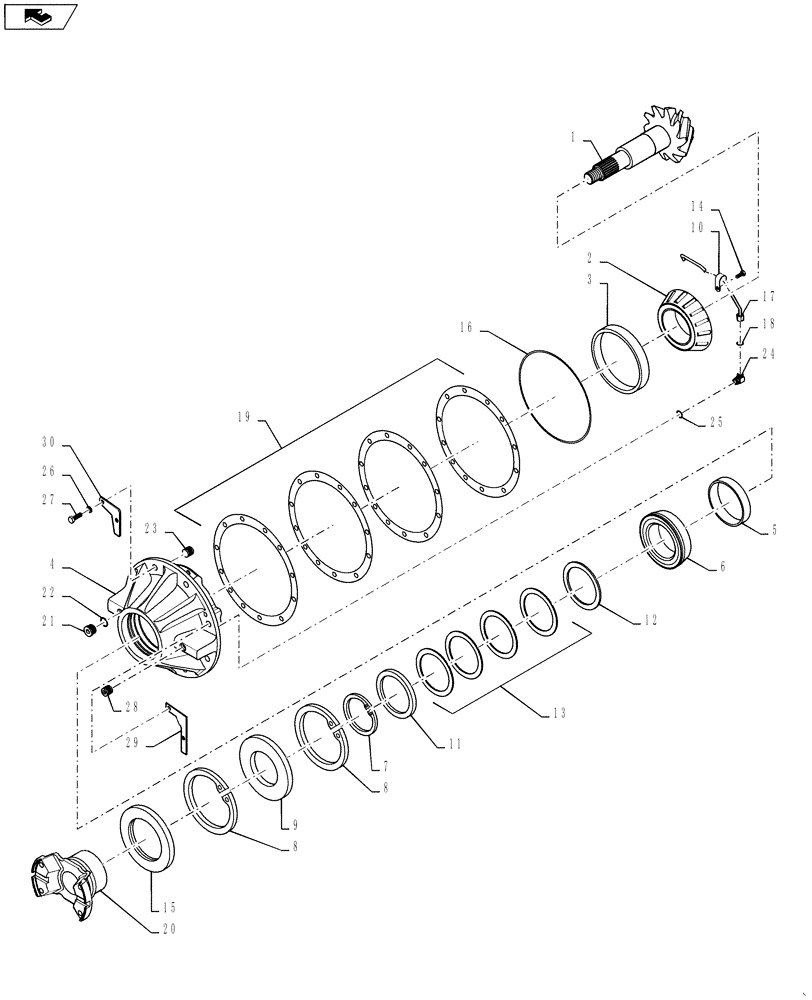

Схема запчастей Case IH QUADTRAC 600 - (25.100.19) - 600 SERIES AXLE - FRONT COVER - STEIGER 550HD & 600, QUADTRAC 550 & 600 (25) - FRONT AXLE SYSTEM
12
20
6
9
16
10
23
17
24
29
13
27
8
2
26
4
1
18
5
8
11
14
21
15
25
home
30
7
19
28
22
3

Артикул

Название

Примечание

Количество

1

87522606

GEAR SET

Pinion Shaft and Gears, Front Axle Cover, (Pinion Gear Not Shown)

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

328421A5

COVER

Front Axle

1шт.

5

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

6

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

7

229515A2

RING, SNAP

M4

1шт.

8

100-21550

SNAP RING,5.50", Int, #550

2шт.

9

87432424

OIL SEAL

Pinion Input Shaft

1шт.

10

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

11

228968A2

SPACER

Thick

1шт.

12

191713A1

SPACER

Thin

1шт.

13

191709A1

SHIM,0.076mm Thk

1шт.

13

191711A1

SHIM,0.101mm Thk

1шт.

13

191712A1

SHIM,0.130mm Thk

1шт.

13

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

14

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

15

284186A1

SEAL,88.9mm ID x 146.15mm OD x 10mm Thk

1шт.

16

238-5276

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

1шт.

17

284180A1

PIPE

Lubrication

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Illustrated

2шт.

19

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

19

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

19

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

19

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

20

87659899

YOKE

9C, Sliding

1шт.

21

221578A1

PLUG,M18 x 1.5 ORB

Incl 23

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

24

86985636

ELBOW

Orificed, 5/16 x 3/8, Incl 26

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

27

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

28

553-102

PLUG,M18 x 1.5, ORB, Plastic

1шт.

29

417271A1

BRACKET

Hose, Wheeled Only

1шт.

30

87306552

BRACKET

1шт.

Выбрано товаров: 36
