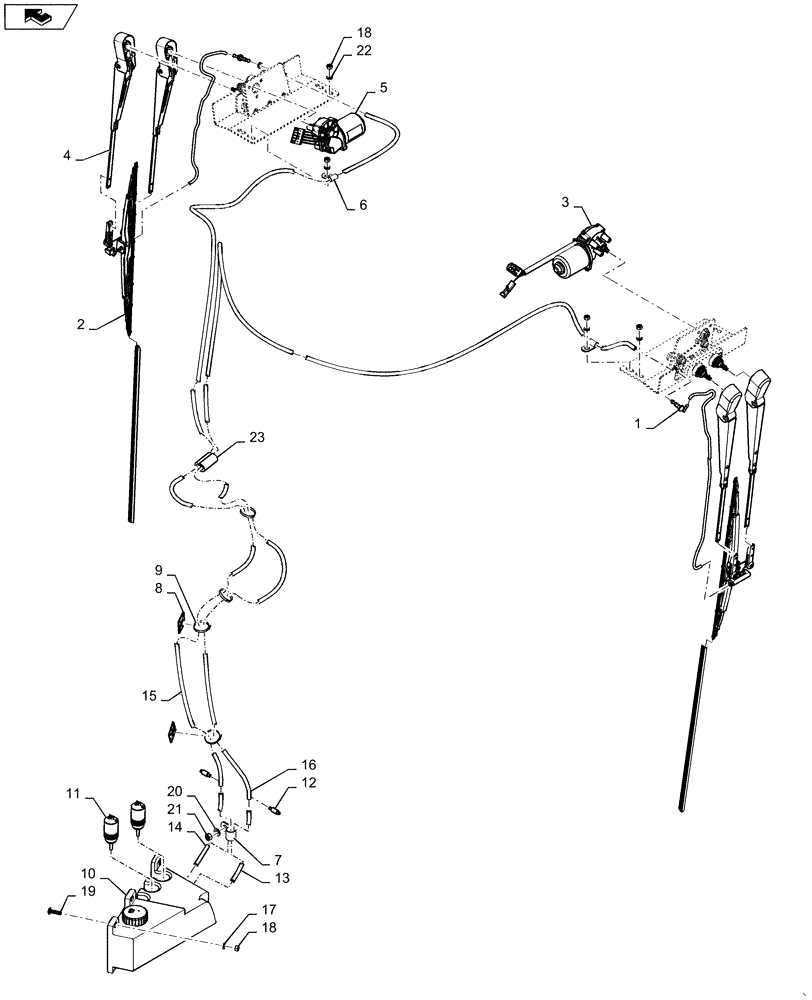

Запчасти Case IH QUADTRAC 600 (55.518.03) - WIPERS - STANDARD FRONT, REAR, RESERVOIR, & PLUMBING - QUADTRAC (55) - ELECTRICAL SYSTEMS

1

84369351

ELBOW,90 Degree

Washer Bulkhead

2шт.

2

84211825

WIPER BLADE

22 Inch, Front and Rear

2шт.

3

84308841

WIPER MOTOR

Roof, Front

1шт.

4

84211824

WIPER ARM,Dual, 500mm L

20 Inch, Front and Rear

2шт.

5

84308846

WIPER MOTOR,12V

Roof, Rear

1шт.

6

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

7

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

8

22-823

MOUNT

Mount

2шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

4шт.

10

84312251

RESERVOIR, WINDSHIEL

1шт.

11

1964696C2

PUMP

Washer, 12V, Serial Range: -ZEF300606

2шт.

11

47626001

PUMP

Washer, 24V, Start Serial: ZEF400081

2шт.

12

84037530

VALVE

2шт.

13

04-1056T1

HOSE

Bulk Washer, Cut To 8"

1шт.

14

31-2422

HOSE,4.77 mm ID x 254.00 mm

Bulk Washer, Cut To 10"

1шт.

15

31-2916

HOSE,4.78 mm ID x 4470.40 mm

Bulk Washer

1шт.

16

04-1056T1

HOSE

Bulk Washer, Cut To 222"

1шт.

17

892-11008

LOCK WASHER,8mm ID

6шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

14шт.

19

811-8035

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 35mm, Cl 8.8

6шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

23

356717A1

TAPE

Foam

1шт.

24

47615828

COVER

Foam And Plate Washer

1шт.
