Запчасти Case IH QUADTRAC 600 (48.138.03[01]) - ROLLER, ASSY - ARCTIC VERSION (48) - TRACKS & TRACK SUSPENSION

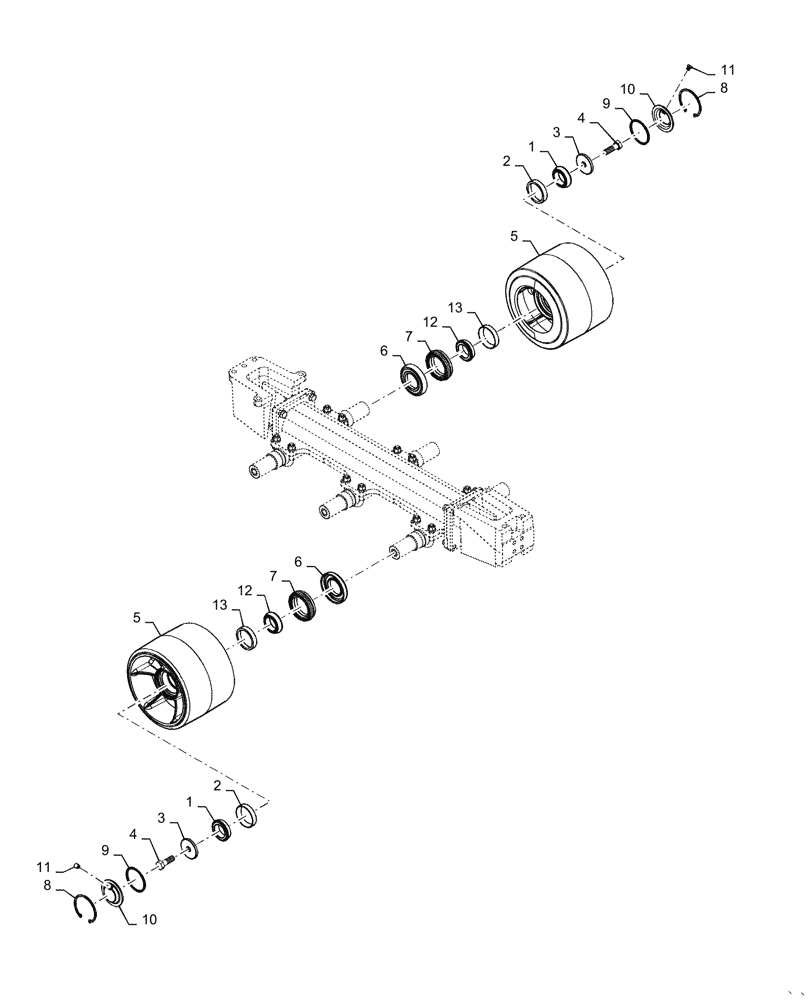

Схема запчастей Case IH QUADTRAC 600 - (48.138.03[01]) - ROLLER, ASSY - ARCTIC VERSION (48) - TRACKS & TRACK SUSPENSION
1
2
1
12
9
4
10
7
7
11
6
4
5
2
12
13
8
5
3
13
3
11
8
6
10
9

Артикул

Название

Примечание

Количество

1

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

6шт.

2

625743C1

BEARING CUP,90mm OD x 18.5mm W

6шт.

3

87387720

RETAINER

Bearing

6шт.

4

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

6шт.

5

47972660

ROLLER

Wheel Assy

6шт.

6

84223194

CUP,65.93mm ID x 125mm OD x 12.15mm Thk

Roller Seal

6шт.

7

47481786

SEAL

Arctic Roller

6шт.

8

301652

SNAP RING,M110 x 4mm, Internal

6шт.

9

86984140

O-RING,97mm ID x 6.99mm Thk

6шт.

10

87404689

CAP

Roller Cover

6шт.

11

246406A1

PLUG,M12 x 1.5 ORB

6шт.

12

529207R91

BEARING ASSY,54.99mm ID x 29mm W

6шт.

13

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

6шт.

Выбрано товаров: 13
