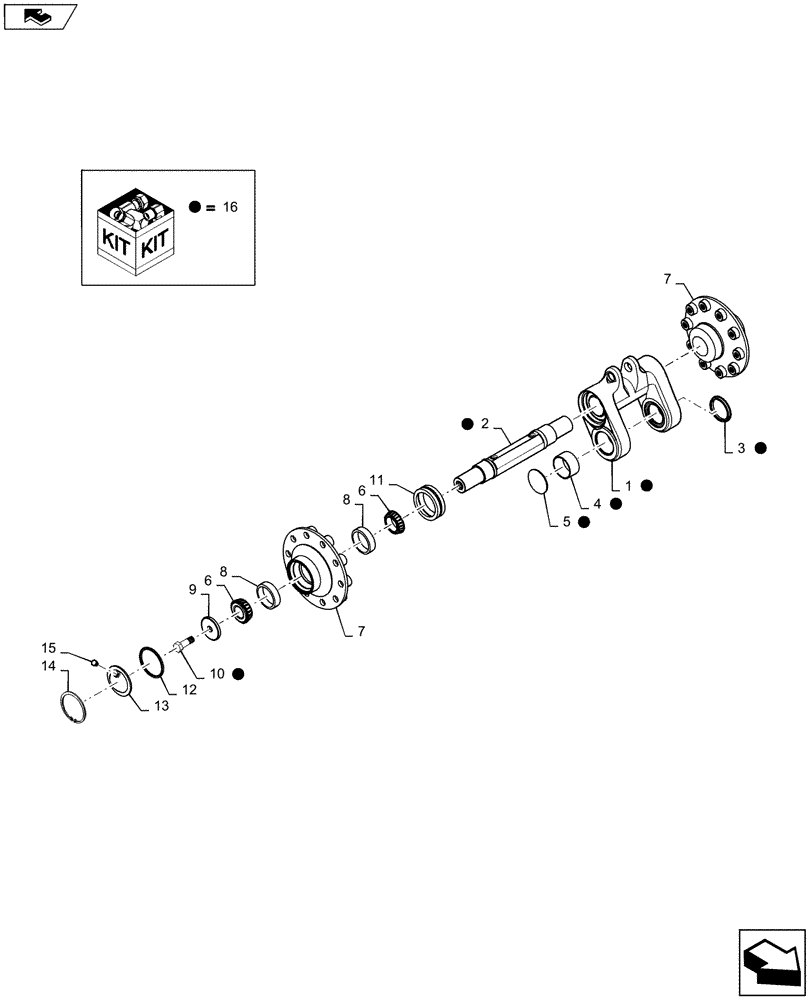

Запчасти Case IH QUADTRAC 600 (48.134.02) - FRONT IDLER AXLE - AG VERSION (48) - TRACKS & TRACK SUSPENSION

1

NSS

NOT SOLD SEPARAT

PIVOT, Front Idler, Incl in 16

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT, Front Idler, Incl in 16

1шт.

3

87451047

SEAL,87.38mm ID x 101.96mm OD x 12mm Thk

Mount

2шт.

4

87324810

BUSHING,89.15mm ID x 95.38mm OD x 48mm L

Idler Pivot

2шт.

5

87416602

COVER,101.7mm OD

Cap

2шт.

6

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

4шт.

7

84234874

HUB

Idler

2шт.

8

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

4шт.

9

87387720

RETAINER

Bearing

2шт.

10

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60 CLN Lubed

2шт.

11

87437010

SEAL

Idler

2шт.

12

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

13

87408174

CAP

Steel Idler Hub

2шт.

13

84383314

CAP

Clear Idler Hub, Start Serial: ZCF131024

2шт.

14

800-21130

SNAP RING,M130, Int

2шт.

15

246406A1

PLUG,M12 x 1.5 ORB

Use With Steel Hub Cap

2шт.

15

86598043

PLUG,M12 x 1.5 ORB

Use With Clear Hub Cap

2шт.

16

84304872

PIVOT

Incl 1 - 5, 10

1шт.
