Запчасти Case IH QUADTRAC 600 (27.100.28) - 600 SERIES AXLE - FINAL DRIVE - QUADTRAC 550 & 600 (27) - REAR AXLE SYSTEM

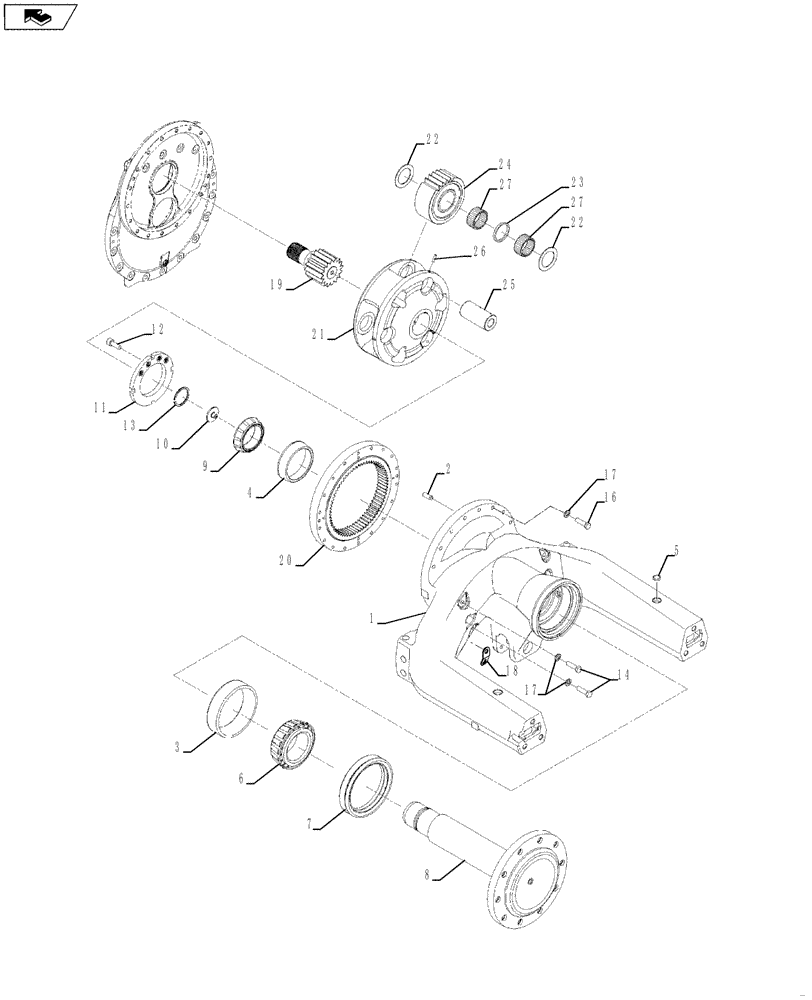

Схема запчастей Case IH QUADTRAC 600 - (27.100.28) - 600 SERIES AXLE - FINAL DRIVE - QUADTRAC 550 & 600 (27) - REAR AXLE SYSTEM
10
17
26
17
27
22
6
27
8
19
18
11
14
24
7
25
1
12
5
20
home
3
9
21
23
13
4
16
22
2

Артикул

Название

Примечание

Количество

1

87308304

AXLE CARRIER

Housing, Incl 2 - 5

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

4

64371H0

BEARING ASSY,157.16mm OD x 26.19mm W

1шт.

5

87326609

PLUG,Exp, 2"

2шт.

6

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

7

369532A2

SEAL,194mm ID x 238.76mm OD x 47mm Thk

Face

1шт.

8

87441344

SHAFT

Track Axle

1шт.

9

64370H

BEARING, ROLLER,101.6mm ID x 36.12mm W

Cone

1шт.

10

1981270C1

INSERT

Axle Wear

1шт.

11

87472512

BEARING LOCK NUT

1шт.

12

84129048

HEX SOC SCREW,FLAT, M8 x 16mm, Cl 10.9

4шт.

13

101-11350

SNAP RING,#350, Ext

1шт.

14

87301260

BOLT,Hex, M16 x 420mm, Cl 10.9

2шт.

15

87301259

BOLT,Hex, M16 x 350mm, Cl 10.9

4шт.

16

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

12шт.

17

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

18шт.

18

87306552

BRACKET

Axle

1шт.

19

360335A1

SHAFT

16 T, Sun Gear

1шт.

20

310695A1

RING GEAR,77T

77 T

1шт.

21

388366A1

PINION CARRIER

Planetary

1шт.

22

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

6шт.

23

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

3шт.

24

87738713

PLANETARY GEAR

29 T

3шт.

25

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

Gear

3шт.

26

838-3826

PIN,M8 x 26, Coiled

3шт.

27

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

198шт.

Выбрано товаров: 27
