Запчасти Case IH QUADTRAC 600 (27.100.26) - 600 SERIES AXLE - OFFSET BEARING CARRIER - QUADTRAC 550 & 600 (27) - REAR AXLE SYSTEM

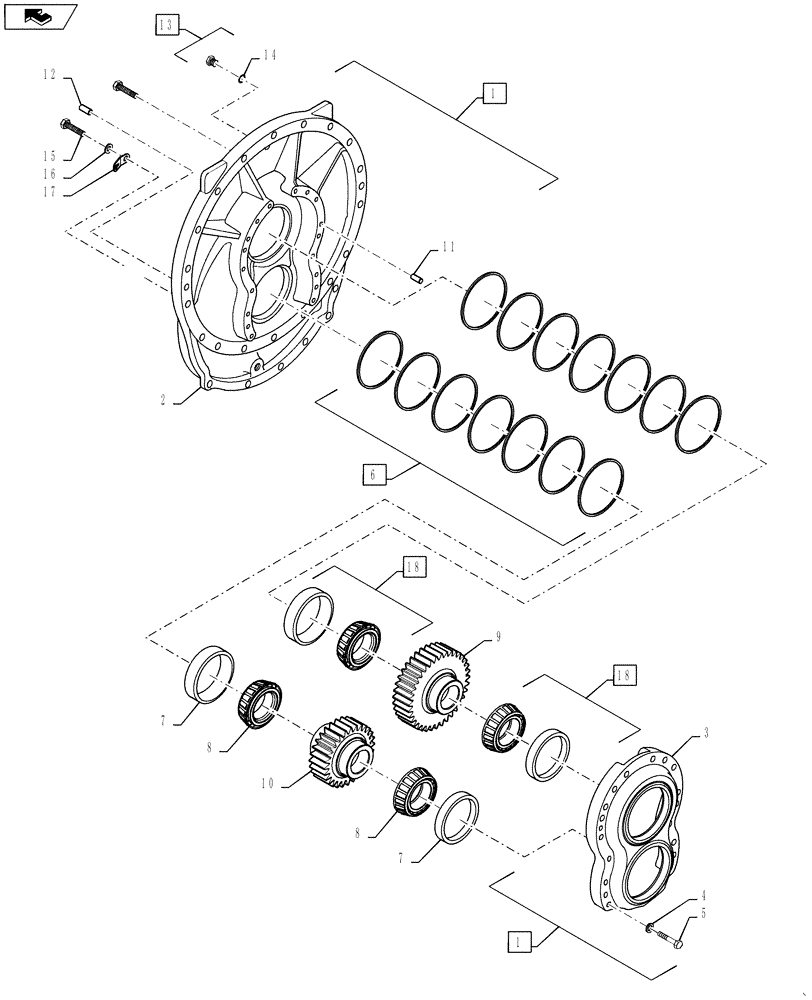

Схема запчастей Case IH QUADTRAC 600 - (27.100.26) - 600 SERIES AXLE - OFFSET BEARING CARRIER - QUADTRAC 550 & 600 (27) - REAR AXLE SYSTEM
7
1
14
home
5
8
9
15
1
10
2
16
7
3
8
6
13
4
17
11
12
18
18

Артикул

Название

Примечание

Количество

1

84412146

BEARING CARRIER

Offset Bearing, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Carrier, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

4

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

5

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

16шт.

6

84422661

SHIM

2.000

1шт.

6

84422662

SHIM,152.5mm ID x 166mm OD x 2.1mm Thk

2.100

1шт.

6

84412638

SHIM,152.5mm ID x 166mm OD x 2.2mm Thk

2.200

1шт.

6

84412639

SHIM,152.5mm ID x 166mm OD x 2.3mm Thk

2.300

1шт.

6

84412641

SHIM,152.5mm ID x 166mm OD x 2.4mm Thk

2.400

1шт.

6

84412642

SHIM,152.5mm ID x 166mm OD x 2.5mm Thk

2.500

1шт.

6

84412643

SHIM,152.5mm ID x 166mm OD x 2.6mm Thk

2.600

1шт.

6

84412644

SHIM,152.5mm ID x 166mm OD x 2.7mm Thk

2.700

1шт.

6

84412645

SHIM,152.5mm ID x 166mm OD x 2.8mm Thk

2.800

1шт.

7

NSS

NOT SOLD SEPARAT

P/N 84412681 Cone, Incl in 18

4шт.

8

NSS

NOT SOLD SEPARAT

P/N 84412473 Cup, Incl in 18

4шт.

9

84412166

DRIVING GEAR

Drive, 36 T

1шт.

10

84412167

DRIVING GEAR

Driven, 27 T

1шт.

11

837-12035

DOWEL,M12 x 35

2шт.

12

837-16040

DOWEL,M16 x 40

2шт.

13

221578A1

PLUG,M18 x 1.5 ORB

Incl 14

1шт.

14

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

15

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

16шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

17

87306552

BRACKET

Axle

1шт.

18

84412474

FLANGED BEARING,95.25mm ID x 168.28mm OD x 41.27mm W

Cup & Cone, Incl 7, 8

4шт.

Выбрано товаров: 26
