Запчасти Case IH QUADTRAC 600 (27.100.20) - 600 SERIES AXLE - REAR COVER - STEIGER 550HD & 600, QUADTRAC 550 & 600 (27) - REAR AXLE SYSTEM

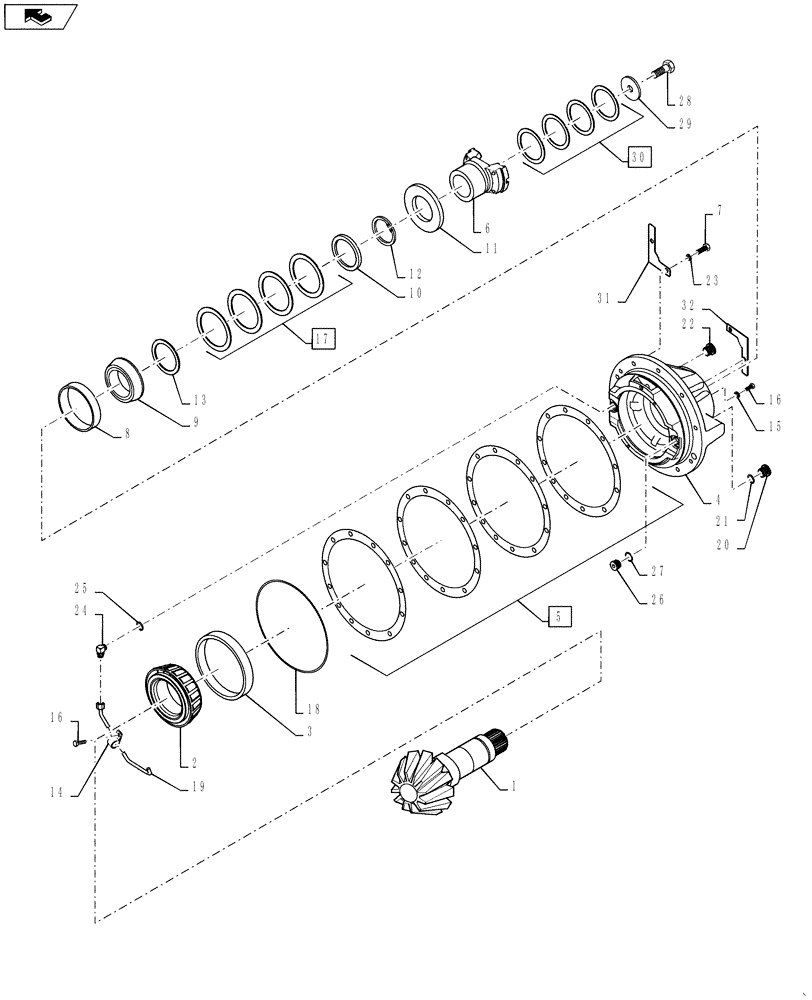

Схема запчастей Case IH QUADTRAC 600 - (27.100.20) - 600 SERIES AXLE - REAR COVER - STEIGER 550HD & 600, QUADTRAC 550 & 600 (27) - REAR AXLE SYSTEM
6
14
16
31
29
24
23
13
2
16
9
18
8
19
11
32
17
4
22
21
25
12
home
3
28
10
26
7
27
15
5
1
20
30

Артикул

Название

Примечание

Количество

1

87522604

GEAR SET

Pinion Shaft and Gears, Rear Axle Cover, (Pinion Gear Not Shown)

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

328422A5

COVER

Rear Axle

1шт.

5

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

5

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

5

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

5

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

6

87659900

YOKE

9C, Fixed

1шт.

7

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

8

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

9

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

10

228968A2

SPACER

Thick

1шт.

11

87432424

OIL SEAL

1шт.

12

229515A2

RING, SNAP

M4

1шт.

13

191713A1

SPACER

Thin

1шт.

14

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

(M7.9)

1шт.

15

95-31038

WASHER,5/16"

3шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

191709A1

SHIM,0.076mm Thk

1шт.

17

191711A1

SHIM,0.101mm Thk

1шт.

17

191712A1

SHIM,0.130mm Thk

1шт.

17

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

18

238-5276

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

1шт.

19

313377A1

PIPE

Lubrication

1шт.

20

221578A1

PLUG,M18 x 1.5 ORB

Incl. 21

1шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

553-102

PLUG,M18 x 1.5, ORB, Plastic

1шт.

23

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

24

86985636

ELBOW

Orificed, 5/16 x 3/8, Inc. 26

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

218-5209

PLUG,Hex, 9/16"-18 ORB

Inc. 28

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.

29

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

1шт.

30

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

30

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

30

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

30

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.

31

417271A1

BRACKET

Hose, Wheeled Only

1шт.

32

87306552

BRACKET

1шт.

1

87522604

GEAR SET

Pinion Shaft and Gears, Rear Axle Cover, (Pinion Gear Not Shown)

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

328422A5

COVER

Rear Axle

1шт.

5

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

5

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

5

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

5

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

6

87659900

YOKE

9C, Fixed

1шт.

7

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

8

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

9

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

10

228968A2

SPACER

Thick

1шт.

11

87432424

OIL SEAL

1шт.

12

229515A2

RING, SNAP

M4

1шт.

13

191713A1

SPACER

Thin

1шт.

14

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

(M7.9)

1шт.

15

95-31038

WASHER,5/16"

3шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

191709A1

SHIM,0.076mm Thk

1шт.

17

191711A1

SHIM,0.101mm Thk

1шт.

17

191712A1

SHIM,0.130mm Thk

1шт.

17

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

18

238-5276

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

1шт.

19

313377A1

PIPE

Lubrication

1шт.

20

221578A1

PLUG,M18 x 1.5 ORB

Incl 21

1шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

553-102

PLUG,M18 x 1.5, ORB, Plastic

1шт.

23

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

24

86985636

ELBOW

Orificed, 5/16 x 3/8, Incl 26

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

218-5209

PLUG,Hex, 9/16"-18 ORB

Incl 28

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.

29

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

1шт.

30

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

30

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

30

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

30

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.

31

417271A1

BRACKET

Hose, Wheeled Only

1шт.

32

87306552

BRACKET

1шт.

Выбрано товаров: 82
