Запчасти Case IH QUADTRAC 580 (14.100.AR[04]) - VAR - 420601 - PARALLEL FLOW HYDRAULIC PUMP DRIVE, PTO CLUTCH, W/ PTO (14) - MAIN GEARBOX & DRIVE

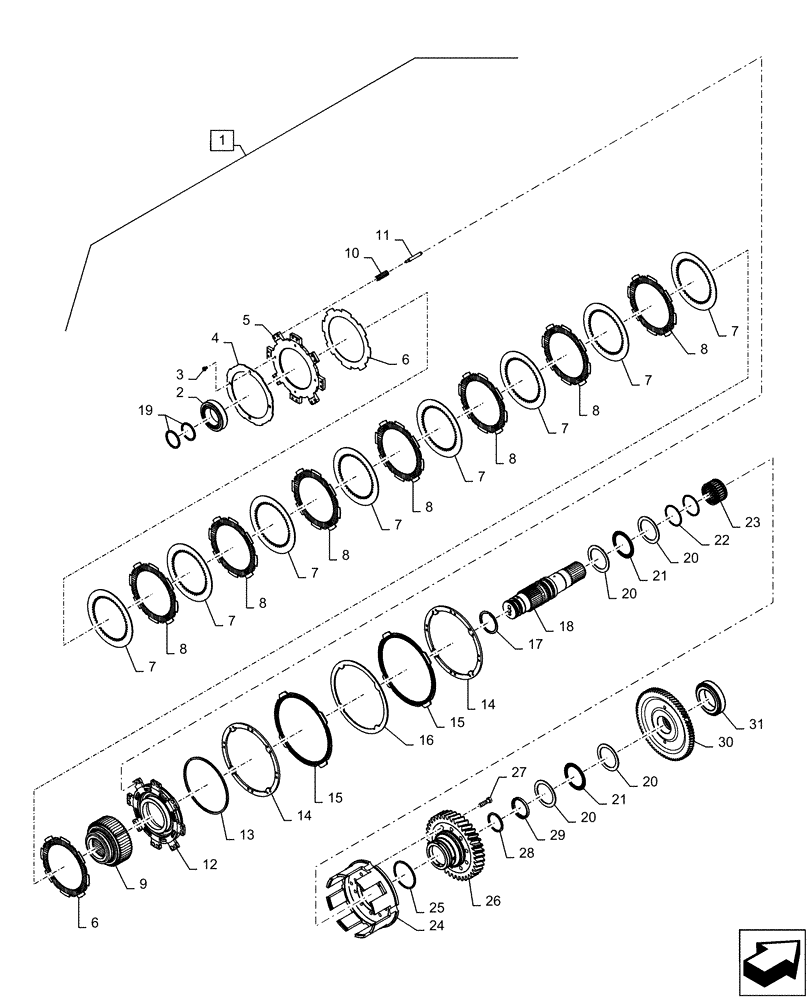

Схема запчастей Case IH QUADTRAC 580 - (14.100.AR[04]) - VAR - 420601 - PARALLEL FLOW HYDRAULIC PUMP DRIVE, PTO CLUTCH, W/ PTO (14) - MAIN GEARBOX & DRIVE
4
8
16
26
8
8
1
2
29
7
8
20
6
7
7
22
14
7
25
7
7
8
13
10
5
20
20
20
8
24
9
3
30
28
23
18
27
6
17
8
11
19
14
21
7
7
15
12
15
31
21

Артикул

Название

Примечание

Количество

1

84315795

SHAFT

Assembly, PTO Drive, Incl 2 - 31

1шт.

2

S8730S00F

TAPERED BEARING,55mm ID x 90mm OD x 23mm W

PTO Drive

1шт.

3

375523A1

BOLT

PTO Drive

4шт.

4

375525A1

PLATE

PTO Retaining

1шт.

5

375527A1

PLATE

Clutch End

1шт.

6

375528A1

CLUTCH DISC

7", Faced

2шт.

7

S2080S00F

CLUTCH DISC,2.4mm Thk

Flat Steel, 2.40mm Thick

8шт.

8

375529A1

CLUTCH DISC

7", Faced

7шт.

9

84315809

HUB

PTO Clutch

1шт.

10

375531A1

COIL SPRING

PTO Brake Return

16шт.

11

375532A1

PIN

Spring Guide

16шт.

12

375533A1

PISTON

PTO Clutch

1шт.

13

352834A1

RING

Seal

1шт.

14

375534A1

BRAKE PLATE

PTO, Steel, 3.20mm Thick

2шт.

15

375535A1

BRAKE PLATE

PTO, Faced

2шт.

16

375536A1

BRAKE PLATE

PTO, Steel

1шт.

17

S2240S00F

RING, SNAP

Retaining

1шт.

18

84315811

SHAFT

PTO Input

1шт.

19

S3070S00F

RING

Seal

2шт.

20

S2220S00F

THRUST WASHER

PTO Drive

4шт.

21

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

22

375541A1

SEALING RING

PTO Drive

2шт.

23

375543A1

NEEDLE BEARING

PTO Drive

1шт.

24

375538A1

DRUM

PTO Clutch

1шт.

25

S5510S00F

RING

Seal

1шт.

26

84315814

GEAR

PTO Drive

1шт.

27

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

10шт.

28

84315816

RING

Retaining

1шт.

29

84315817

WASHER,20mm ID x 30mm OD x 3mm Thk

Retaining

1шт.

30

84315818

GEAR

Pump Drive

1шт.

31

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

PTO Drive

1шт.

Выбрано товаров: 31
