Запчасти Case IH QUADTRAC 580 (10.500.AD[05]) - DEF/ADBLUE™ TANK, HEATER LINES, 540, 580, 620 (10) - ENGINE

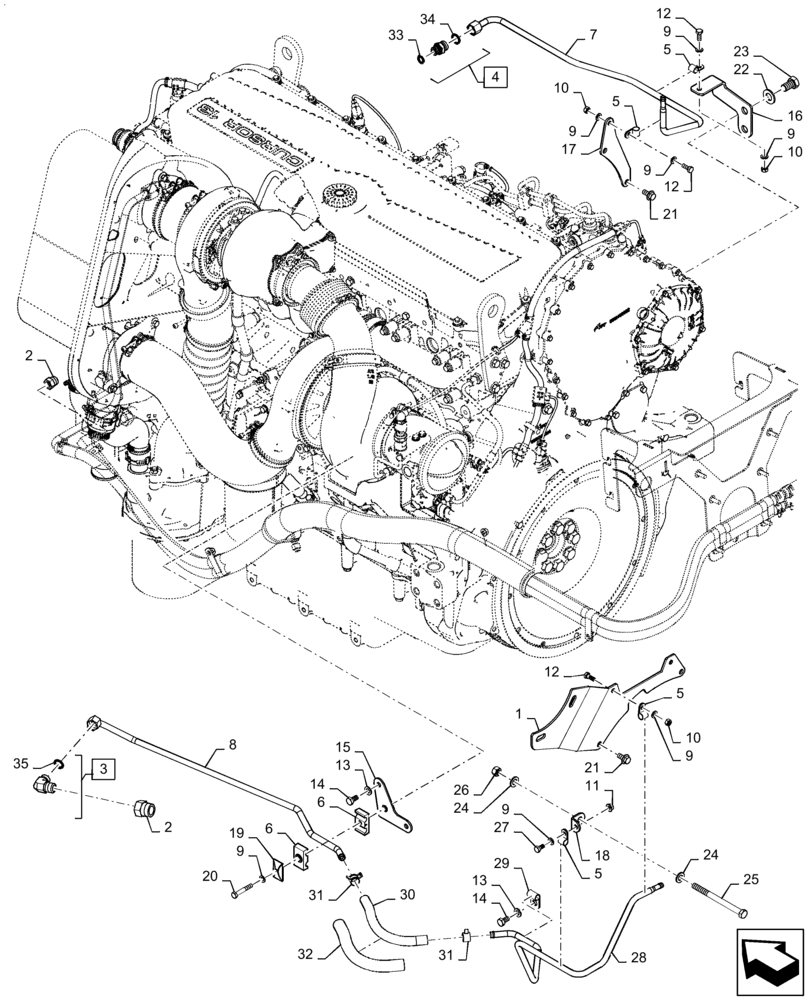

Схема запчастей Case IH QUADTRAC 580 - (10.500.AD[05]) - DEF/ADBLUE™ TANK, HEATER LINES, 540, 580, 620 (10) - ENGINE
16
12
5
9
28
21
19
2
1
31
31
7
13
32
18
12
20
35
6
14
8
26
34
9
5
33
22
25
2
13
9
10
15
9
5
10
23
21
9
11
14
24
29
17
27
10
9
24
4
3
5
12
6
30
9

Артикул

Название

Примечание

Количество

1

47450687

BRACKET

Tube Support

1шт.

2

47361209

ADAPTER

1/2" - 14 NPT x M30 - 1.5 JIC

2шт.

3

84533151

ELBOW,1/2-14

13/16" - 16 ORFS x 1/2" - 14 NPTF, Incl 35

1шт.

4

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

M18 x 1.5 ORB x 13/16" - 16 ORFS, Incl 33 - 34

1шт.

5

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

5шт.

6

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

Tube

1шт.

7

47408432

HEATER TUBE

SCR Heater Supply

1шт.

8

47599653

TUBE

SCR Heater Return

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

11

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

14

628-10018

BOLT,Hex, M10 x 1.5 x 18mm, Cl 10.9, Full Thd

3шт.

15

47436695

BRACKET

Support

1шт.

16

47408643

BRACKET

Tube Support

1шт.

17

47489404

BRACKET

Tube Support

1шт.

18

47409497

BRACKET

Tube Support

1шт.

19

50-2532T1

PLATE

Cover

1шт.

20

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

21

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

22

895-15016

WASHER,M16 x 34 x 3

2шт.

23

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

24

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

25

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

1шт.

26

829-1412

NUT,M12, Cl 10.9

1шт.

27

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

28

47436530

HEATER TUBE

SCR Heater Return

1шт.

29

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

30

226084A1

HOSE, BULK

Heater

1шт.

31

87019540

CLAMP,17.8mm - 20.2mm

Hose, 19mm

2шт.

32

47439223

PROTECTIVE SLEEVE

Heat

1шт.

33

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

34

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

Oring

1шт.

35

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Выбрано товаров: 35
