Запчасти Case IH QUADTRAC 580 (10.500.AD[01]) - DEF/ADBLUE LINES, BSN ZEF303000 (10) - ENGINE

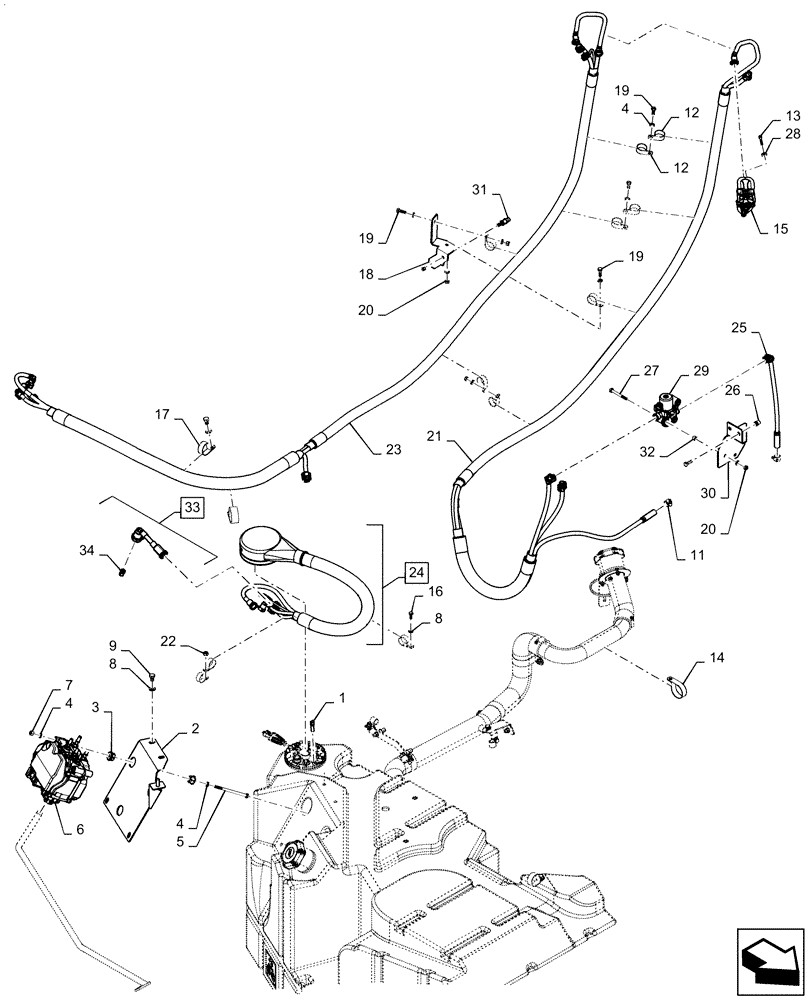

Схема запчастей Case IH QUADTRAC 580 - (10.500.AD[01]) - DEF/ADBLUE LINES, BSN ZEF303000 (10) - ENGINE
24
13
17
3
18
26
19
8
9
23
12
34
19
16
5
14
11
4
32
1
4
2
30
22
8
21
31
7
4
20
6
25
20
33
27
28
29
12
19
15

Артикул

Название

Примечание

Количество

1

84208502

PLUG,10mm OD x 42.4mm L

DEF Tank

1шт.

2

47397294

BRACKET

DEF Supply Module

1шт.

3

2855150

INSULATOR BLOCK

Rubber

6шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

21шт.

5

814-8130

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

3шт.

6

47565939

ECU

Denox Supply Module

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

9

87547661

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

5шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

1шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

12

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

10шт.

13

120162

HEX SOC SCREW,M6 x 35mm, Cl 8.8

3шт.

14

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

15

47506948

INJECTOR, EMISSIONS

DEF

1шт.

15

47506948R

REMAN-INJEC EMISSION

DEF

1шт.

15

47506948C

CORE-INJEC EMISSION

Return Number

1шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

17

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

7шт.

18

47412672

BRACKET

DEF Hose Bundle

1шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

21

47389330

CONDUIT

DEF Hose Bundle, From Heater Valve To DOC

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

23

47572061

CONDUIT

DEF Hose Bundle, From Supply Module To DOC

1шт.

24

47572057

CONDUIT

DEF Hose Bundle, From DEF Tank To Supply Module, Incl 33

1шт.

25

84556636

HOSE

DEF Heat

1шт.

26

408566A1

INSERT,M8

Threaded, M8

2шт.

27

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

29

84483089

HEATER,12V

Valve

1шт.

30

47557270

BRACKET

Heater Valve

1шт.

31

426285A1

STUD

Threaded, M8

2шт.

32

87747804

SPACER

9mm x 13mm x 8mm

3шт.

33

84263625

HOSE ASSY.

DEF Inline Filter Assembly, Incl 34

1шт.

34

84367903

FILTER

DEF Inline Mesh Filter

1шт.

Выбрано товаров: 36
