Запчасти Case IH QUADTRAC 580 (10.210.AF[01]) - FUEL LINE (10) - ENGINE

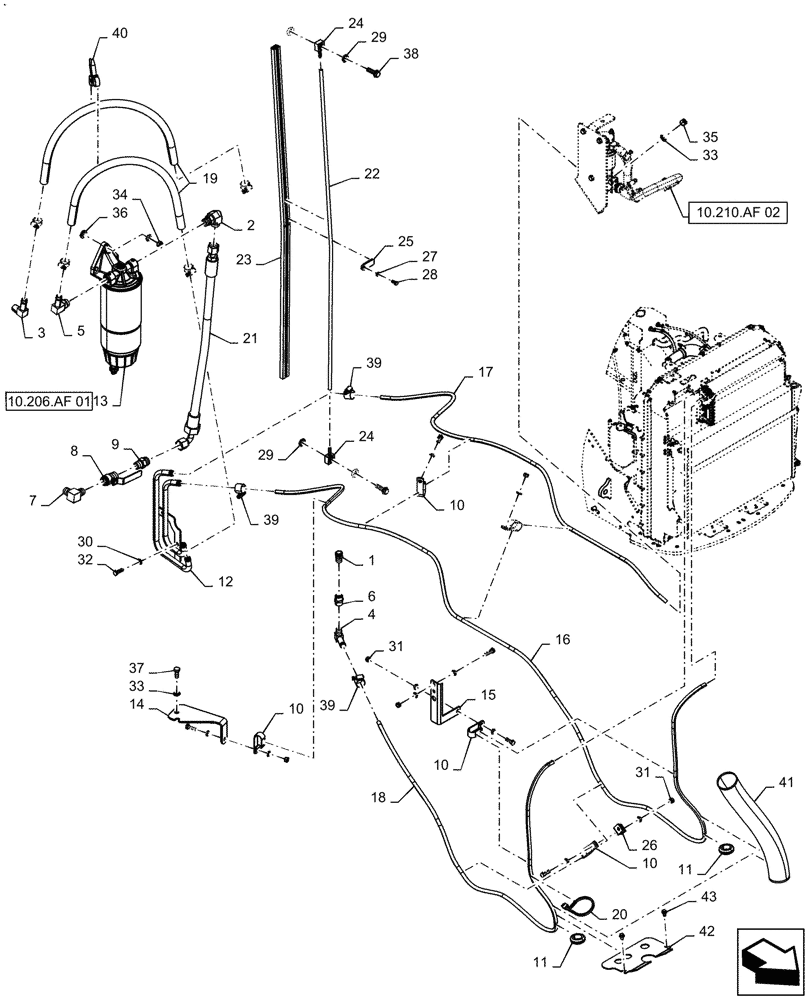

Схема запчастей Case IH QUADTRAC 580 - (10.210.AF[01]) - FUEL LINE (10) - ENGINE
10.206.af 01
10
20
28
18
2
27
16
10
31
11
43
36
34
3
14
39
13
41
39
32
22
10
5
29
42
17
31
12
33
19
26
11
7
40
23
38
9
1
24
15
6
29
39
10
4
8
33
24
30
37
21
25
35
10.210.af 02

Артикул

Название

Примечание

Количество

1

84308826

ADAPTER

Male, 12L x 3/8" NPTF

1шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

3

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

4

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

4шт.

5

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

1шт.

6

217-1102

HYD CONNECTOR,3/8" - 18 NPTF x 3/8" - 18 NPTF

1шт.

7

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

8

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Valve Ball

1шт.

9

84319917

HYD CONNECTOR,1/2"-14 NPTF x 1"-14 ORFS

1шт.

10

R54363

CLAMP

Double Tube

10шт.

11

248-2181

GROMMET,1" ID x 3/8" Groove Dia

2шт.

12

84381091

FUEL TUBE

Fuel Line

1шт.

13

84402581

FUEL FILTER

Assembly

1шт.

14

84359545

BRACKET, SUPPORTING

Fuel Line Support

1шт.

15

47537831

BRACKET

Fuel Line Support

1шт.

16

84602093

FUEL HOSE,16mm ID x 3696mm L

1шт.

17

47454771

FUEL HOSE

5/8" OD x 6604" L

1шт.

18

87494972

FUEL HOSE

5/8" OD x 3429" L

1шт.

19

84197929

FUEL HOSE,15.9mm ID x 723.9mm L

2шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

Tie Hose

1шт.

21

84402597

HOSE ASSY.

Fuel Supply

1шт.

22

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

1шт.

23

349868A1

CHANNEL

Fuel Sight Gauge

1шт.

24

352767A1

FITTING

Sight Gauge

2шт.

25

402800A1

BRACKET

Fuel Sight Gauge

1шт.

26

84357974

BRACKET, SUPPORTING

Fuel Hose Support

1шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

28

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

29

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

28шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

11шт.

32

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

14шт.

33

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

35

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

36

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

37

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

38

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

39

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

16шт.

40

327144A1

STRAP,328mm L

Dual Tie

1шт.

41

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

1шт.

42

48078893

Cooler Hose Seal, Start Serial: ZHF311991

BRACKET

1шт.

43

87752076

SCREW,Hex Wash Hd, M10 x 1.5 x 16mm

, Start Serial: ZHF311991

2шт.

Выбрано товаров: 43
