Запчасти Case IH QUADTRAC 580 (90.100.AU[03]) - HOOD 20TH ANNIVERSARY EDITION (90) - PLATFORM, CAB, BODYWORK AND DECALS

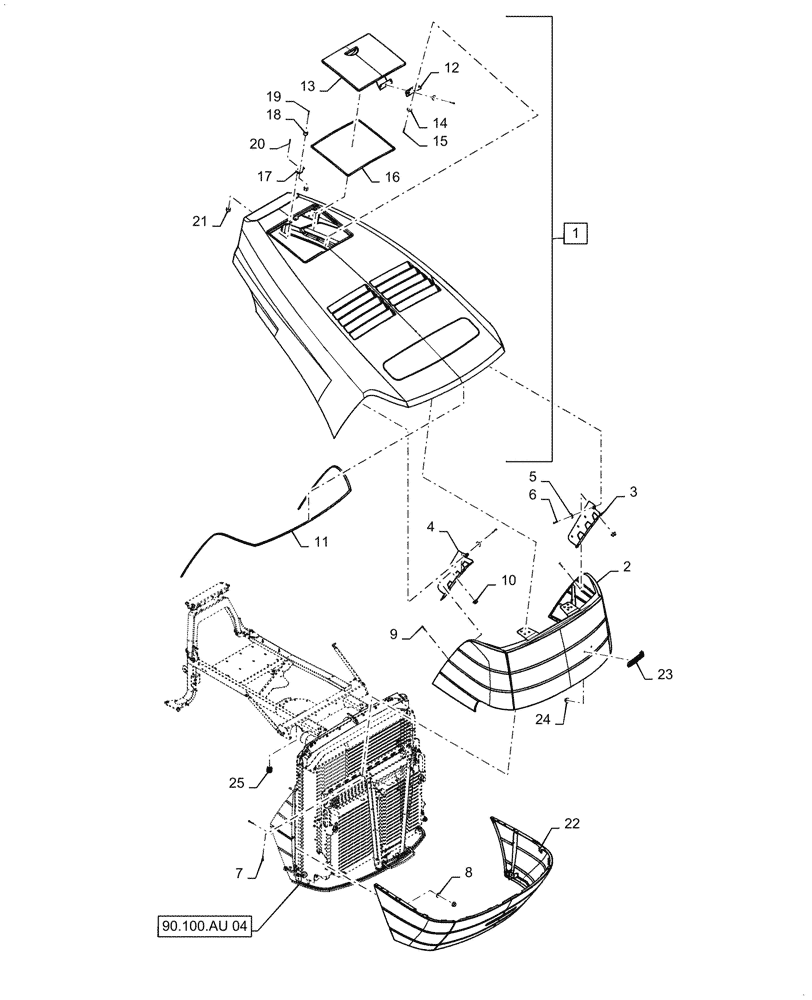

Схема запчастей Case IH QUADTRAC 580 - (90.100.AU[03]) - HOOD 20TH ANNIVERSARY EDITION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.au 04
24
13
4
9
22
3
18
7
17
6
8
19
11
1
10
14
20
25
5
21
2
12
15
23
16

Артикул

Название

Примечание

Количество

1

48047855

Assy, 20th Anniversary Edition, Incl 12 - 21

HOOD

1шт.

2

47542043

GRILLE

Upper

1шт.

3

47675248

BRACKET

LH

1шт.

4

47675247

BRACKET

RH

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

6

47456376

HEX SOC SCREW

M8 x 25mm L, Cl 10.9

8шт.

7

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

8шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

16шт.

9

847-3616

SERRATED SCREW,Sl Truss, M6 x 16mm, Cl 10.9

8шт.

10

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

8шт.

11

47388803

SEAL

Upper Grille

1шт.

12

87738661

FIXED HINGE

Flat

1шт.

13

48047840

Access Panel

COVER

1шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

16

87738755

FOAM,15mm W x 2100mm L x 6mm Thk

1шт.

17

84414131

SECURING STRAP

Latch

1шт.

18

84414133

LATCH

Hood Access Cover

1шт.

19

84364039

SCREW,Phil Flat Hd, Csk, M5 x 16mm, Cl 4.8

1шт.

20

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

21

832-10405

NUT,M5 x .8, Cl 8

3шт.

22

47566300

GRILLE

Lower

1шт.

23

87716230

EMBLEM

CASE IH

1шт.

24

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

25

295004A1

PLUG

1шт.

Выбрано товаров: 25
