Запчасти Case IH QUADTRAC 580 (50.200.BY[04]) - AIR CONDITIONER LINE, 540, 580, 620, BTWN ZEF303633 - ZFF308208 (50) - CAB CLIMATE CONTROL

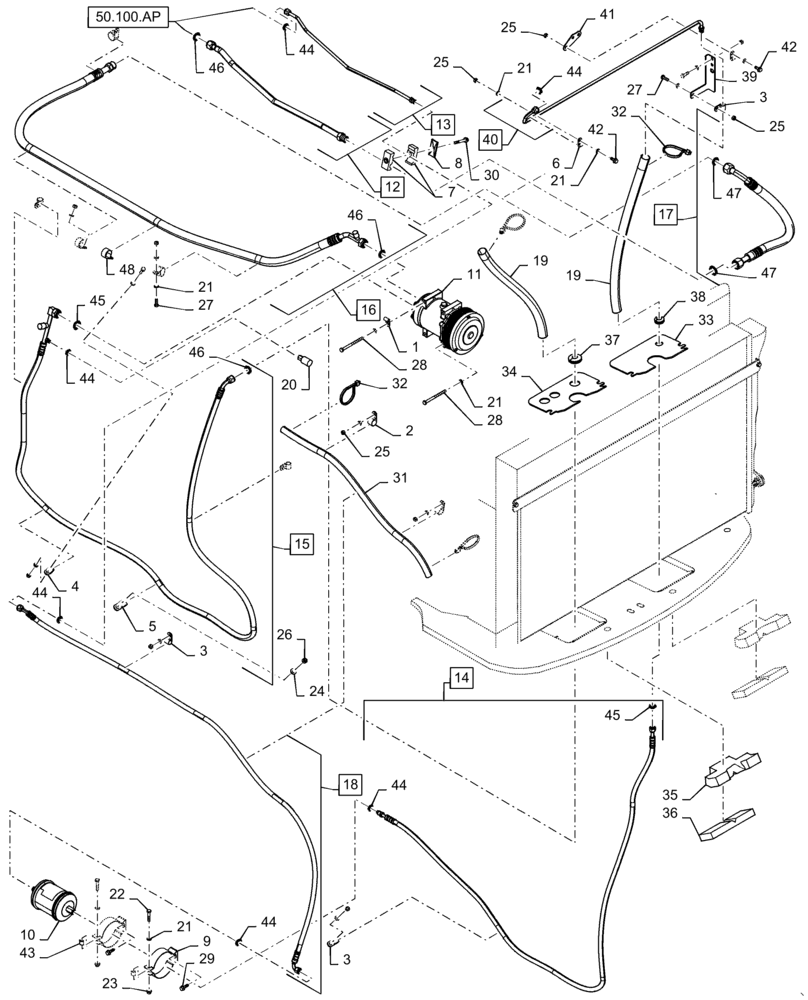

Схема запчастей Case IH QUADTRAC 580 - (50.200.BY[04]) - AIR CONDITIONER LINE, 540, 580, 620, BTWN ZEF303633 - ZFF308208 (50) - CAB CLIMATE CONTROL
36
21
26
41
16
21
29
47
37
25
17
25
44
38
12
27
25
44
3
33
14
45
43
2
30
44
46
7
42
25
10
21
34
15
46
21
45
35
3
44
11
44
21
5
42
47
9
20
24
32
13
19
3
50.100.ap
8
40
4
19
18
44
6
48
27
1
31
23
22
46
39
28
32
28

Артикул

Название

Примечание

Количество

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

2

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

2шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

5

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

6

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

7

255212A1

CLAMP

Hydraulic Tube

1шт.

8

50-2532T1

PLATE

Cover

1шт.

9

433723A1

CLAMP

Bracket. Receiver/Dryer

2шт.

10

47821526

RECEIVER-DRYER

Reservoir

1шт.

11

86993463

AIRCOND. COMPRESSOR

Compressor

1шт.

11

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

11

86993463R

REMAN-A/C COMPRESSOR

Reman for New PN 86993463

1шт.

11

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

12

47695011

TUBE

Return To Cab, Incl 46

1шт.

13

84376593

TUBE

Supply To Cab, Incl 44

1шт.

14

47463690

HOSE

Condensor To Dryer, Incl 44, 45

1шт.

15

47463689

HOSE

Compressor To Condensor, Incl 44 - 46, Serial Range: -ZHF311990

1шт.

15

48069751

Compressor To Condensor, Incl 44 - 46, Start Serial: ZHF311991

A/C HOSE

1шт.

16

47695626

HOSE

Evaporator To Compressor Frame, Incl 46

1шт.

17

47695625

HOSE

Evaporator To Compressor Cab, Incl 47

1шт.

18

84481308

HOSE ASSY.,8mm ID x 2175mm L

Dryer To Evaporator, Incl 44

1шт.

19

86024081

LOOM

Protective Sleeve

2шт.

20

284273A2

SWITCH, A/C HIGH PRE

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

27шт.

22

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

23

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

24

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

16шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

28

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

29

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

30

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

31

47395525

PROTECTIVE SLEEVE

Heat

1шт.

32

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

33

47533206

BRACKET

Cooler Hose Seal Support

1шт.

34

47533205

BRACKET

Cooler Hose Seal

1шт.

35

47537391

SEAL

Foam Cooler Plumbing

2шт.

36

47534230

SEAL

Foam Cooler Plumbing

2шт.

37

248-23108

GROMMET,3/4" ID x 1 7/16" Groove Dia, Str Cut

Rubber

1шт.

38

248-13106

GROMMET,11/16" ID x 1" Groove Dia, Str Cut

Rubber

1шт.

39

47537831

BRACKET

Fuel Line Support

1шт.

40

47463695

TUBE

Condensor To Dryer, Incl 44

1шт.

41

47463700

BRACKET

Tube Support

1шт.

42

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

43

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

3/8" Xpipe - .562"

2шт.

44

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

6шт.

45

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

46

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

3шт.

47

47702787

O-RING

2шт.

48

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

5шт.

Выбрано товаров: 52
