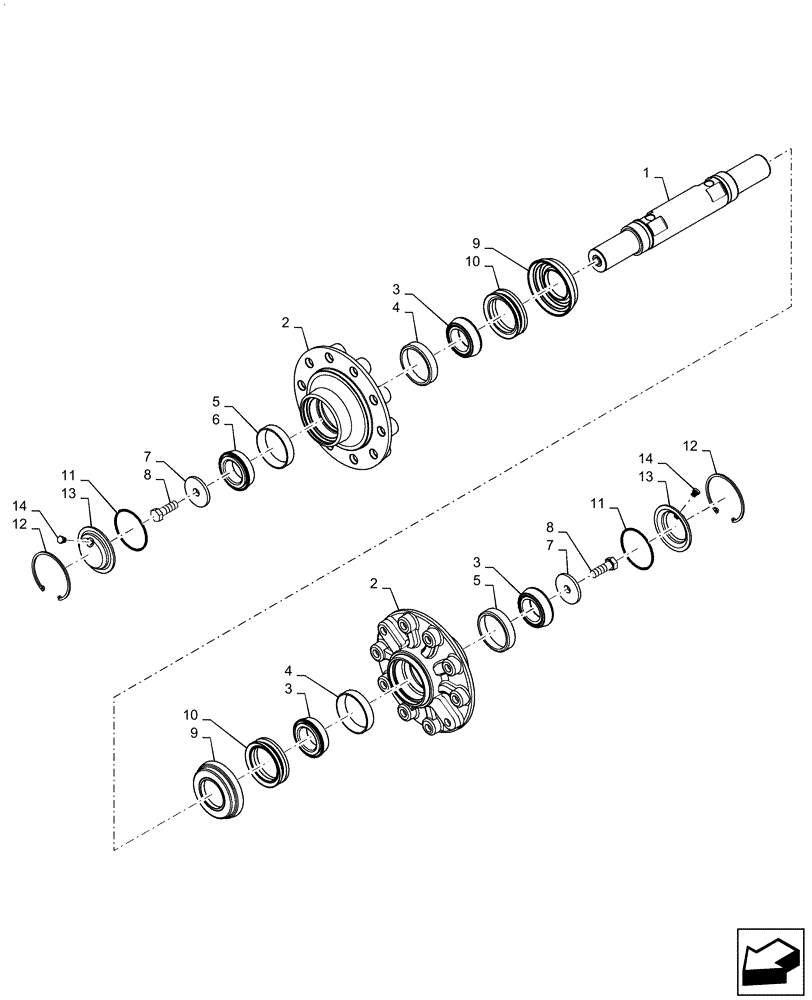

Запчасти Case IH QUADTRAC 580 (48.138.AB[14]) - AXLE ASSY, REAR IDLER, SCRAPER VERSION (48) - TRACKS & TRACK SUSPENSION

1

84202392

IDLE SHAFT

Rear

1шт.

2

84272488

HUB

Idler

2шт.

3

87750406

BEARING CONE,66.68mm ID x 38.35mm W

Bore 66.6mm Width 38.3mm

2шт.

4

87750407

BEARING CUP,122.24mm OD x 29.72mm W

OD 122.2mm Width 29.7mm

2шт.

5

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

Bore 112.7mm Width 23.8mm

2шт.

6

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

2шт.

7

87387720

RETAINER

ID 78.0mm OD 82.0mm

2шт.

8

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60mm

2шт.

9

84223192

CUP

ID 83.48mm OD 154mm

2шт.

10

84198542

SEAL,96mm ID x 125.35mm OD x 33mm W

Bore 125.3mm ID 96mm

2шт.

11

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

12

370014

SNAP RING,M130, Internal

2шт.

13

47608296

COVER

Idler Clear

2шт.

14

86598043

PLUG,M12 x 1.5 ORB

2шт.
