Запчасти Case IH QUADTRAC 580 (48.138.AB[12]) - UNDERCARRIAGE ASSY, SCRAPER VERSION (48) - TRACKS & TRACK SUSPENSION

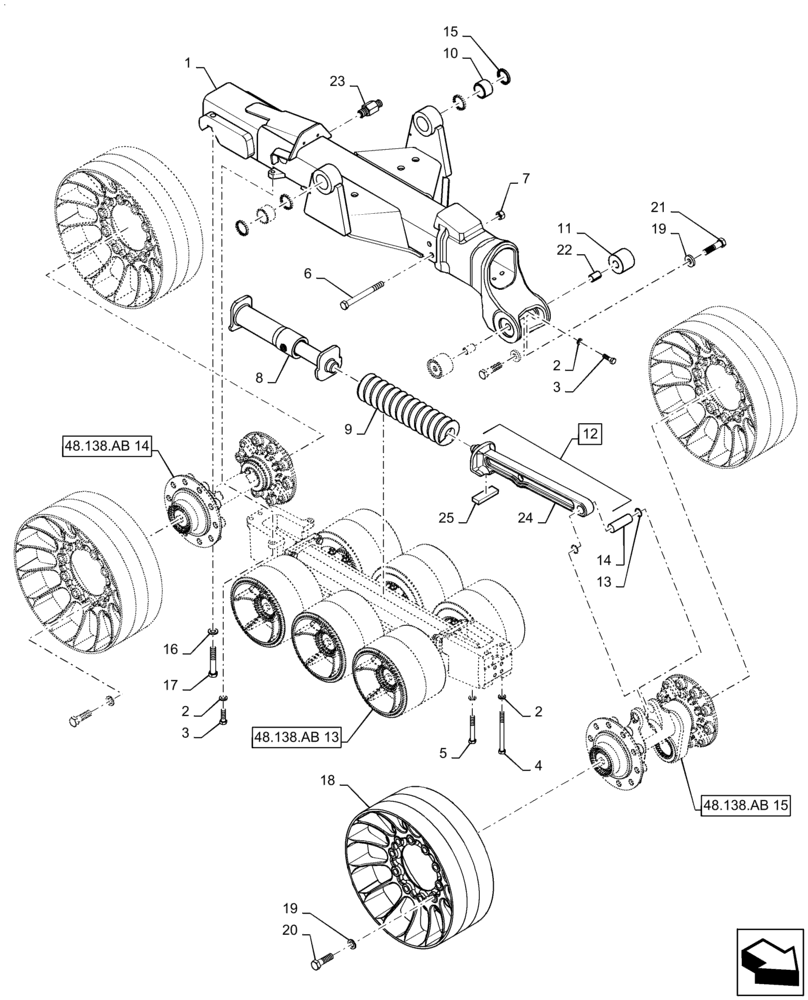

Схема запчастей Case IH QUADTRAC 580 - (48.138.AB[12]) - UNDERCARRIAGE ASSY, SCRAPER VERSION (48) - TRACKS & TRACK SUSPENSION
4
11
6
14
3
15
9
2
2
3
10
5
12
17
25
48.138.ab 14
21
24
18
13
48.138.ab 15
1
22
2
19
16
48.138.ab 13
20
8
7
23
19

Артикул

Название

Примечание

Количество

1

87326383

MOUNTING PARTS

Undercarriage

1шт.

2

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

13шт.

3

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

9шт.

4

827-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

2шт.

5

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

6

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

1шт.

7

832-46420

NUT,M20 x 2.5, Cl 8

1шт.

8

84577087

HYDRAULIC CYLINDER,Double Acting, 60mm Rod, 228mm Stroke

Undercarriage

1шт.

8

84577087R

REMAN-HYD CYLINDER

Reman Undercarriage

1шт.

8

84577087C

CORE-HYD CYLINDER

Core Return Number

1шт.

9

255729A1

SPRING

Undercarriage

1шт.

10

47595575

BUSHING

ID 57.3mm OD 69.9mm

2шт.

11

87324220

IDLE SHAFT

Pivot

2шт.

12

87436823

LINK ASSY.

Tension, Incl 24 - 25

1шт.

13

87038806

SNAP RING,M38, Internal

2шт.

14

329647A1

PIN,38.1mm OD x 113mm L

Idler Front

1шт.

15

87423203

SEAL

Undercarriage Oscillation

4шт.

16

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

2шт.

17

827-22140

BOLT,Hex, M22 x 2.5 x 140mm, Cl 10.9

2шт.

18

87441100

WHEEL ASSY

Idler

4шт.

18

87441100R

REMAN-WHEEL IDLER

Reman Roller

4шт.

18

87441100C

CORE-WHEEL IDLER

Return Number

4шт.

18

47487682R

REMAN-WHEEL IDLER

Idler. Poly Wheel

4шт.

18

47487682C

CORE-WHEEL IDLER

Return Number

4шт.

19

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

42шт.

20

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

40шт.

21

47534762

BOLT,Hex, M24 x 3 x 95mm, Cl 10.9

M24 x 95mm CL10.9

2шт.

22

87585083

SPACER

Alignment

2шт.

23

87664542

CHECK VALVE

Cylinder Relief

1шт.

24

435507A1

LINK

Tensioner

1шт.

25

430710A1

PAD

Tensioner Link

1шт.

Выбрано товаров: 31
