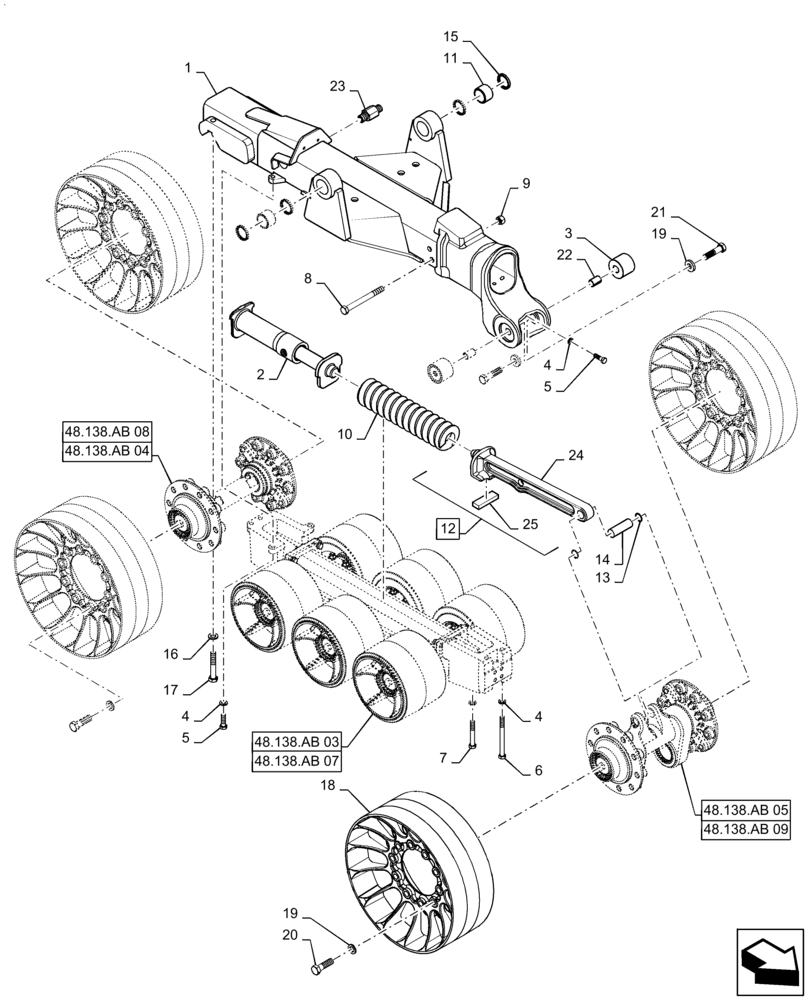

Запчасти Case IH QUADTRAC 580 (48.138.AB[02]) - UNDERCARRIAGE ASSY (48) - TRACKS & TRACK SUSPENSION

1

87326383

MOUNTING PARTS

Undercarriage

1шт.

2

84577087

HYDRAULIC CYLINDER,Double Acting, 60mm Rod, 228mm Stroke

Undercarriage

1шт.

2

84577087R

REMAN-HYD CYLINDER

1шт.

2

84577087C

CORE-HYD CYLINDER

1шт.

3

87324220

IDLE SHAFT

Pivot

2шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

13шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

9шт.

6

827-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

2шт.

7

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

8

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

1шт.

9

832-46420

NUT,M20 x 2.5, Cl 8

1шт.

10

255729A1

SPRING

Undercarriage

1шт.

11

47595575

BUSHING

ID 57.3mm OD 69.9mm

2шт.

12

87436823

LINK ASSY.

Tension Link, Incl 24 - 25

1шт.

13

87038806

SNAP RING,M38, Internal

2шт.

14

329647A1

PIN,38.1mm OD x 113mm L

Idler, Front

1шт.

15

87423203

SEAL

Undercarriage Oscillation

4шт.

16

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

2шт.

17

827-22140

BOLT,Hex, M22 x 2.5 x 140mm, Cl 10.9

2шт.

18

87441100

WHEEL ASSY

Idler

4шт.

18

87441100R

REMAN-WHEEL IDLER

Reman Roller

4шт.

18

87441100C

CORE-WHEEL IDLER

Return Number

4шт.

18

47487682R

REMAN-WHEEL IDLER

Idler. Poly Wheel

4шт.

18

47487682C

CORE-WHEEL IDLER

Return Number

4шт.

19

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

42шт.

20

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

40шт.

21

47534762

BOLT,Hex, M24 x 3 x 95mm, Cl 10.9

M24 x 95mm, CL 10.9

2шт.

22

87585083

SPACER

Alignment

2шт.

23

87735260

CHECK VALVE,10mm ORFS x M18 x 1.5 ORB

1шт.

24

435507A1

LINK

Tension

1шт.

25

430710A1

PAD

Tension Link

1шт.
