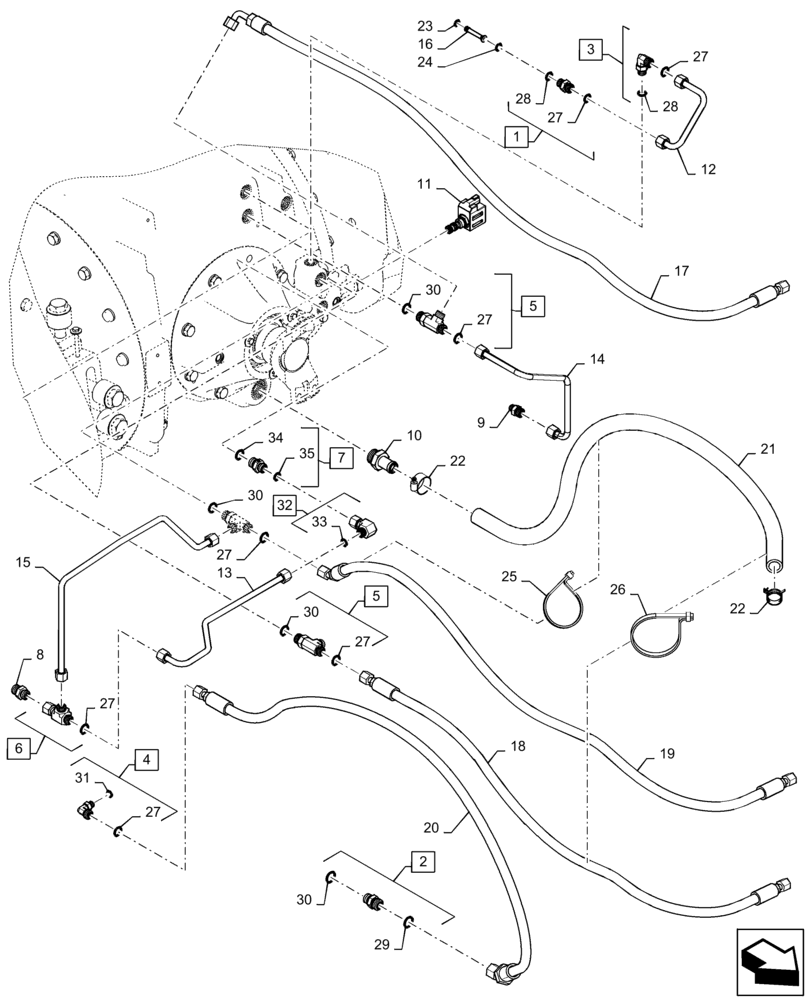

Запчасти Case IH QUADTRAC 580 (35.733.AC[06]) - REAR AXLE LUBRICATION LINES, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 27 - 28

2шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 29 - 30

1шт.

3

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 27 - 28

2шт.

4

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 27, 31

1шт.

5

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 27, 30

3шт.

6

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 27

1шт.

7

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief, Incl 34, 35

1шт.

8

84214146

FITTING

Adapter

1шт.

9

341195A1

ORIFICE

Orifice

1шт.

10

390348A1

STEM

Hose Barb

2шт.

11

384977A1

VALVE

Solenoid

2шт.

12

84214260

TUBE

Axle Lube Crossover

1шт.

13

84214264

TUBE

Axle Lube Crossover

1шт.

14

413340A1

TUBE

Axle Lube

1шт.

15

84217671

HYD TUBE

Axle Lube Crossover

1шт.

16

87400028

ORIFICE

Front Pinion Cover

2шт.

17

84281557

HOSE ASSY.

Park Brake Pressure

1шт.

18

84249106

HOSE ASSY.

Service Brake, Rear

1шт.

19

84281558

HOSE ASSY.

Axle Lube Pressure

1шт.

20

84244562

HOSE ASSY.,12.7mm ID x 1721mm L, SAE 100R1

AUX Drain

1шт.

21

353649A1

HOSE,1.00" ID x 56.00"

1шт.

22

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

8шт.

23

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

24

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

1шт.

26

440567A1

CABLE TIE

Cable

1шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13шт.

28

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

6шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

30

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

5шт.

31

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

32

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 33

1шт.

33

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
