Запчасти Case IH QUADTRAC 580 (35.733.AC[04]) - FRONT AXLE LUBRICATION LINES, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

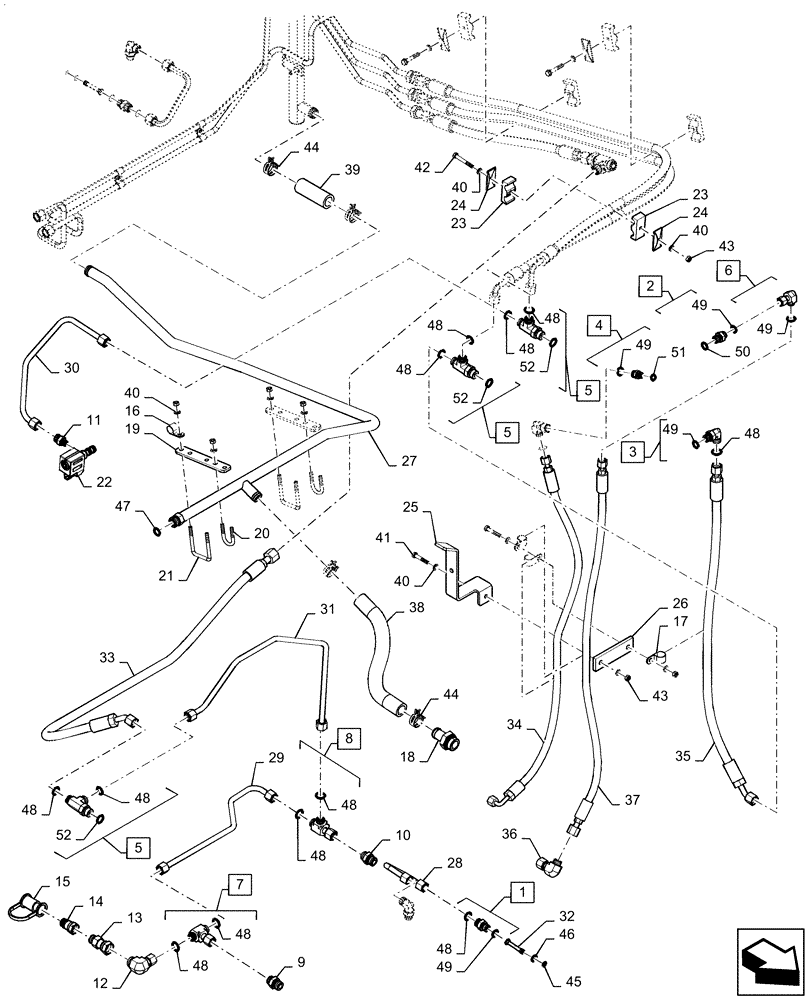

Схема запчастей Case IH QUADTRAC 580 - (35.733.AC[04]) - FRONT AXLE LUBRICATION LINES, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
45
29
52
27
38
21
12
33
5
48
7
48
36
20
48
48
40
48
49
48
6
16
5
14
23
40
51
48
30
24
42
49
48
23
49
18
24
44
32
5
34
46
48
44
17
35
49
52
49
4
40
43
2
47
3
15
40
50
11
9
19
48
28
1
48
48
37
10
52
13
31
41
8
39
22
26
25
43

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 48 - 49

2шт.

2

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 49 - 50

1шт.

3

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 48 - 49

3шт.

4

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 49, 51

1шт.

5

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 48, 52

3шт.

6

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 49

2шт.

7

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 48

1шт.

8

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 48

1шт.

9

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief

1шт.

10

84214146

FITTING

Adapter

1шт.

11

341195A1

ORIFICE

Orifice

1шт.

12

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

Elbow

1шт.

13

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

Connector

1шт.

14

392690A1

COUPLING

Male

1шт.

15

399032A1

CAP

Plug Dust

1шт.

16

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

4шт.

17

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

18

390348A1

STEM

Hose Barb

1шт.

19

87535336

BRACKET

Axle Drain Tube

2шт.

20

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

2шт.

21

396490A1

U-BOLT

Rectangular

2шт.

22

384977A1

VALVE

Solenoid

1шт.

23

50-2551T1

CLAMP

Tube

2шт.

24

50-2533T1

PLATE

Cover

2шт.

25

84214397

BRACKET, SUPPORTING

Brake Lines

1шт.

26

L50641

CONNECTING STRIP

Return Lines

1шт.

27

84248762

TUBE

Axle Drain, Front

1шт.

28

84214260

TUBE

Axle Lube Crossover

1шт.

29

84214264

TUBE

Axle Lube Crossover

1шт.

30

413340A1

TUBE

Axle Lube

1шт.

31

84217671

HYD TUBE

Axle Lube Crossover

1шт.

32

87400028

ORIFICE

Front Pinion Cover

2шт.

33

84244564

HOSE ASSY.,12.7mm ID x 1172mm L, SAE 100R1

Axle Lube, Front

1шт.

34

84341616

HOSE ASSY.,9.53mm ID x 1029mm L, SAE 100R17

Brake, Load Sense

1шт.

35

84539485

HYDRAULIC HOSE,12.7mm ID x 959mm L, SAE 100R17

Brake Signal

1шт.

36

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

37

47663113

HOSE

Brake Supply

1шт.

38

395933A1

HOSE,1.00" ID x 15.00"

1шт.

39

435457A1

HOSE,1.00" ID x 4.00"

1шт.

40

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

41

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

42

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

43

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

12шт.

44

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

4шт.

45

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

46

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

47

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

48

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

11шт.

49

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

9шт.

50

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

51

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

52

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 52
