Запчасти Case IH QUADTRAC 580 (35.733.AC[03]) - REAR AXLE LUBRICATION LINES, W/O DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

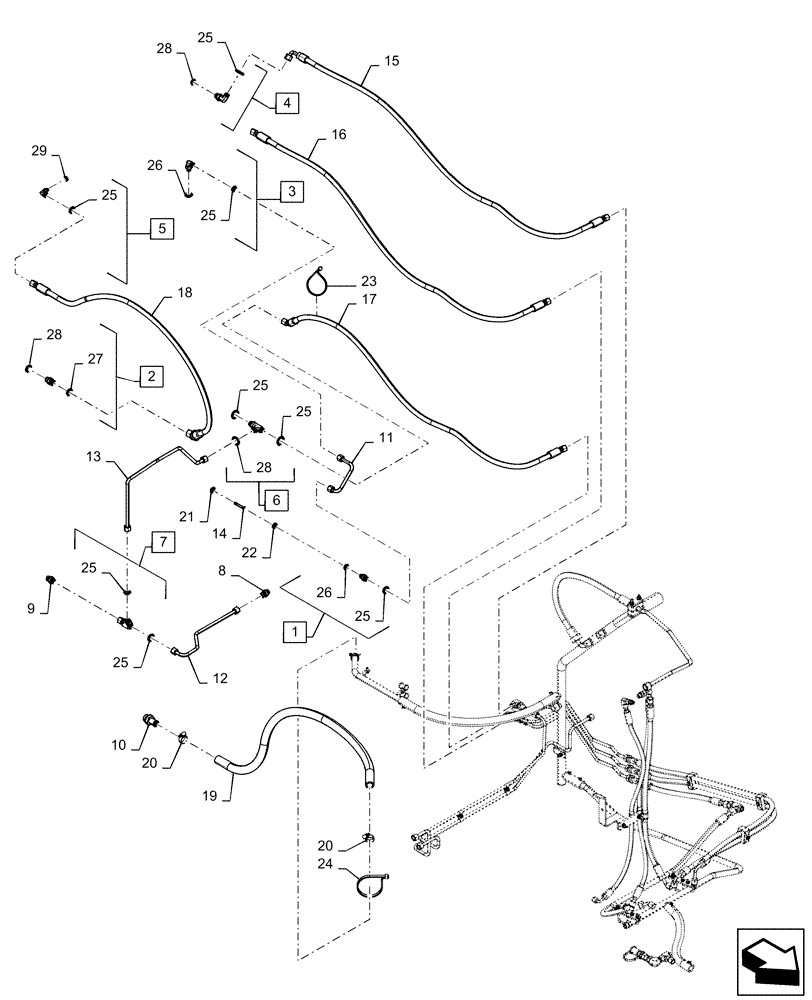

Схема запчастей Case IH QUADTRAC 580 - (35.733.AC[03]) - REAR AXLE LUBRICATION LINES, W/O DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
10
28
25
14
28
4
25
2
26
25
15
29
13
28
19
25
18
22
7
25
25
21
8
9
23
16
26
25
3
12
17
20
1
20
5
6
27
25
24
11

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 25 - 26

2шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 27 - 28

1шт.

3

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 25 - 26

2шт.

4

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 25, 28

1шт.

5

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 25, 29

1шт.

6

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 25, 28

2шт.

7

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 25

1шт.

8

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief

1шт.

9

84214146

FITTING

Adapter

2шт.

10

390348A1

STEM

Hose Barb

1шт.

11

84214260

TUBE

Axle Lube Crossover

2шт.

12

84214264

TUBE

Axle Lube Crossover

2шт.

13

84217671

HYD TUBE

Axle Lube Crossover

1шт.

14

87400028

ORIFICE

Front Pinion Cover

2шт.

15

84281557

HOSE ASSY.

Park Brake Pressure

1шт.

16

84249106

HOSE ASSY.

Service Brake, Rear

1шт.

17

84281558

HOSE ASSY.

Axle Lube Pressure

1шт.

18

84244562

HOSE ASSY.,12.7mm ID x 1721mm L, SAE 100R1

AUX Drain

1шт.

19

353649A1

HOSE,1.00" ID x 56.00"

1шт.

20

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

21

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

22

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

2шт.

24

440567A1

CABLE TIE

Cable

1шт.

25

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

11шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

28

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

5шт.

29

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

Выбрано товаров: 29
