Запчасти Case IH QUADTRAC 580 (35.322.AY[07]) - MEGA FLOW HYDRAULIC SYSTEM LINES (35) - HYDRAULIC SYSTEMS

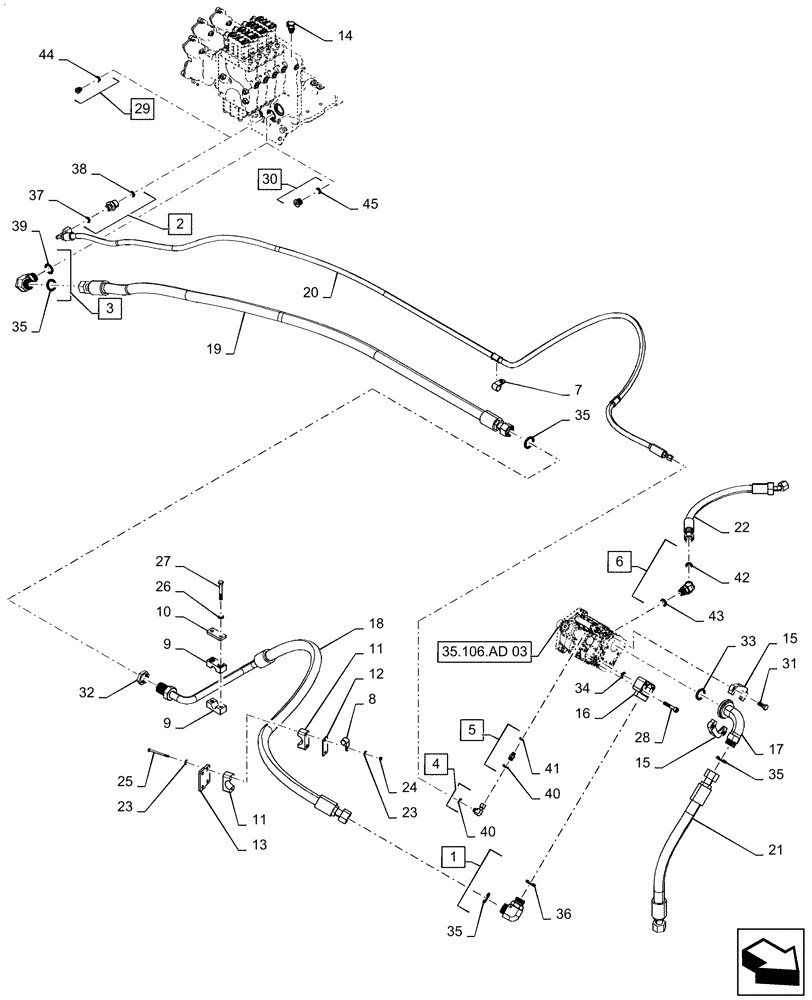

Схема запчастей Case IH QUADTRAC 580 - (35.322.AY[07]) - MEGA FLOW HYDRAULIC SYSTEM LINES (35) - HYDRAULIC SYSTEMS
44
35
43
19
4
2
17
40
14
36
5
38
13
45
26
35
29
15
35
42
28
23
22
39
10
27
32
37
7
18
34
35.106.ad 03
8
30
9
24
11
23
6
3
16
20
35
1
40
33
9
25
12
11
41
21
15
31

Артикул

Название

Примечание

Количество

1

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl 35 - 36

1шт.

2

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl 37 - 38

1шт.

3

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 35, 39

1шт.

4

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 40

1шт.

5

84602714

FITTING

9/16" - 18 ORFS x 7/16" - 20 ORB, 100 Micron, Incl 40 - 41

1шт.

6

87301491

45 ELBOW

1" - 14 ORFS x 7/8" - 14 ORB, Incl 42 - 43

1шт.

7

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

1шт.

8

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

9

367489A1

BLOCK

Tube Mounting

1шт.

10

367658A1

PLATE

Clamp Cover

1шт.

11

84299709

CLAMP,38mm ID

Hose Support

1шт.

12

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

Hose Clamp

1шт.

13

84299707

BRACKET, SUPPORTING

Mega Flow Hose Support

1шт.

14

178889A1

DIAGNOSTIC COUPLER

Diagnostic

1шт.

15

A14141

FLANGE

Split Half Clamp, 2"

2шт.

16

84195080

FLANGE

Mega Flow Pump

1шт.

17

84194169

HYD TUBE

Mega Flow Pump Supply

1шт.

18

84412445

HOSE ASSY.

Auxiliary Valve Supply

1шт.

19

84260656

HOSE ASSY.

Auxiliary Valve Supply

1шт.

20

47397337

HOSE ASSY.,9.53mm ID x 3810mm L, SAE 100R17

Auxiliary Valve Load Sense

1шт.

21

84225629

HOSE ASSY.

Mega Flow Supply

1шт.

22

84282889

HOSE ASSY.

Mega Flow Pump Drain, Mega Flow Pump To Tank

1шт.

23

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

24

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

25

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

27

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

28

87530644

SCREW,M10 x 55mm, Cl 8.8

4шт.

29

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 44

1шт.

30

221579A1

PLUG,M22 x 1.5 ORB

Incl 45

1шт.

31

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

32

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

33

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

34

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

35

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

36

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

37

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

38

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

39

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

40

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

41

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

42

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

43

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

44

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

45

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 45
