Запчасти Case IH QUADTRAC 580 (35.322.AY[06]) - AUXILIARY CONTROL VALVE LINES, REAR (35) - HYDRAULIC SYSTEMS

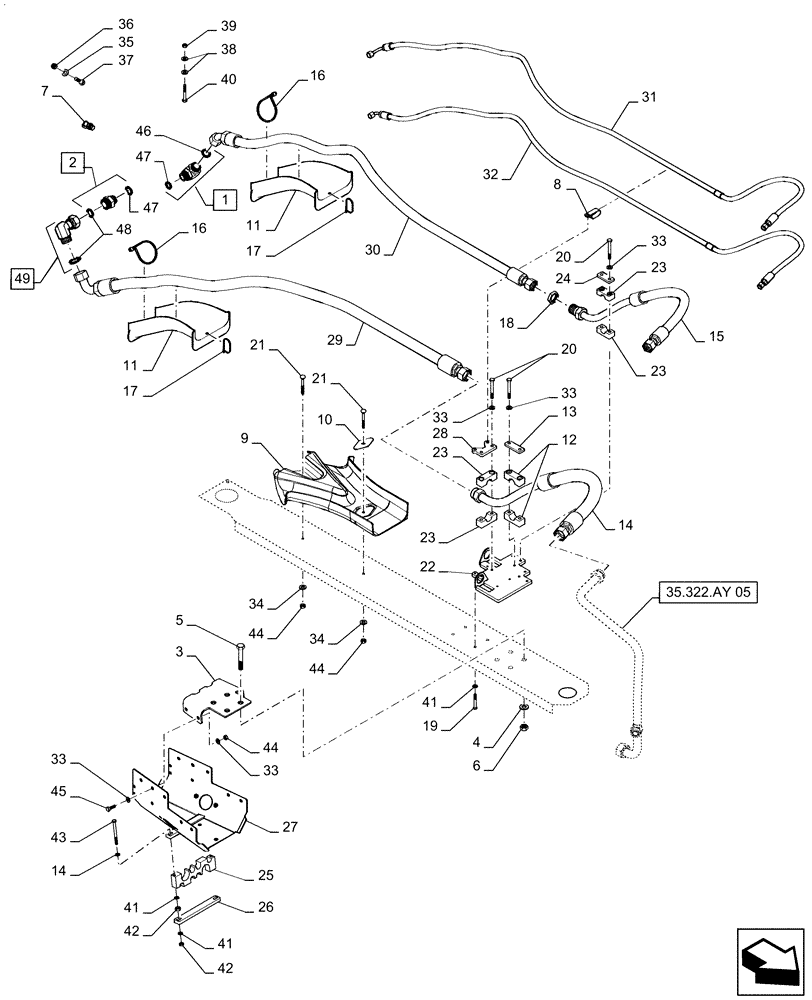

Схема запчастей Case IH QUADTRAC 580 - (35.322.AY[06]) - AUXILIARY CONTROL VALVE LINES, REAR (35) - HYDRAULIC SYSTEMS
33
27
41
8
9
45
2
40
12
24
21
46
3
38
33
23
33
11
16
41
33
43
34
20
23
36
13
10
35.322.ay 05
49
5
21
7
26
47
16
1
23
44
34
44
4
15
29
47
19
35
25
32
42
17
20
30
23
28
11
44
33
18
14
37
17
22
42
31
6
48
14
41
39

Артикул

Название

Примечание

Количество

1

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 46 - 47

1шт.

2

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 47 - 48

1шт.

3

404604A1

BRACKET

Articulation Hose Hanger

1шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

5

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

4шт.

6

829-1416

NUT,M16, Cl 10

4шт.

7

358968A1

FITTING

Diagnostic

2шт.

8

R54363

CLAMP

Double Hose

1шт.

9

84193123

CHANNEL

Remote Hose Support

1шт.

10

84193124

PLATE

Channel Hold Down

1шт.

11

84214880

CHANNEL

Remote Hose Support

2шт.

12

367489A1

BLOCK

Tube Mounting

1шт.

13

367658A1

PLATE

Clamp Cover

1шт.

14

84412439

HEATER TUBE

Auxiliary Return

1шт.

15

84412442

HYD TUBE

Auxiliary Supply

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

2шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

2шт.

18

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

19

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

4шт.

20

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

21

120040

CARRIAGE BOLT,Short Nk, M8 x 80mm, Cl 8.8

2шт.

22

84221611

BRACKET

Hose Support

1шт.

23

84196601

CLAMP,32mm ID

Tube Mounting

2шт.

24

8500858

PLATE

Clamp Cover

1шт.

25

362419A1

CLAMP

Collar

1шт.

26

405520A1

PLATE

Clamp Cover

1шт.

27

84363118

BRACKET, SUPPORTING

Hose Mounting

1шт.

28

84221618

BRACKET

Hose Clamp Support

1шт.

29

84244534

HOSE ASSY.,31.75mm ID x 2193mm L, SAE 100R1

Rear Remote Auxiliary Return

1шт.

30

84244533

HOSE ASSY.

Rear Remote Auxiliary Supply

1шт.

31

84244529

HOSE ASSY.,9.53mm ID x 3231mm L, SAE 100R1

Rear Remote Auxiliary Pilot Pressure

1шт.

32

84244528

HOSE ASSY.,9.53mm ID x 3205mm L, SAE 100R17

Rear Remote Auxiliary Load Sense

1шт.

33

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

14шт.

34

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

35

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

36

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

37

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

38

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

39

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

40

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

41

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9шт.

42

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

43

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

44

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

45

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

46

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

47

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

48

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

49

701-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

Incl 48

1шт.
