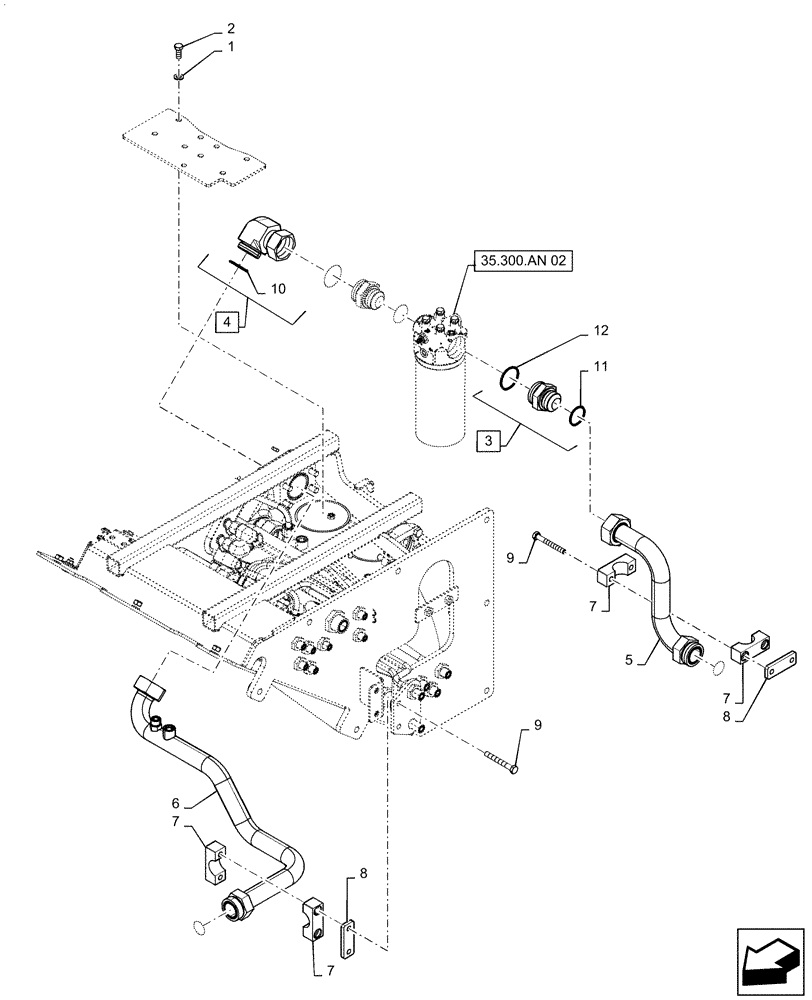

Запчасти Case IH QUADTRAC 580 (35.300.AN[01]) - VAR - 420301, 420302 - STANDARD HYDRAULIC OIL FILTER MOUNTING (35) - HYDRAULIC SYSTEMS

1

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

86997863

HYD CONNECTOR,2" - 12 ORFS x M42 x 2 ORB

Incl 11 - 12

2шт.

4

84191685

ELBOW UNION,2" - 12 ORFS x 2" - 12

2"-12 ORFS, Incl 10

1шт.

5

84212493

TUBE

Standard Filter Supply

1шт.

6

47359676

HYD TUBE

Standard Suction Supply

1шт.

7

8500621

BLOCK

Tube Mounting

2шт.

8

8500858

PLATE

Clamp Cover

1шт.

9

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

4шт.

12

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.
