Запчасти Case IH QUADTRAC 580 (35.204.BE[03]) - AUXILIARY CONTROL VALVE, 4-SPOOL, WITH 3 POINT HITCH (35) - HYDRAULIC SYSTEMS

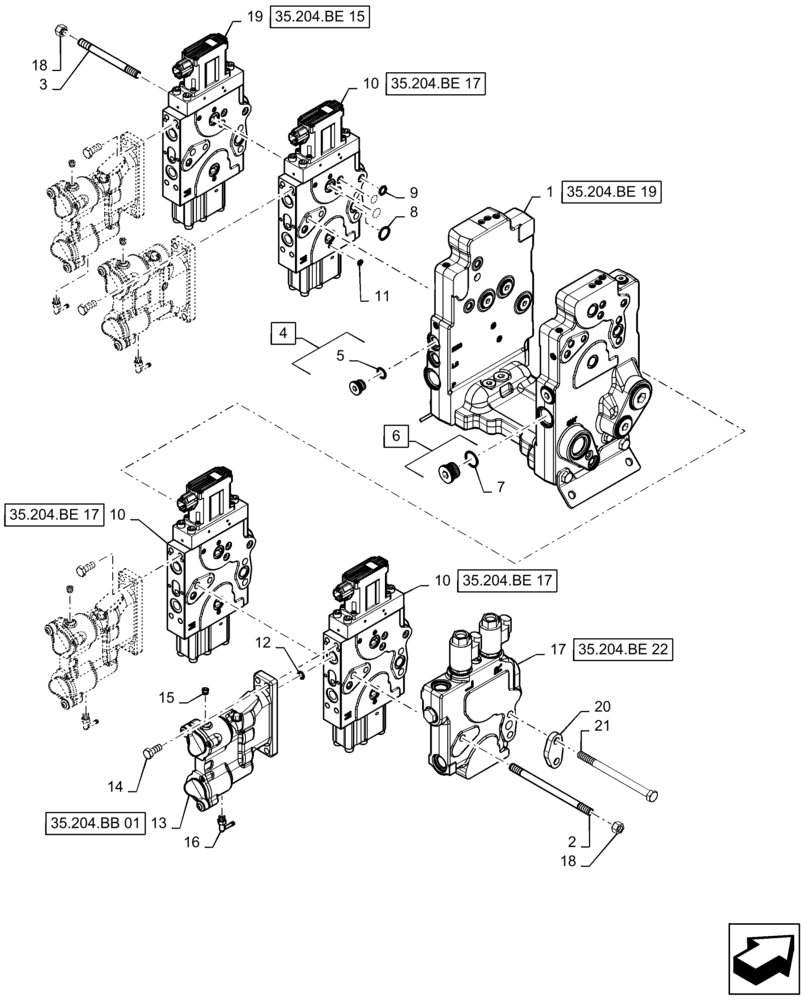

Схема запчастей Case IH QUADTRAC 580 - (35.204.BE[03]) - AUXILIARY CONTROL VALVE, 4-SPOOL, WITH 3 POINT HITCH (35) - HYDRAULIC SYSTEMS
35.204.be 19
2
5
35.204.be 22
9
11
10
12
10
14
10
35.204.be 17
18
35.204.be 17
1
3
35.204.bb 01
7
16
21
8
15
13
18
35.204.be 17
6
4
17
19
20
35.204.be 15

Артикул

Название

Примечание

Количество

1

47434164

HYDRAULIC MANIFOLD

Auxiliary Control Valve

1шт.

2

87687049

STUD

M12 - 1.75 x 195mm

1шт.

3

87669808

STUD

M12 - 1.75 x 140mm

3шт.

4

221578A1

PLUG,M18 x 1.5 ORB

Incl 5

2шт.

5

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

6

221580A1

PLUG,M27 x 2 ORB

Incl 7

2шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

8

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

16шт.

9

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

20шт.

10

47434186

HYD VALVE SECTION

Main

3шт.

10

47434186R

REMAN-HYD VALVE

Main

3шт.

10

47434186C

CORE-VALVE HYD

Return Number

3шт.

11

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

12шт.

12

87635387

O-RING,2.62mm Thk x 21.89mm ID, -118, 80 Duro

12шт.

13

435375A1

VALVE

1/2" Coupling Assembly

4шт.

14

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

16шт.

15

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

4шт.

16

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

1/8" - 27 NPT x 1/4" Hose Barb

4шт.

17

47434192

HYD VALVE SECTION

Three Point Hitch

1шт.

18

829-1312

NUT,M12 x 1.75, Cl 10

4шт.

19

47434188

HYD VALVE SECTION

Left End Valve

1шт.

19

47434188R

REMAN-HYD VALVE

Left End Valve

1шт.

19

47434188C

CORE-VALVE HYD

Return Number

1шт.

20

84203478

COVER

Hitch Valve

1шт.

21

87026184

BOLT,Hex, M12 x 170mm, Cl 10.9

2шт.

Выбрано товаров: 25
