Запчасти Case IH QUADTRAC 580 (33.202.010[03]) - BRAKE AND CLUTCH PEDAL (ASN ZGF309113) (33) - BRAKES & CONTROLS

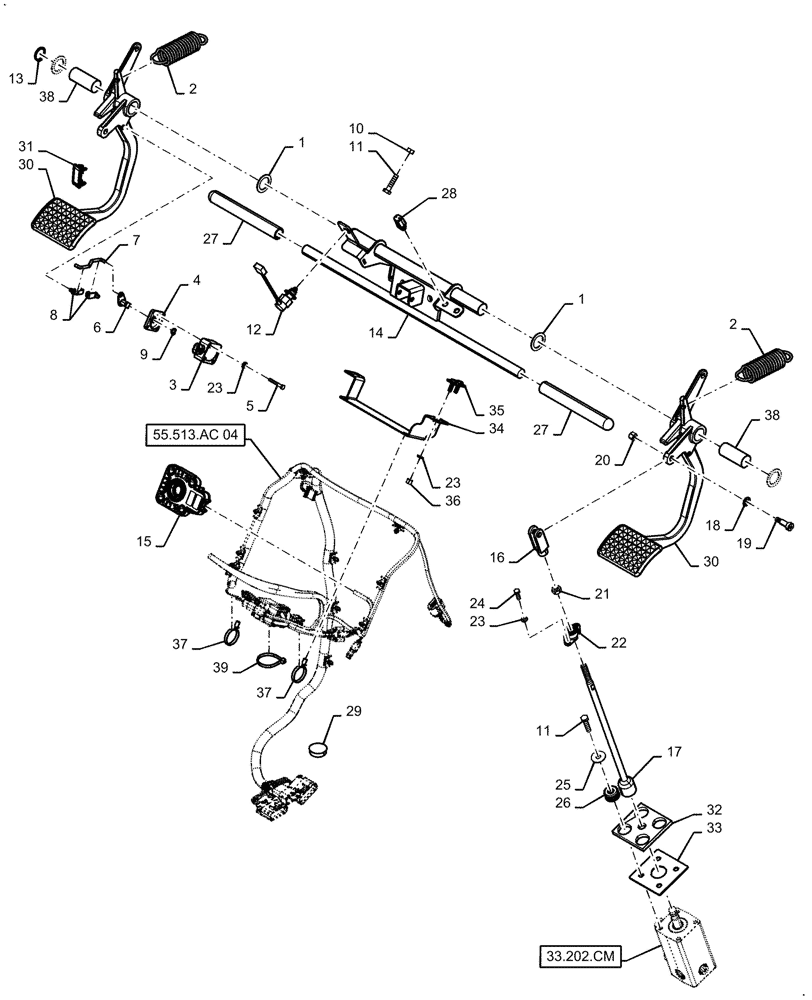

Схема запчастей Case IH QUADTRAC 580 - (33.202.010[03]) - BRAKE AND CLUTCH PEDAL (ASN ZGF309113) (33) - BRAKES & CONTROLS
33.202.cm
36
37
29
15
9
17
13
10
27
4
39
38
38
19
12
14
37
21
23
23
3
20
26
33
11
27
31
32
1
1
6
35
2
30
16
5
18
28
7
2
11
34
22
25
8
23
24
30
55.513.ac 04

Артикул

Название

Примечание

Количество

1

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

4шт.

2

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

2шт.

3

283659A1

SENSOR

Hitch Position

1шт.

4

305155A2

BUSHING

Potentiometer, 10.05mm ID x 15.72mm Thk

1шт.

5

840-1530

SCREW,Pan, M5 x 30mm, Cl 4.8

2шт.

6

322409A1

PIN

Assy, Potentiometer

1шт.

7

222463A2

LINK

Push / Pull

1шт.

8

60-2404T1

RETAINER

Clip

2шт.

9

800-1110

SNAP RING,M10, Ext

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

5шт.

12

355341A1

SWITCH

Plunger

1шт.

13

800-1125

SNAP RING,M25, Ext

1шт.

14

47648120

PEDAL

Support, Assy

1шт.

15

47786983

SENSOR

Steering Angle

1шт.

16

47946893

CLEVIS

M10 x 40mm L

1шт.

17

47943265

ROD

Brake

1шт.

18

47940641

SHIM,10.8mm ID x 18.3mm OD x 0.25mm Thk

1шт.

19

84370846

HEX SOC SCREW,M8 x 33.25, 10 x 20mm shldr, Cl 12.9

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

22

47906938

FLANGED BEARING,12.9mm ID, Nylon

1шт.

23

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6шт.

24

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

25

495-81001

WASHER,5/16"

4шт.

26

434177A1

ISOLATOR

Mounting

4шт.

27

321961A1

MOLDING

Rubber

2шт.

28

279265A2

SWITCH

Diff. Lock Brake

1шт.

29

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

30

47632824

PEDAL

Clutch / Brake

2шт.

31

126844A1

PLUG,1.427” x .62” , Plastic

1шт.

32

84304615

GASKET,8mm Thk

Brake Valve

1шт.

33

84342645

MOUNTING PLATE

Brake Valve

1шт.

34

47600705

BRACKET

Dash Harness

1шт.

35

47600703

MOUNTING PLATE

Support

2шт.

36

832-10406

NUT,M6 x 1, Cl 8

4шт.

37

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

38

281893A1

BEARING

Clutch / Brake Pedal

2шт.

39

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

Выбрано товаров: 39
