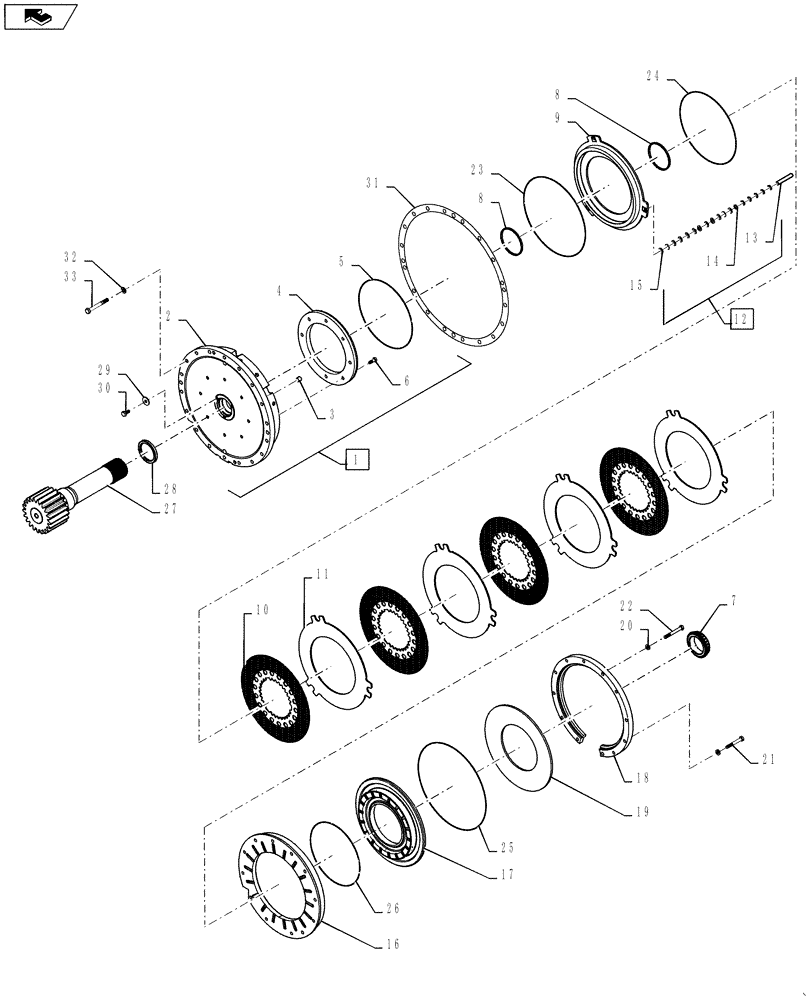

Запчасти Case IH QUADTRAC 550 (25.100.25) - 600 SERIES AXLE - BRAKE AND RIGHT-HAND CARRIER - STEIGER 550HD & 600, QUADTRAC 550 & 600 (25) - FRONT AXLE SYSTEM

1

84246388

BEARING CARRIER

Assy., Incl 2 - 6, Wheeled, Use With 386.95 mm Dia Service Brake Piston

1шт.

1

84466646

BEARING CARRIER

Assy., Incl 2 - 6, Wheeled, Use With 388.9 mm Dia Service Brake Piston

1шт.

1

84332745

BEARING CARRIER

Assy., Incl 2 - 6, QuadTrac, Use With 386.95 mm Dia Service Brake Piston

1шт.

1

84466688

BEARING CARRIER

Assy., Incl 2 - 6, QuadTrac, Use With 388.9 mm Dia Service Brake Piston

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER, Diff Bearing/Brake Wheel, Incl in 1

1шт.

3

87520609

PLUG

Expansion, 6.5mm

1шт.

4

NSS

NOT SOLD SEPARAT

INSERT, Brake Piston Bore, Incl in 1

1шт.

5

14469781

O-RING,12.984" ID x 13.265" OD x 0.139"

1шт.

6

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

7

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

8

388308A1

SEALING RING

Ring

2шт.

9

84301260

PISTON

Service Brake, 386.95 mm Dia

1шт.

9

84466702

PISTON

Service Brake, 388.9 mm Dia

1шт.

10

353363A1

PLATE

Friction

4шт.

11

228193A1

PLATE

Separator

4шт.

12

363254A1

ADJUSTER

Incl 13 - 15

3шт.

13

NSS

NOT SOLD SEPARAT

DOWEL PIN, Incl in 12

1шт.

14

100-1450

SNAP RING,#50, Ext

6шт.

15

1342928C1

BELLEVILLE WASHER

12шт.

16

353367A3

PLATE

Brake Backing, Wheeled

1шт.

16

353366A3

PLATE

Brake Backing, QuadTrac

1шт.

17

353369A1

PISTON

Park Brake

1шт.

18

279707A1

RETAINER

Spring

1шт.

19

226320A1

BELLEVILLE WASHER,225mm ID x 415mm OD x 7.799mm Thk

Park Brake

1шт.

20

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

21

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

22

828-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

10шт.

23

238-7281

O-RING,0.139" Thk x 14.984" ID, -281, Cl 7, 75 Duro

Use With 386.95 mm Dia Service Brake Piston

1шт.

23

84470492

O-RING

Use With 388.9 mm Dia Service Brake Piston

1шт.

24

14469781

O-RING,12.984" ID x 13.265" OD x 0.139"

Use With 386.95 mm Dia Service Brake Piston

1шт.

24

84470491

O-RING

Use With 388.9 mm Dia Service Brake Piston

1шт.

25

238-7282

O-RING,0.139" Thk x 15.96" ID, -282, Cl 7, 75 Duro

1шт.

26

238-7278

O-RING,0.139" Thk x 11.984" ID, -278, Cl 7, 75 Duro

1шт.

27

84351352

SUN GEAR

Shaft, Long, Wheeled

1шт.

27

279843A2

SHAFT,364mm L

Sun Gear, Long, QuadTrac

1шт.

28

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

29

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

30

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

31

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

31

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

31

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

31

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

32

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

18шт.

33

828-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

18шт.
