Запчасти Case IH QUADTRAC 550 (25.100.24) - 600 SERIES AXLE - DIFFERENTIAL, WITH DIFFERENTIAL LOCK - STEIGER 550HD & 600, QUADTRAC 550 & 600 (25) - FRONT AXLE SYSTEM

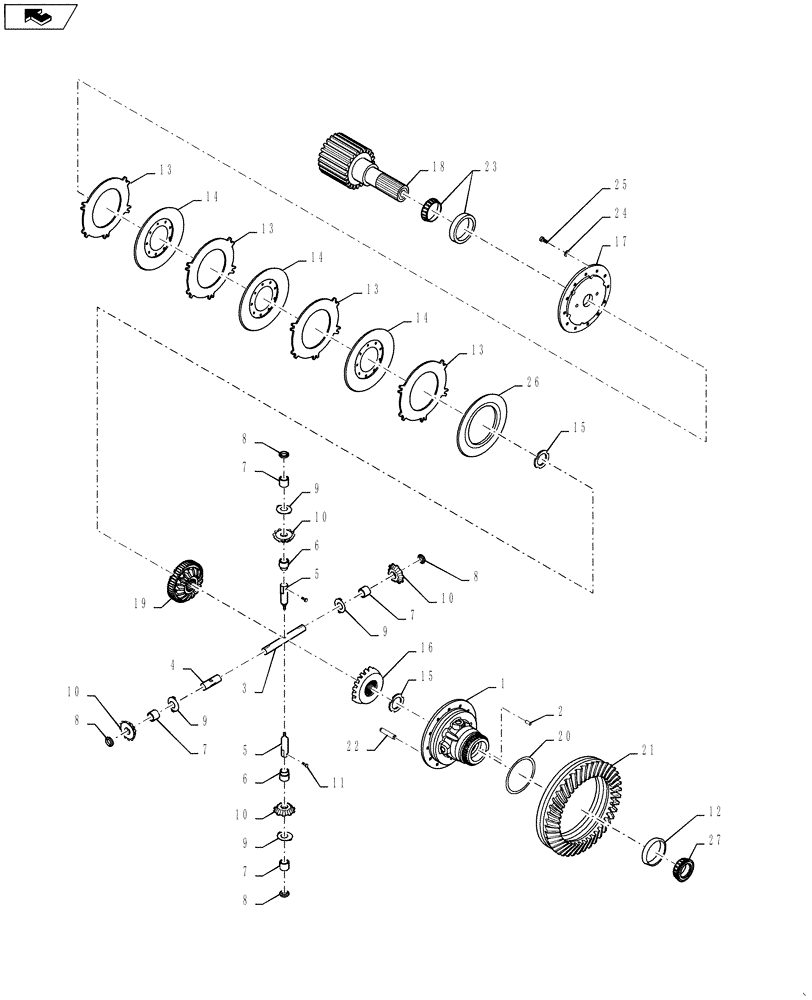

Схема запчастей Case IH QUADTRAC 550 - (25.100.24) - 600 SERIES AXLE - DIFFERENTIAL, WITH DIFFERENTIAL LOCK - STEIGER 550HD & 600, QUADTRAC 550 & 600 (25) - FRONT AXLE SYSTEM
7
9
13
21
12
14
6
14
9
7
1
17
3
7
2
15
13
5
27
15
8
8
25
23
16
22
4
8
13
home
5
6
10
18
11
24
26
20
8
7
10
9
10
19
9
10
13
14

Артикул

Название

Примечание

Количество

1

84322015

CARRIER

With Diff Lock, Incl 2

1шт.

2

87520606

PLUG

10mm

1шт.

3

92907C1

SHAFT

Pinion, Long

1шт.

4

1289349C1

SPACER

Long Pinion

1шт.

5

92906C1

SHORT SHAFT

Pinion

2шт.

6

1289350C1

SPACER

Short Pinion

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

8

1289348C1

RING

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

Cross Pin

2шт.

12

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

Separator

4шт.

14

120679C1

PLATE

Friction

3шт.

15

87629650

THRUST WASHER

2шт.

16

1259633C3

GEAR

Bevel, 20T

1шт.

17

84322102

COVER

Diff Case W/ Lock

1шт.

18

84351353

SUN GEAR

Shaft, Short, Wheeled

1шт.

18

279844A2

SHAFT,271mm L

Sun Gear, Short, QuadTrac

1шт.

19

1259634C3

PINION

Lock

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

1шт.

21

87522606

GEAR SET

Pinion Shaft and Gears, Front Axle, (Pinion Shaft Not Shown)

1шт.

21

87522604

GEAR SET

Pinion Shaft and Gears, Rear Axle, (Not Shown)

1шт.

22

137023A1

DOWEL

Diff Lock Reactor Pin

6шт.

23

84160921

TAPERED BEARING

1шт.

24

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

25

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

26

1997422C1

PISTON

Brake

1шт.

27

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

Выбрано товаров: 29
