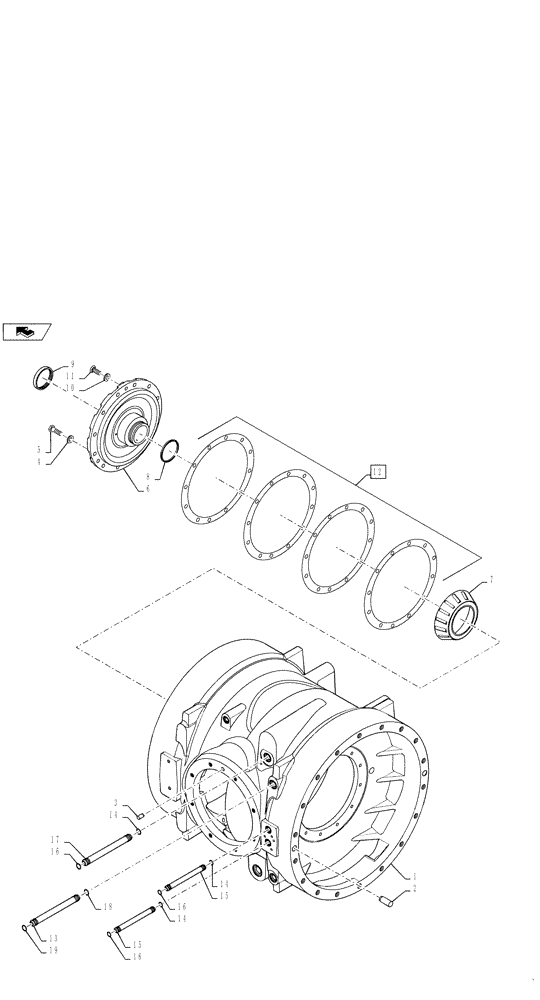

Запчасти Case IH QUADTRAC 550 (25.100.22) - 600 SERIES AXLE - CENTER AND LEFT-HAND CARRIER - QUADTRAC 550 & 600 (25) - FRONT AXLE SYSTEM

1

87438235

AXLE HOUSING

Center, Front Axle, Incl 1 - 4

1шт.

1

87438234

AXLE HOUSING

Center, Rear Axle, Not Illustrated, Incl 1 - 4

1шт.

2

837-16040

DOWEL,M16 x 40

6шт.

3

837-12025

DOWEL,M12 x 25

1шт.

4

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

5

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

6

84140079

BEARING CARRIER

LH

1шт.

7

84160921

TAPERED BEARING

Cup And Cone

1шт.

8

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

1шт.

9

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

1шт.

10

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

11

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

12

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

12

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

12

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

1шт.

12

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

1шт.

13

84237522

TUBE

Jumper, Service Brake, Front Axle

1шт.

13

84468365

TUBE

Jumper, Service Brake, Rear Axle

1шт.

14

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

3шт.

15

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

Jumper, Lubrication

2шт.

16

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

3шт.

17

298567A1

TUBE,11.85 mm OD, 156 mm Length

Jumper, Park Brake

1шт.

18

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

19

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.
