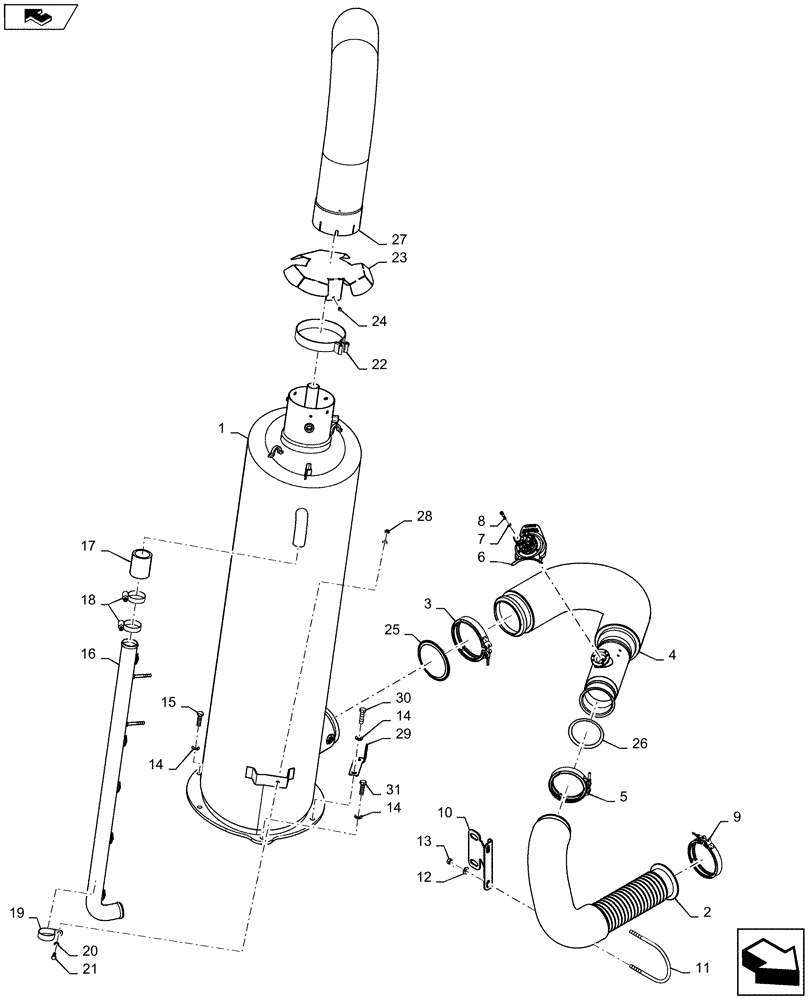

Запчасти Case IH QUADTRAC 550 (10.500.06) - SCR EXHAUST - QUADTRAC 550 & 600 (10) - ENGINE

1

84366821

MUFFLER

SCR 41L Volume

1шт.

2

84481931

EXHAUST SYSTEM PIPE

Turbo Tube And Flexpipe

1шт.

3

84469765

CLAMP,Exhaust; 5"

146.6mm

1шт.

4

84306578

TUBE

1шт.

5

84356331

CLAMP,118mm OD x 26mm W

118.8mm

1шт.

6

84248058

MODULE

DENOX2 Urea Dosing - 9KG/H

1шт.

6

47511725R

REMAN ELECT CONTROL

QUADTRAC® 550, QUADTRAC® 600, Both 4WD TRACTOR, DENOX2 Urea Dosing - 9KG/H (4/11-), Reman for New PN 84248058

1шт.

6

47511725C

CORE-ELECTRONIC CONT

Return Number

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

8

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

3шт.

9

84256893

CLAMP

132.08mm

1шт.

10

84378749

BRACKET

Support

1шт.

11

84354957

U-BOLT

Exhaust Support

1шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

13

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

16

47463642

AIR INTAKE TUBE

1шт.

17

84583310

HOSE

1шт.

18

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

19

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

22

87430634

CLAMP,159.5mm ID

159.5mm

1шт.

23

84331669

INTRODUCTION CAP

Temporary Shipping

1шт.

24

782-84413

SELF-TAP SCREW,Hex Flg, M4.8 x 1.6 x 13mm

3шт.

25

84349224

GASKET

5" Exhaust

1шт.

26

84349222

GASKET,1.3mm Thk

4" Exhaust

1шт.

27

84367331

ELBOW

Ejector Stack Assembly

1шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

29

47468208

BRACKET

, Start Serial: ZDF134880

1шт.

30

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

, Serial Range: -ZDF134880

1шт.

30

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

, Start Serial: ZDF134880

1шт.

31

84364685

SPECIAL BOLT

Breakaway, M12, Serial Range: -ZDF134874

2шт.

31

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

, Start Serial: ZDF134874

2шт.
