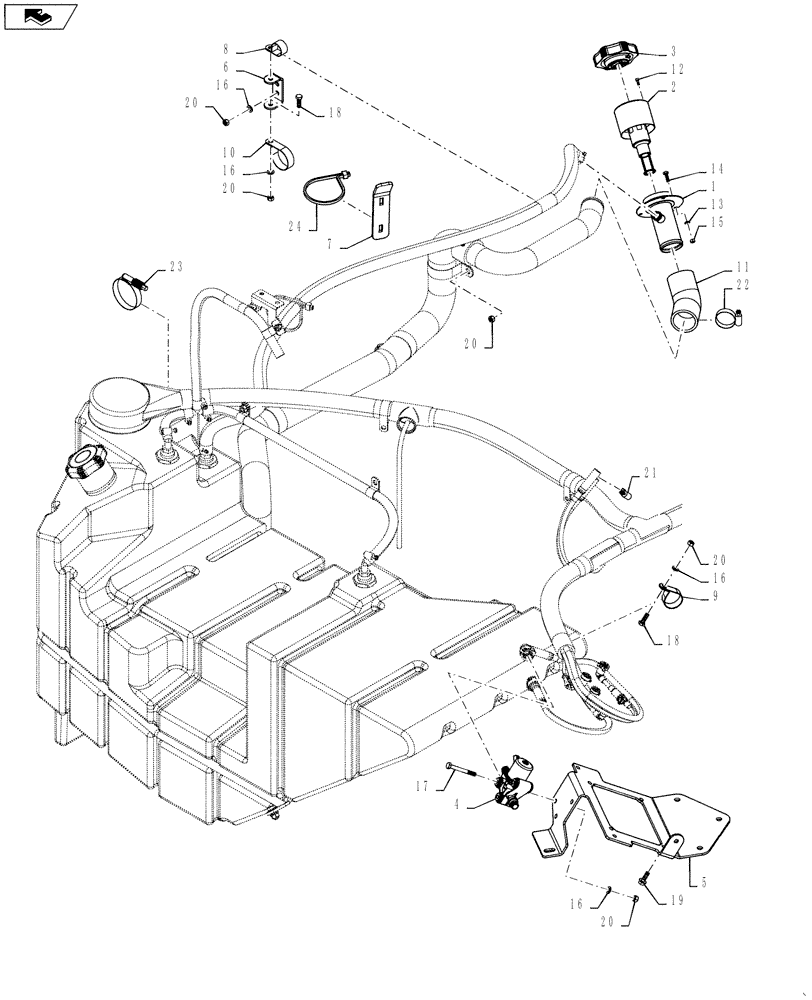

Запчасти Case IH QUADTRAC 550 (10.500.02[06]) - SCR TANK & PLUMBING - QUADTRAC - ASN ZCF129726 (10) - ENGINE

1

84425045

FILLER

1шт.

2

87483158

NECK FILLER

1шт.

3

84206552

FILLER CAP,Male

Urea Tank

1шт.

4

84151635

HEATER VALVE

1шт.

5

84328027

BRACKET, SUPPORTING

SCR Sw Support, QuadTrac

1шт.

6

84425052

BRACKET

DEF Fill Support

1шт.

7

84425077

BRACKET

DEF LH Fill Lock

1шт.

8

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

1шт.

9

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

10

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

11

84425049

FLEXIBLE HOSE

DEF Fill

1шт.

12

84246766

HEX SOC SCREW,M4 x 12mm, SST

4шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

14

827-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

15

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

17

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

18

827-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

19

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

21

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

22

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

23

L115549

CLAMP,69.85mm - 92.08mm

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
