Запчасти Case IH QUADTRAC 550 (55.301.08) - BATTERY EQUALIZER LAYOUT - QUADTRAC - EUROPE ONLY (55) - ELECTRICAL SYSTEMS

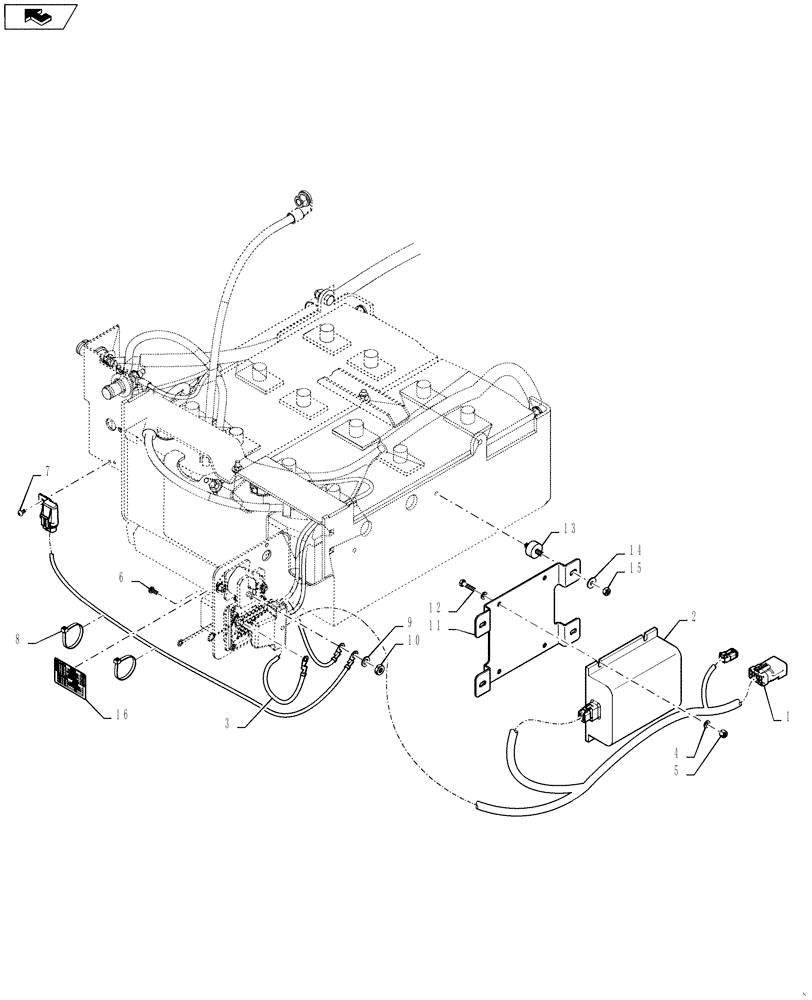

Схема запчастей Case IH QUADTRAC 550 - (55.301.08) - BATTERY EQUALIZER LAYOUT - QUADTRAC - EUROPE ONLY (55) - ELECTRICAL SYSTEMS
4
14
1
7
5
15
10
8
9
3
16
home
11
6
12
13
2

Артикул

Название

Примечание

Количество

1

84406525

WIRE HARNESS

24 Volt System - See Figure 55.100.36

1шт.

2

47489949

CONVERTER,12V To 24V

Equalizer / Converter, 12 Volt to 24 Volt

1шт.

2

47489949R

REMAN-MODULE

Equalizer / Converter, 12 Volt to 24 Volt

1шт.

2

47489949C

CORE-MODULE

Return Number

1шт.

3

84351593

WIRE HARNESS

Starter Relay

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4шт.

7

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Nylon, 7-8 IN.

4шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

10

225-14210

NUT,#10-32

1шт.

11

84322908

BRACKET, SUPPORTING

24V Equalizer Mount

1шт.

12

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

13

84316981

ISOLATOR

Vibration Dampening

4шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

15

425-104

NUT,1/4"-20, Cl 5

4шт.

16

84493442

DECAL

24V Fuse/Relay

1шт.

Выбрано товаров: 18
