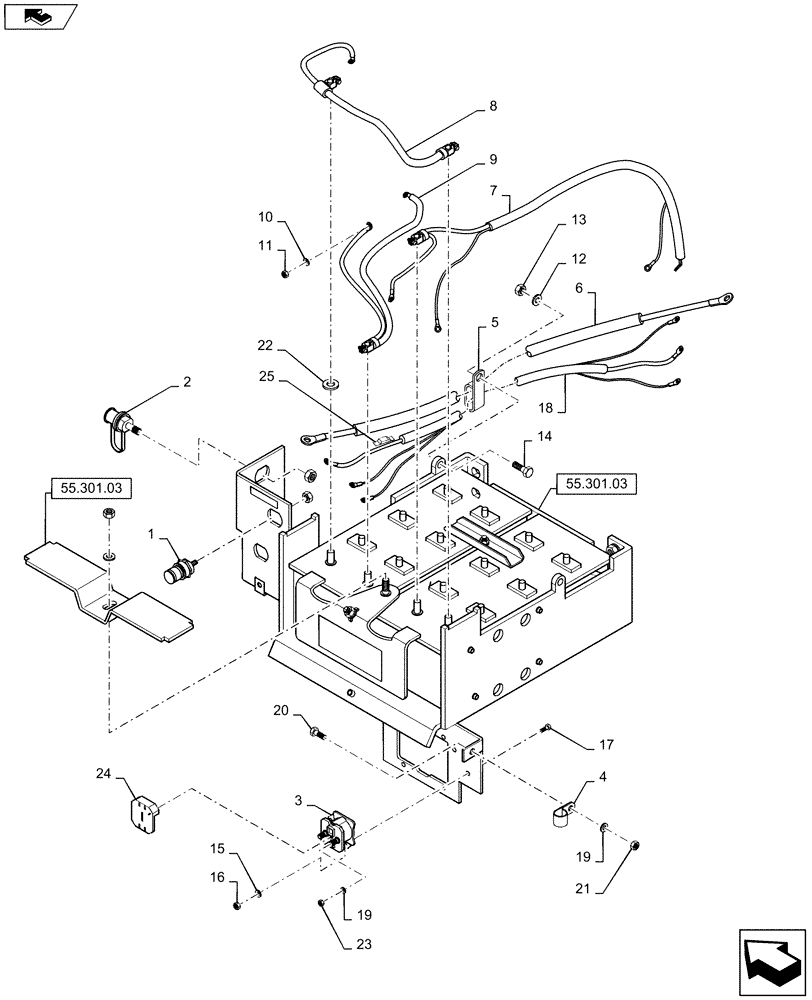

Запчасти Case IH QUADTRAC 550 (55.100.01[01]) - BATTERY CABLES - QUADTRAC (55) - ELECTRICAL SYSTEMS

1

84258928

TERMINAL CONNECTOR

Jump Start, Negeative, Long

1шт.

2

1964554C1

TERMINAL

Terminal, Jump Start, Positive, Long

1шт.

3

183038A1

SOLENOID

With Barrier

1шт.

4

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

For Equalizer Harness

1шт.

5

L111928

CLAMP

Double

1шт.

6

84195187

CABLE

13L Quad Alt B+

1шт.

7

84293996

CABLE

Starter HHP

1шт.

8

84158325

CABLE

Battery, Positive To Jump Or Disc

1шт.

9

84249433

CABLE

Battery Ground

1шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

11

829-1412

NUT,M12, Cl 10.9

8шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

832-10406

NUT,M6 x 1, Cl 8

2шт.

17

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

18

84218311

POS BATTERY CABLE

Cab Power HHP, Incl 25

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

22

87637103

WASHER

Lead Post Corrosion

2шт.

23

425-105

NUT,5/16"-18, G5

2шт.

24

178148A1

COVER

Solenoid Starting Switch

1шт.

25

87455597

FUSE,200A

200 A

1шт.
