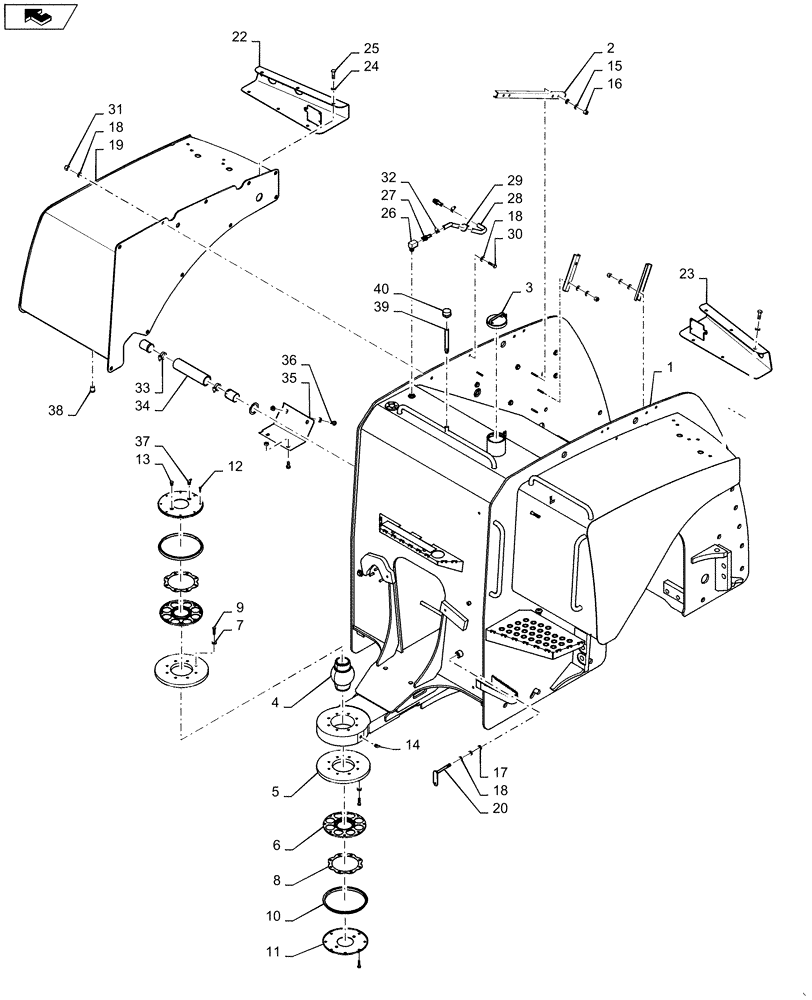

Запчасти Case IH QUADTRAC 550 (39.100.08[01]) - REAR FRAME / FUEL TANKS AND FENDERS - QUADTRAC 550 & 600 BSN ZBF126024 (39) - FRAMES AND BALLASTING

1

84150641

FRAME

Rear

1шт.

2

84348136

CHANNEL

Wire Guard

2шт.

3

87555106

LOCKABLE FUEL CAP

1шт.

4

87644205

BEARING ASSY,119mm ID x 139.7mm OD x 182mm W

Spherical Plain Extended

1шт.

5

84179787

RING

Retaining

2шт.

6

84151002

HOUSING

Assy

2шт.

7

432444A1

SPACER

Retainer

16шт.

8

87644212

RETAINING PLATE

2шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

10

84307902

RUBBER SEAL

Articulation Joint

2шт.

11

87644215

COVER

Articulation Joint

2шт.

12

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

13

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

3шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

17

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

Rubber

2шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

16шт.

19

84150644

FUEL TANK

RH, Saddle/Fender

1шт.

20

406390A1

HANDLE

Linkage Channel

1шт.

22

87499880

PLATE

Light Pod, LH

1шт.

23

87499888

PLATE

Light Pod, RH

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

26

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

1шт.

27

217-168

FITTING,1/2" Hose Barb x 1/2" Male NPTF

2шт.

28

84150655

HOSE

Formed Rubber

1шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

Black, 7 - 8 Nylon

1шт.

30

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

5шт.

31

832-10412

NUT,M12 x 1.75, Cl 8

10шт.

32

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

33

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

34

84247008

FUEL HOSE,50.8mm ID x 245mm L, SAE 30R6

Transfer

1шт.

35

84347299

COVER

Fuel Hose

1шт.

36

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

37

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

38

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

39

84387750

EXTENSION

BOSS, Fuel Tank Breather Extension

1шт.

40

90-7732T1

BREATHER

1шт.
