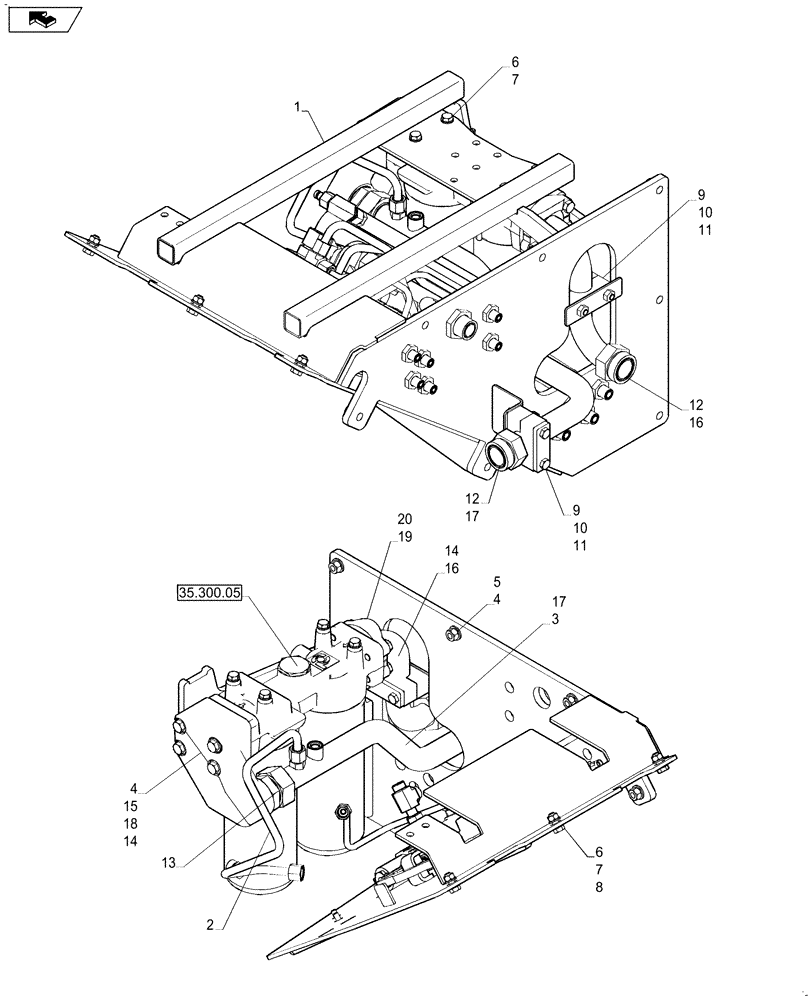

Запчасти Case IH QUADTRAC 550 (35.300.04) - HYDRAULICS - FILTER, FILTER SUPPORT, & PLUMBING, HIGH FLOW - QUADTRAC (35) - HYDRAULIC SYSTEMS

1

84212759

SUPPORT

1шт.

2

84212477

TUBE

Priority Tank

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

11шт.

5

829-1412

NUT,M12, Cl 10.9

7шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

7шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

9

8500621

BLOCK

Tube Mounting

2шт.

10

8500858

PLATE

Clamp Cover

2шт.

11

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

12

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2шт.

13

700-148

HYD CONNECTOR,2" - 12 Male ORFS x M48 x 2 Male ORB

1шт.

14

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

15

84191470

ADAPTER

Dual Filter

1шт.

16

84212498

TUBE

High Flow Filter Supply

1шт.

17

84298517

TUBE

High Flow Suction Supply, Serial Range: -ZCF132543

1шт.

17

47359663

HYD TUBE

High Flow Suction Supply, Start Serial: ZCF132543

1шт.

18

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

4шт.

19

A14141

FLANGE

Split Half Clamp 2.0

2шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
