Запчасти Case IH QUADTRAC 550 (35.128.03[02]) - 500 & 600 SERIES QUADTRAC AXLE - AXLE LUBE REAR, WITH AND WITHOUT DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

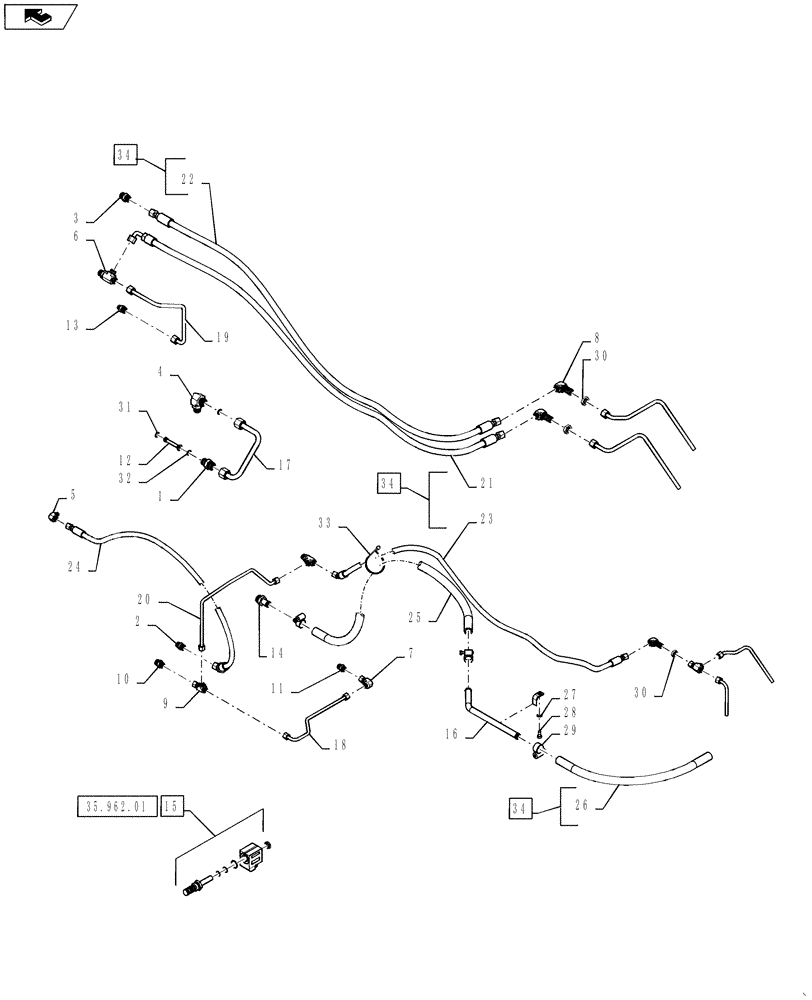

Схема запчастей Case IH QUADTRAC 550 - (35.128.03[02]) - 500 & 600 SERIES QUADTRAC AXLE - AXLE LUBE REAR, WITH AND WITHOUT DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
23
13
25
34
35.962.01
27
29
9
12
home
1
26
21
7
15
10
8
14
16
31
22
11
17
24
32
4
5
2
19
30
30
3
34
18
28
34
6
33
20

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

5

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

6

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

2шт.

7

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Axles W/Out Diff Lock Only

1шт.

8

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

3шт.

9

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

10

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief, 25 PSI, Start Serial: ZBF128637

1шт.

11

84214146

FITTING

Adapter, Orifice

1шт.

12

87400028

ORIFICE

Front Pinion Cover

1шт.

13

341195A1

ORIFICE

Axles W/ Diff Lock Only

1шт.

14

390348A1

STEM

STR BEAD HOSE 1.0ID X M33ORB

1шт.

15

384977A1

VALVE

Solenoid, Axles W/ Diff Lock Only

1шт.

16

84217058

HYD TUBE

Rear Axle To Tank

1шт.

17

84214260

TUBE

Axle Lube Crossover

1шт.

18

84214264

TUBE

Axle Lube Crossover

1шт.

19

413340A1

TUBE

Axles W/ Diff Lock Only

1шт.

20

84217671

HYD TUBE

Axle Lube Crossover

1шт.

21

84281557

HOSE ASSY.

Park Brake Pressure

1шт.

22

84249106

HOSE ASSY.

Service Brake, Rear

1шт.

23

84281558

HOSE ASSY.

Axle Lube Pressure

1шт.

24

84244562

HOSE ASSY.,12.7mm ID x 1721mm L, SAE 100R1

Aux Drain

1шт.

25

353649A1

HOSE,1.00" ID x 56.00"

1шт.

26

87602668

HOSE

1" ID x 32" OAL

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

29

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

4шт.

30

701-903

NUT,13/16" - 16

3шт.

31

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

32

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Qty 2 Are Used W/ Ref 34

3шт.

34

387840A1

SLEEVE

Protective, Covers Ref. 21, 22, 23, & 26

1шт.

Выбрано товаров: 34
