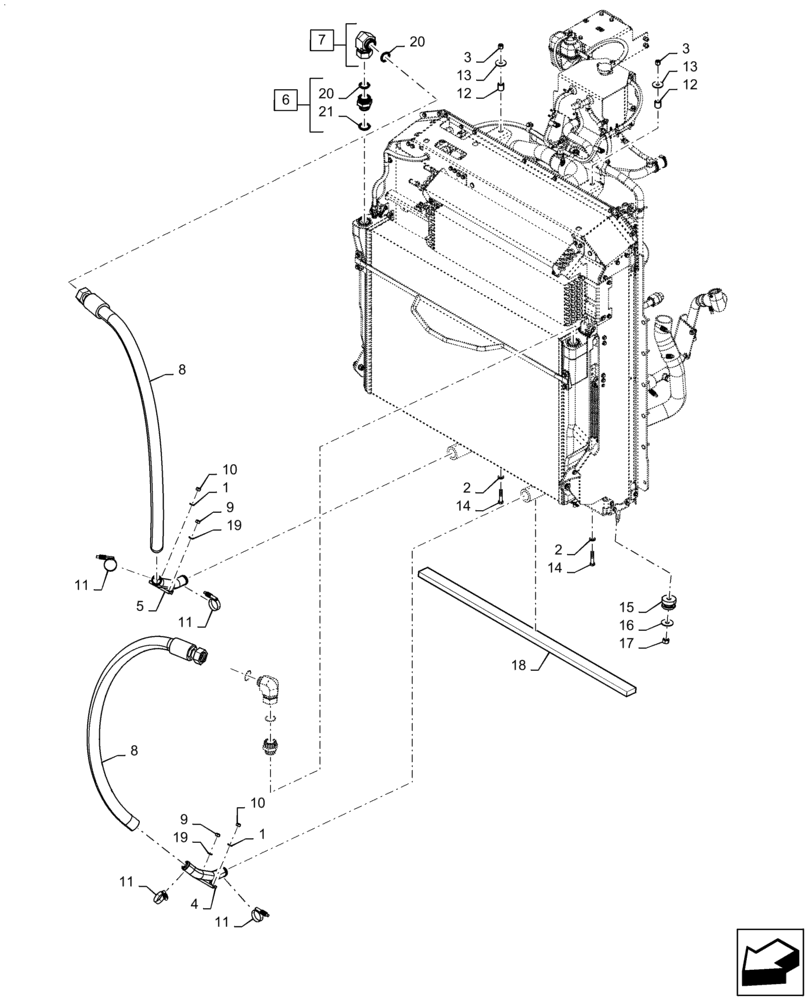

Запчасти Case IH QUADTRAC 540 (10.400.AY[01]) - RADIATOR HOSE, 540, 580, 620 (10) - ENGINE

1

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

3

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

4

47566966

TUBE

LH, Cooler Transition

1шт.

5

47566876

TUBE

RH, Cooler Transition

1шт.

6

86997863

HYD CONNECTOR,2" - 12 ORFS x M42 x 2 ORB

Incl 20 - 21

2шт.

7

84191685

ELBOW UNION,2" - 12 ORFS x 2" - 12

Incl 20

2шт.

8

47619859

RADIATOR HOSE,38mm ID x 1400mm L, SAE 100R4

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

254026A1

HOSE CLAMP,44.45mm - 66.67mm

4шт.

12

CASL13142

BUSHING

Rubber

2шт.

13

435433A1

WASHER,13.5mm ID x 44.5mm OD x 3mm Thick

2шт.

14

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

15

86550698

INSULATOR

Mount

2шт.

16

6100024

WASHER,17mm ID x 50mm OD x 3mm Thk

4шт.

17

829-1416

NUT,M16, Cl 10

2шт.

18

47458712

SEALING STRIP

Frame

1шт.

19

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

20

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

4шт.

21

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.
