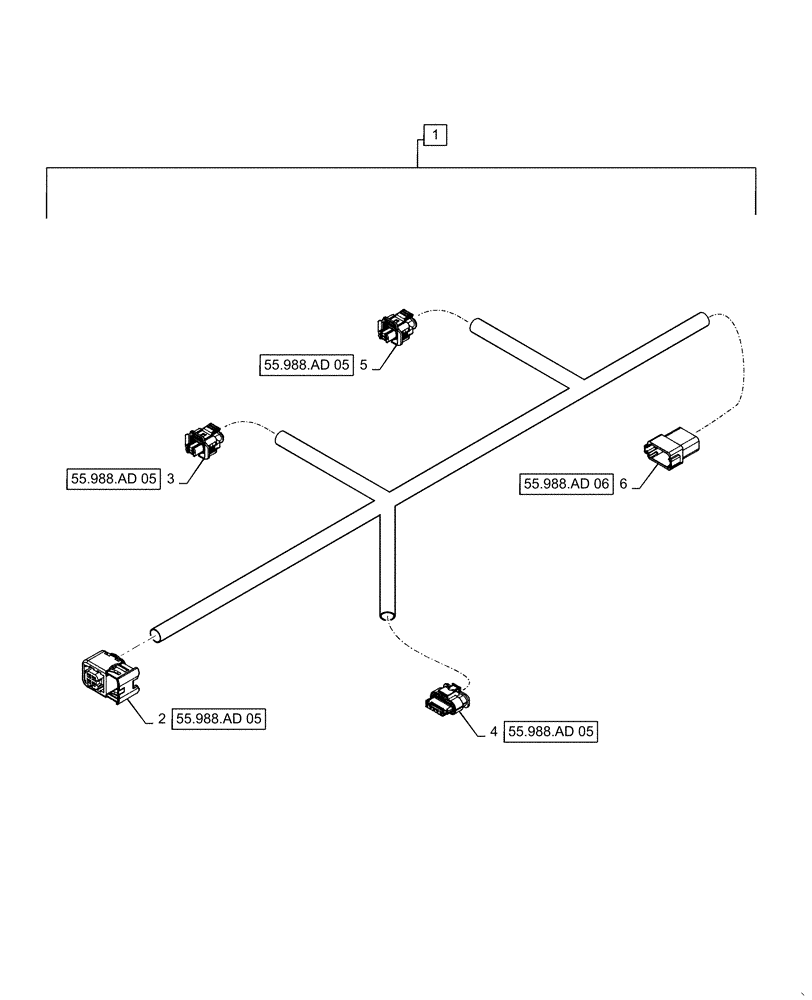

Запчасти Case IH QUADTRAC 540 (55.988.AD[07]) - SCR EXHAUST SYSTEM HARNESS, 540, 580, 620 (55) - ELECTRICAL SYSTEMS

1

47471966

WIRE HARNESS

Engine, Incl 2 - 6

1шт.

2

84146686

ELEC CONNECTOR,Female, 4 Cavities

NH3 Sensor, C187

1шт.

2

84152584

TERMINAL,Tin, 0.50 - 1.00mm

NH3 Sensor, C187

4шт.

2

84607242

SEAL

NH3 Sensor, C187

4шт.

3

87709793

WIRE CONNECTOR,Female, 2 Cavities

SCR Downstream Temperature Sensor, C193

1шт.

3

47399877

TERMINAL

SCR Downstream Temperature Sensor, C193

2шт.

3

87705975

SEAL

SCR Downstream Temperature Sensor, C193

2шт.

4

84190317

WIRE CONNECTOR,Female, 5 Cavities

Downstream NOX Sensor, C192

1шт.

4

87709655

BLANK-OFF PLUG

Downstream NOX Sensor, C192

1шт.

4

47400436

TERMINAL

Downstream NOX Sensor, C192

2шт.

4

84142302

SEAL

Downstream NOX Sensor, C192

2шт.

4

47400437

TERMINAL

Downstream NOX Sensor, C192

2шт.

4

84142302

SEAL

Downstream NOX Sensor, C192

2шт.

5

87709793

WIRE CONNECTOR,Female, 2 Cavities

SCR Upstream Temperature Sensor, C191

1шт.

5

47399877

TERMINAL

SCR Upstream Temperature Sensor, C191

2шт.

5

87705975

SEAL

SCR Upstream Temperature Sensor, C191

2шт.

6

84278761

ELEC CONNECTOR

To SCR Chassis Harness, C182F

1шт.

6

87698541

LOCKING TAB,Wedge Lock, 12-Pin

To SCR Chassis Harness, C182F

1шт.

6

87695623

ELEC. TERMINAL PIN

To SCR Chassis Harness, C182F

12шт.
