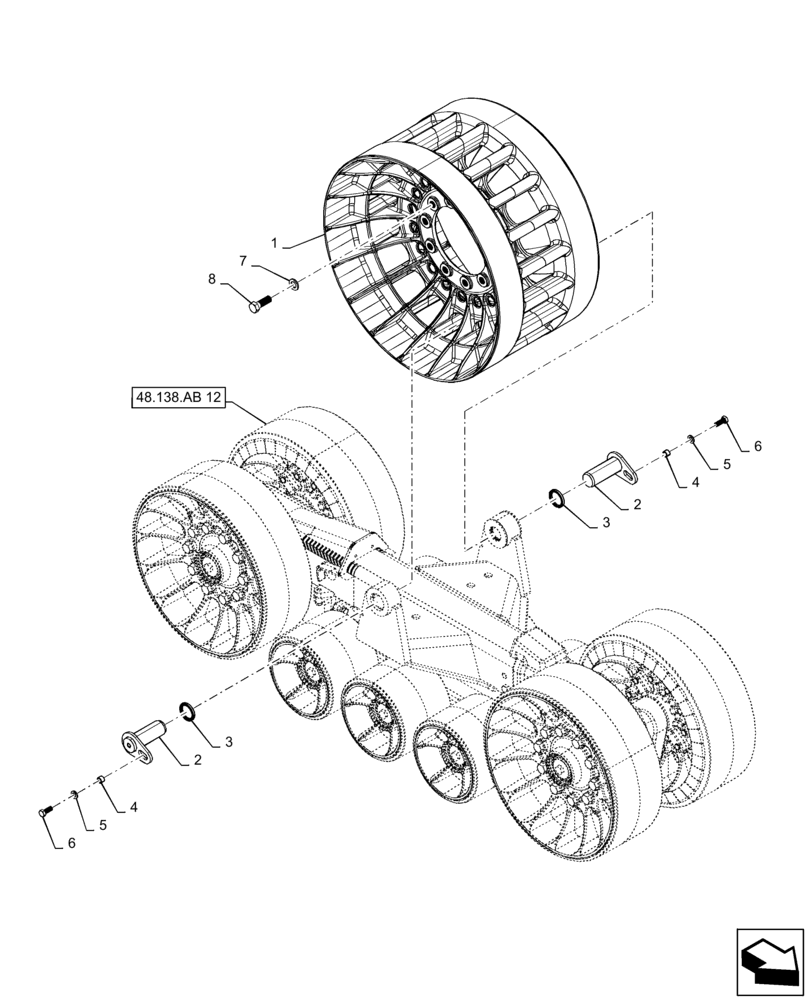

Запчасти Case IH QUADTRAC 540 (48.138.AB[11]) - TRACK ASSY, UNDERCARRIAGE, SCRAPER VERSION (48) - TRACKS & TRACK SUSPENSION

1

87498856

WHEEL,281.2mm ID x 910mm OD x 523mm W

Drive

4шт.

2

87423822

PIN,57.06mm OD x 167mm L

Drive Wheel

8шт.

3

87423202

THRUST BEARING,58mm ID x 115mm OD x 5mm Thk

8шт.

4

87423819

SPACER

ID 16.7mm OD 22.2mm

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

8шт.

7

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

40шт.

8

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

40шт.
