Запчасти Case IH QUADTRAC 540 (35.600.AI[02]) - HIGH FLOW HYDRAULIC PUMP (ASN ZGF309205) (35) - HYDRAULIC SYSTEMS

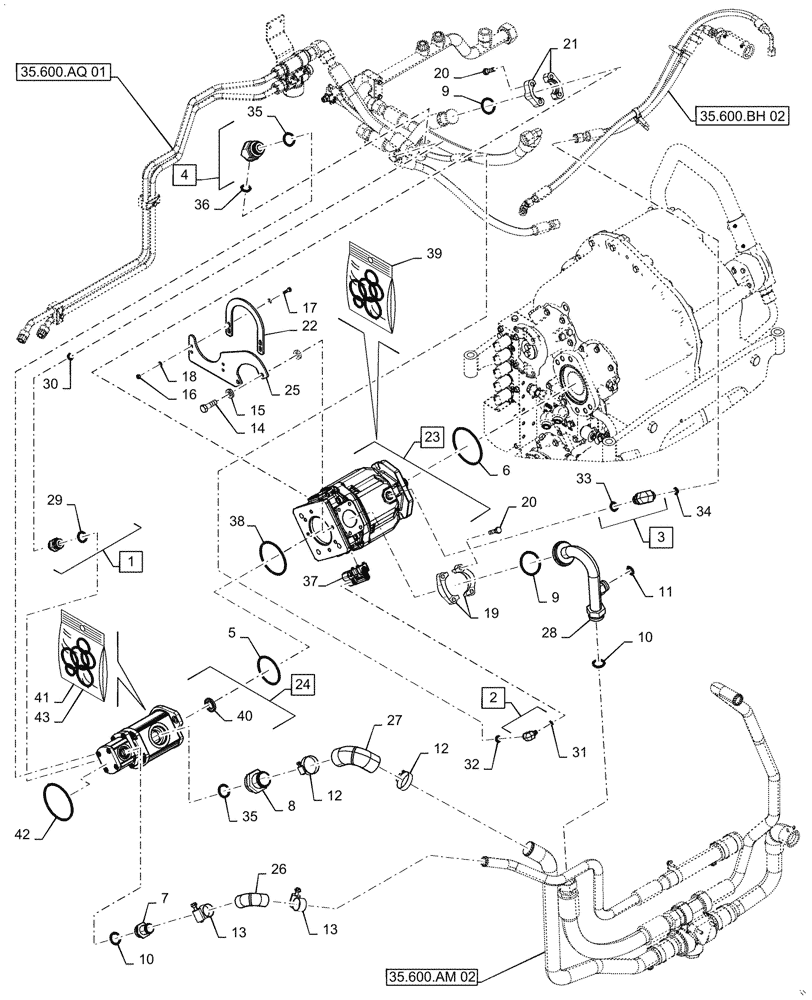

Схема запчастей Case IH QUADTRAC 540 - (35.600.AI[02]) - HIGH FLOW HYDRAULIC PUMP (ASN ZGF309205) (35) - HYDRAULIC SYSTEMS
35.600.aq 01
42
6
9
19
39
38
21
18
40
43
36
26
13
20
25
37
34
41
32
8
24
15
10
28
23
20
30
7
4
1
17
22
10
31
2
14
5
12
9
35
12
27
3
29
16
11
35
33
13
35.600.bh 02
35.600.am 02

Артикул

Название

Примечание

Количество

1

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 29

1шт.

2

9843592

ELBOW,11/16"-16 UN-2A x 7/16"-20UN-2A

Incl 31

1шт.

3

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

Incl 33

1шт.

4

201-371

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl 35

1шт.

5

47545064

O-RING,100mm ID x 3mm Thk, Cl 5

100mm ID x 3mm Thk, Cl 5

1шт.

6

510828

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

7

86544161

FITTING,1 1/4" Hose X 1 5/8"-12 ORB, Beaded

1шт.

8

84188435

HYD CONNECTOR,2-1/2” - 12 x 2-15/16” L

2-1/2" - 12 OD x 2-15/16" L

1шт.

9

87421143

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

10

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2шт.

11

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

12

214-1536

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm, W/ Liner

2шт.

13

87487830

CLAMP,0.81" - 1.75"

2шт.

14

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

15

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

16

43362

NUT,M8 x 1.25, Cl 10

4шт.

17

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

19

70921599

CLAMP

2-1/2" ID, 3000 P.S.I.

2шт.

20

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

8шт.

21

86980733

CLAMP

Split Flange

2шт.

22

47945804

Driveshaft Guard, Top

BRACKET

1шт.

23

47732008

HYDRAULIC PUMP

Piston, 100CC, Incl 37, 38

1шт.

24

84130469

HYDRAULIC PUMP,110 CC

Axle/Main Charge, Incl 40, 42

1шт.

25

47945802

Driveshaft Guard, Bottom

BRACKET

1шт.

26

84180096

PLASTIC-RUBBER TUBE

1-1/4" ID

1шт.

27

84180095

HOSE

Elbow, 2" ID

1шт.

28

84288292

TUBE

Hydraulic Pump, Suction, PS4, High Capacity

1шт.

29

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

31

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

32

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

35

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

36

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

37

47644696

COMPENSATOR

W/O LS Drain

1шт.

38

436514A1

O-RING

1шт.

39

47951813

SEAL KIT

Piston Pump, Services 23

1шт.

40

84332623

SHAFT SEAL

Front, Pump

1шт.

41

84332625

SEAL KIT

Front Pump, Services 24

1шт.

42

84332626

SEAL

Rear Pump

1шт.

43

84332632

KIT

Rear Pump, Services 24

1шт.

Выбрано товаров: 43
