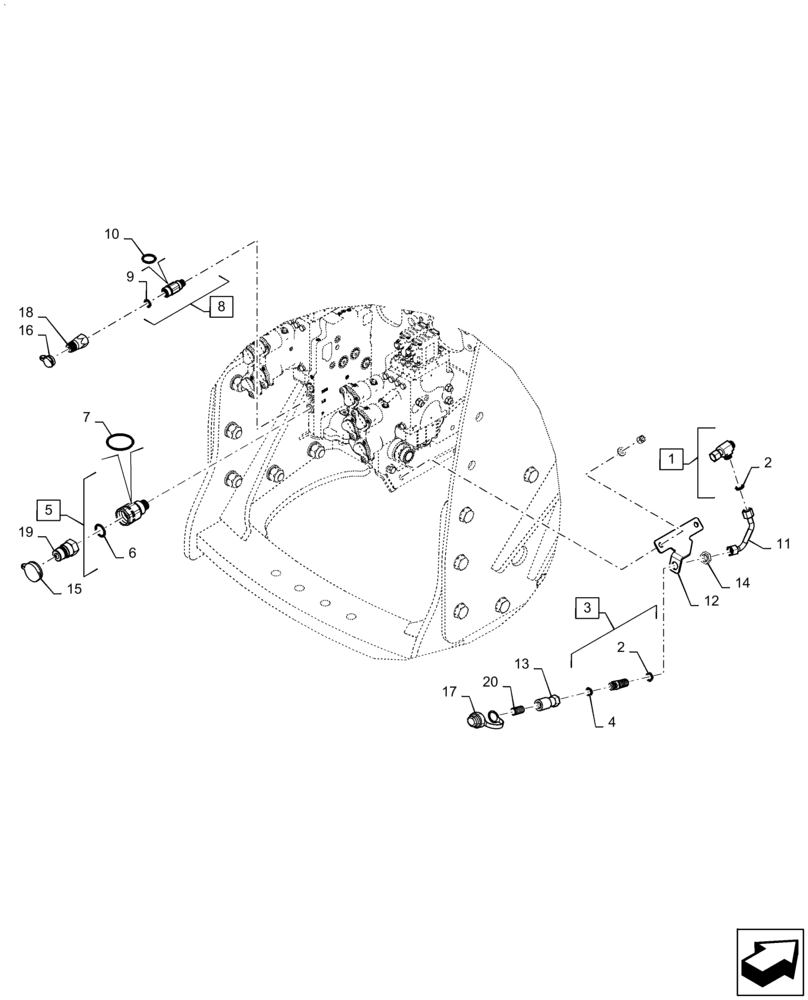

Запчасти Case IH QUADTRAC 540 (35.204.BB[03]) - POWER BEYOND COUPLERS (35) - HYDRAULIC SYSTEMS

1

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 2

1шт.

2

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16" ORFS

3шт.

3

436249A1

FITTING

3/4" - 16 ORB x 13/16" - 14 ORFS, Incl 2, 4

1шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4" ORB

1шт.

5

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4" Auxiliary Coupler, Incl 6 - 7

2шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

7

445015A1

SEAL KIT

3/4" Coupler, Incl Oring, Seal, And Back Up Washer

2шт.

8

294603A1

BODY

1/4" Auxiliary Coupler, Incl 9 - 10

1шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

445014A1

SEAL KIT

1/4" Coupler, Incl Oring, Seal, And Back Up Washer

1шт.

11

84305996

TUBE

Motor Return

1шт.

12

442477A2

BRACKET

Motor Drain

1шт.

13

385357A1

COUPLING

Female Disconnect

1шт.

14

701-903

NUT,13/16" - 16

1шт.

15

334216A1

CAP

Dust, 3/4" Coupler

2шт.

16

334218A1

CAP

Dust, 1/4" Coupler

1шт.

17

86539389

DUST CAP,29.2mm ID

Female Coupler

1шт.

18

347756A1

QUICK MALE COUPLING,ISO 6.3, 1/4" x 9/16" - 18, Fem SAE ORB

1шт.

19

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

2шт.

20

385358A1

QUICK MALE COUPLING,3/8"

3/8" Male Quick Disconnect

1шт.
