Запчасти Case IH QUADTRAC 540 (33.110.BJ[01]) - PARK BRAKE LINES (33) - BRAKES & CONTROLS

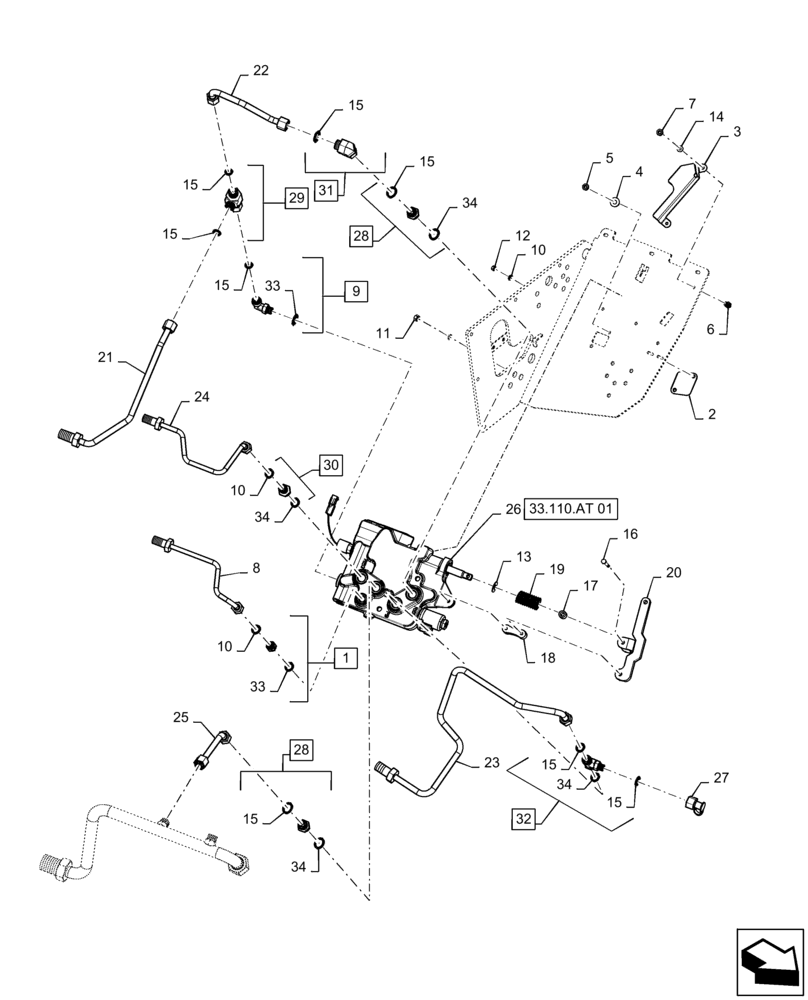

Схема запчастей Case IH QUADTRAC 540 - (33.110.BJ[01]) - PARK BRAKE LINES (33) - BRAKES & CONTROLS
33
8
33.110.at 01
22
11
3
27
34
30
10
15
17
12
10
28
34
1
23
15
2
15
6
19
31
15
16
25
13
34
15
29
9
7
10
34
18
5
28
32
23
15
20
24
21
26
33
15
14
4
15

Артикул

Название

Примечание

Количество

1

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 10, 33

1шт.

2

84410170

BRACKET

Cover

1шт.

3

84408260

BRACKET

Park Brake Lever Cover

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

47427416

HYD TUBE

Park Brake Drain

1шт.

9

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 15, 33

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

11

701-903

NUT,13/16" - 16

2шт.

12

701-909

NUT,11/16" - 16

2шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

14

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

10шт.

16

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

1шт.

17

392748A1

SPACER

9.1mm x 15.9mm x 13.5mm

2шт.

18

242-4412

CHAIN LINK

Link

1шт.

19

361897A1

SPRING

Compression, 115mm x 27.5mm

1шт.

20

47401718

ARM

Tow Valve

1шт.

21

84513984

TUBE

Tank Return

1шт.

22

84513974

TUBE

Tank Return

1шт.

23

84212500

TUBE

Park Brake Pressure

1шт.

24

84212475

TUBE

Pilot Pressue

1шт.

25

84212473

TUBE

Tow Pressure

1шт.

26

84495761

BRAKE VALVE

Tow/Park Brake, Serial Range: ZEF300001-ZFF304661

1шт.

26

47781505

BRAKE VALVE

Tow/Park Brake, Start Serial: ZFF304662

1шт.

27

190316A1

COUPLING

Diagnostic

1шт.

28

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 15, 34

2шт.

29

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 15

1шт.

30

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 10, 34

1шт.

31

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 15

1шт.

32

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 15, 34

1шт.

33

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

34

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

Выбрано товаров: 35
