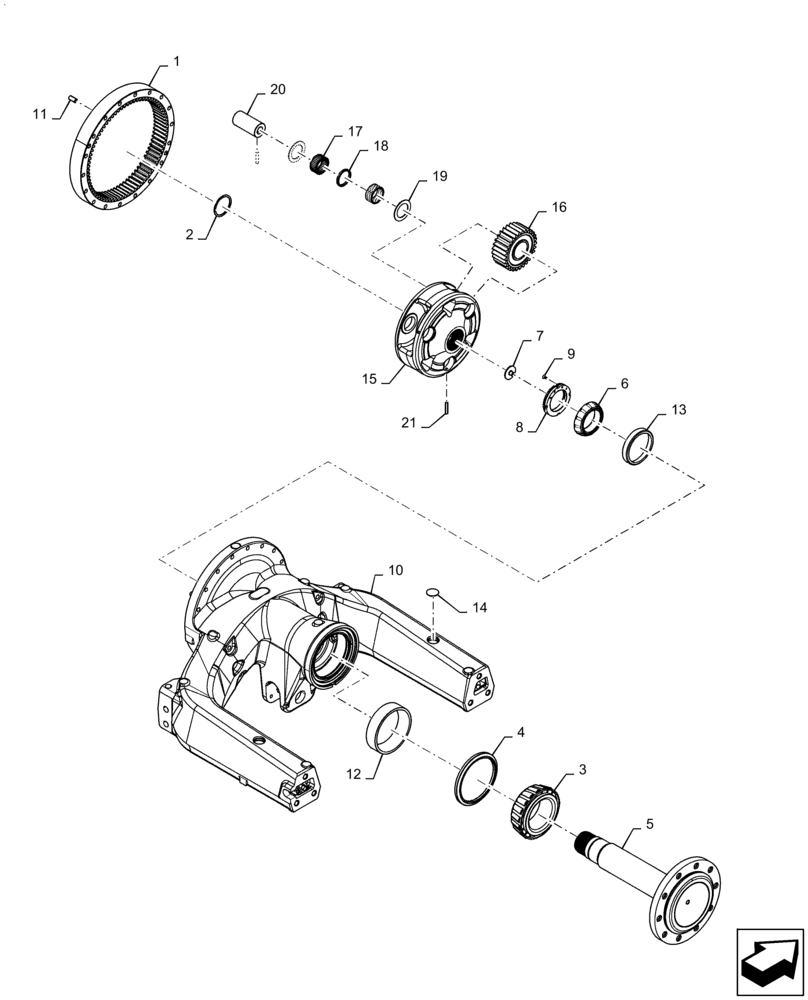

Запчасти Case IH QUADTRAC 540 (27.610.AA[02]) - AXLE CARRIER ASSY, 450, 470, 500, 540 (27) - REAR AXLE SYSTEM

1

310695A1

RING GEAR,77T

77 Teeth

1шт.

2

101-11350

SNAP RING,#350, Ext

1шт.

3

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

4

369532A2

SEAL,194mm ID x 238.76mm OD x 47mm Thk

Face

1шт.

5

87441344

SHAFT

Track Axle

1шт.

6

64370H

BEARING, ROLLER,101.6mm ID x 36.12mm W

1шт.

7

1981270C1

INSERT

Axle Wear

1шт.

8

87472512

BEARING LOCK NUT

M100 x 2

1шт.

9

84129048

HEX SOC SCREW,FLAT, M8 x 16mm, Cl 10.9

4шт.

10

87308304

AXLE CARRIER

Track Axle

1шт.

11

837-16040

DOWEL,M16 x 40

2шт.

12

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

13

64371H0

BEARING ASSY,157.16mm OD x 26.19mm W

1шт.

14

87326609

PLUG,Exp, 2"

2шт.

15

47651213

CARRIER

Planet Gear

1шт.

16

310694A2

PLANETARY GEAR,29T

29 Teeth

3шт.

17

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

198шт.

18

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

Needle Bearing, Planet

3шт.

19

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

Gear, Planet

6шт.

20

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

Planet Gear

3шт.

21

47621938

PIN

Coiled, Spring 8mm OD x 32mm

3шт.
