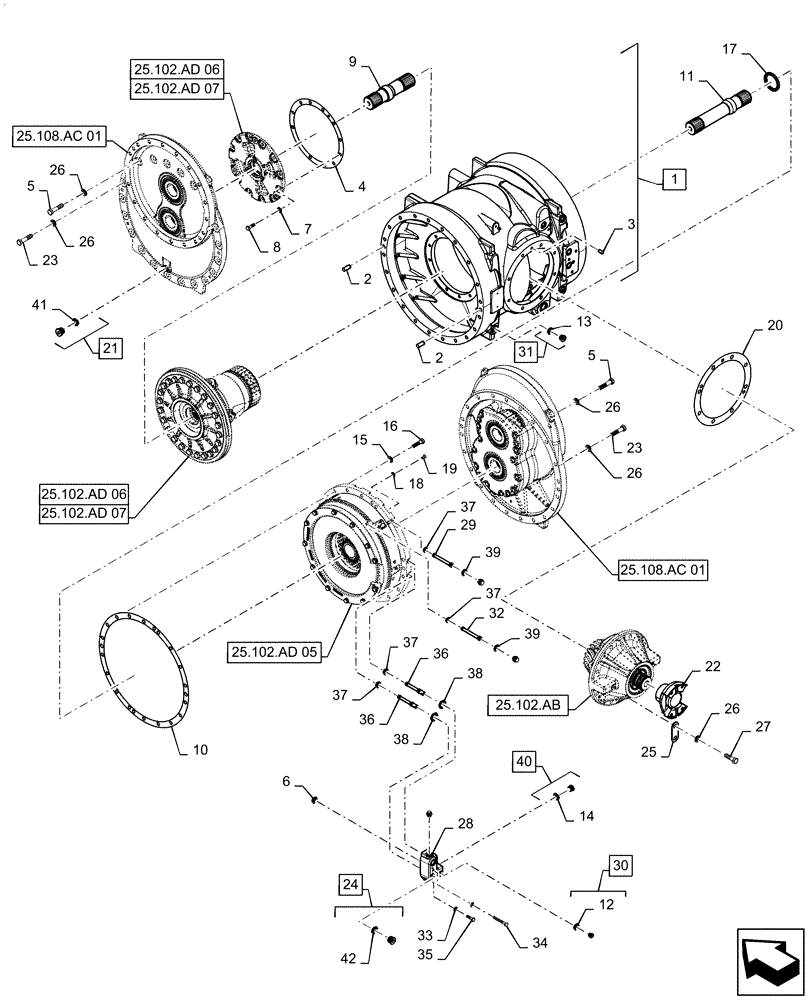

Запчасти Case IH QUADTRAC 540 (25.102.AD[02]) - FRONT AXLE CARRIER. 450, 470, 500, 540, AFTER AXLE SN AJB0298121 (25) - FRONT AXLE SYSTEM

1

47436492

HOUSING

Center, Front Axle, Incl 2 - 3

1шт.

2

837-16040

DOWEL,M16 x 40

6шт.

3

837-12025

DOWEL,M12 x 25

1шт.

4

47423119

SHIM,290mm ID x 345mm OD x 0.508mm Thk

1шт.

4

47423118

SHIM,290mm ID x 345mm OD x 0.127mm Thk

1шт.

4

47423117

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

4

47423116

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

5

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

12шт.

6

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

7

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

8

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

9

279844A2

SHAFT,271mm L

Drive, Short

1шт.

10

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

10

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

10

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

10

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

11

279843A2

SHAFT,364mm L

Drive, Long

1шт.

12

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

14

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

18шт.

16

828-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

18шт.

17

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

18

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

19

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

20

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

20

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

20

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

20

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

21

221578A1

PLUG,M18 x 1.5 ORB

Incl 41

2шт.

22

284184A1

YOKE

8.5C, Sliding, 500 Series Axle

1шт.

23

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

30шт.

24

221580A1

PLUG,M27 x 2 ORB

Incl 42

1шт.

25

84217051

BRACKET

Axle

1шт.

26

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

38шт.

27

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

28

47434754

MANIFOLD

Axle Lube

1шт.

29

298567A1

TUBE,11.85 mm OD, 156 mm Length

1шт.

30

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 12

1шт.

31

221579A1

PLUG,M22 x 1.5 ORB

Incl 13

1шт.

32

84468365

TUBE

Service Breaker Jumper

1шт.

33

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

34

828-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

1шт.

35

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

36

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

2шт.

37

47795329

O-RING,0.07" Thk x 0.426" ID, -13, Cl 8, Duro 90

4шт.

38

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

39

47795330

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

4шт.

40

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 14

1шт.

41

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

42

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
