Запчасти Case IH QUADTRAC 540 (25.102.AD[01]) - FRONT AXLE CARRIER. 450, 470, 500, 540, BEFORE AXLE SN AJB0298120 (25) - FRONT AXLE SYSTEM

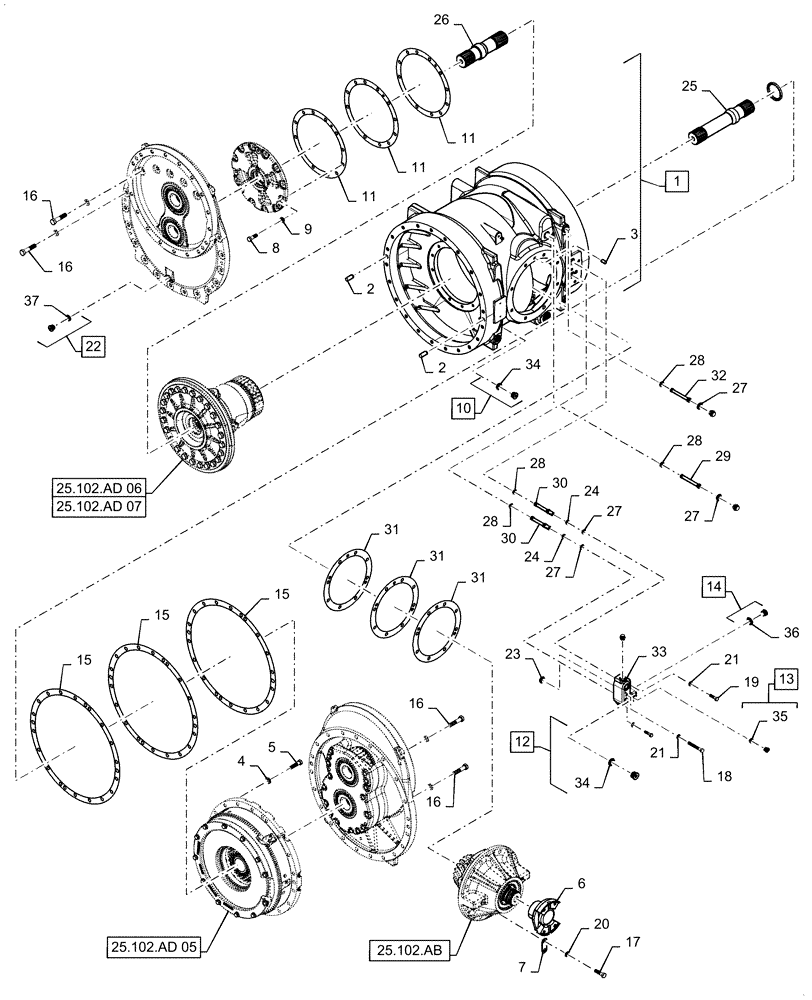

Схема запчастей Case IH QUADTRAC 540 - (25.102.AD[01]) - FRONT AXLE CARRIER. 450, 470, 500, 540, BEFORE AXLE SN AJB0298120 (25) - FRONT AXLE SYSTEM
16
27
29
28
7
35
31
27
32
33
25.102.ad 07
18
11
13
15
2
28
14
37
21
22
12
31
20
23
11
25.102.ab
34
16
30
28
28
16
11
21
34
3
36
27
1
15
31
25.102.ad 05
4
8
15
5
6
26
24
27
25.102.ad 06
24
30
9
2
25
19
16
17
10

Артикул

Название

Примечание

Количество

1

84259761

HOUSING

Incl 2 - 3

1шт.

2

837-16040

DOWEL,M16 x 40

6шт.

3

837-12025

DOWEL,M12 x 25

1шт.

4

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

18шт.

5

828-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

18шт.

6

284184A1

YOKE

Front Axle

1шт.

7

84217051

BRACKET

Front Axle

1шт.

8

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

9

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

10

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

Incl 34

1шт.

11

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

11

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

11

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

1шт.

11

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

1шт.

12

221579A1

PLUG,M22 x 1.5 ORB

Incl 34

1шт.

13

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 35

1шт.

14

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 36

1шт.

15

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

15

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

15

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

15

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

16

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

32шт.

17

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

18

828-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

1шт.

19

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

20

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

22

221578A1

PLUG,M18 x 1.5 ORB

Incl 37

2шт.

23

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

24

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

25

279843A2

SHAFT,364mm L

Drive, Long

1шт.

26

279844A2

SHAFT,271mm L

Drive, Short

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

4шт.

28

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

29

298567A1

TUBE,11.85 mm OD, 156 mm Length

1шт.

30

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

2шт.

31

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

31

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

31

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

31

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

32

84468365

TUBE

Service Breaker Jumper

1шт.

33

428862A1

MANIFOLD

Axle Lube

1шт.

34

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

35

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

36

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 46
