Запчасти Case IH QUADTRAC 500 (10.500.AD[04]) - DEF/ADBLUE™ TANK, HEATER LINES, 470, 500 (10) - ENGINE

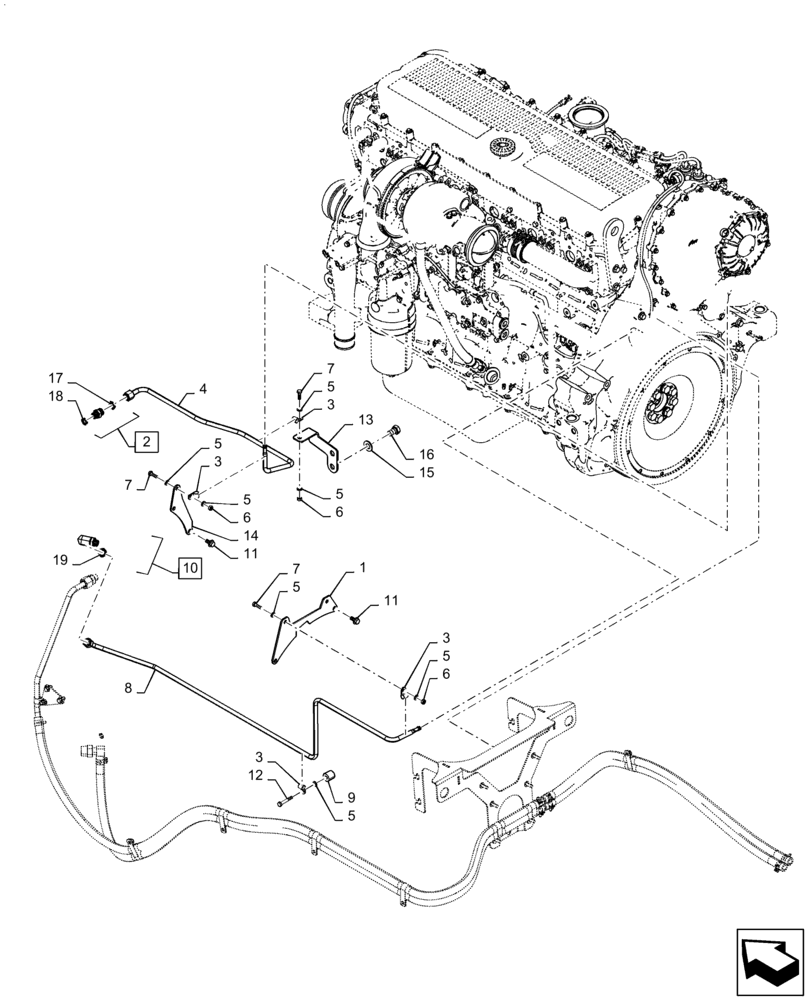

Схема запчастей Case IH QUADTRAC 500 - (10.500.AD[04]) - DEF/ADBLUE™ TANK, HEATER LINES, 470, 500 (10) - ENGINE
5
5
19
3
7
5
6
5
6
18
5
15
3
11
7
7
5
3
2
14
4
11
10
9
16
3
12
17
6
5
1
13
8

Артикул

Название

Примечание

Количество

1

47409560

BRACKET

Front Tube Support

1шт.

2

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

M18 - 1.5 ORB x 13/16" - 16 ORFS, Incl 17 - 18

1шт.

3

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

5шт.

4

47408432

HEATER TUBE

SCR Heater Supply

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

8

47372529

TUBE

SCR Heater Return

1шт.

9

8500571

SPACER,10mm ID x 25.4mm OD x 25mm L

Block

2шт.

10

84319913

HYD CONNECTOR,13/16-16 ORFS, 1/2-14 BSPP ORB

Incl 19

1шт.

11

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

12

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

13

47408643

BRACKET

SCR Heater Supply Support

1шт.

14

47489404

BRACKET

SCR Heater Supply Support

1шт.

15

895-15016

WASHER,M16 x 34 x 3

2шт.

16

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

17

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

18

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Выбрано товаров: 19
