Запчасти Case IH QUADTRAC 500 (90.150.BJ[03]) - CAB, SKIRT, LUXURY CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

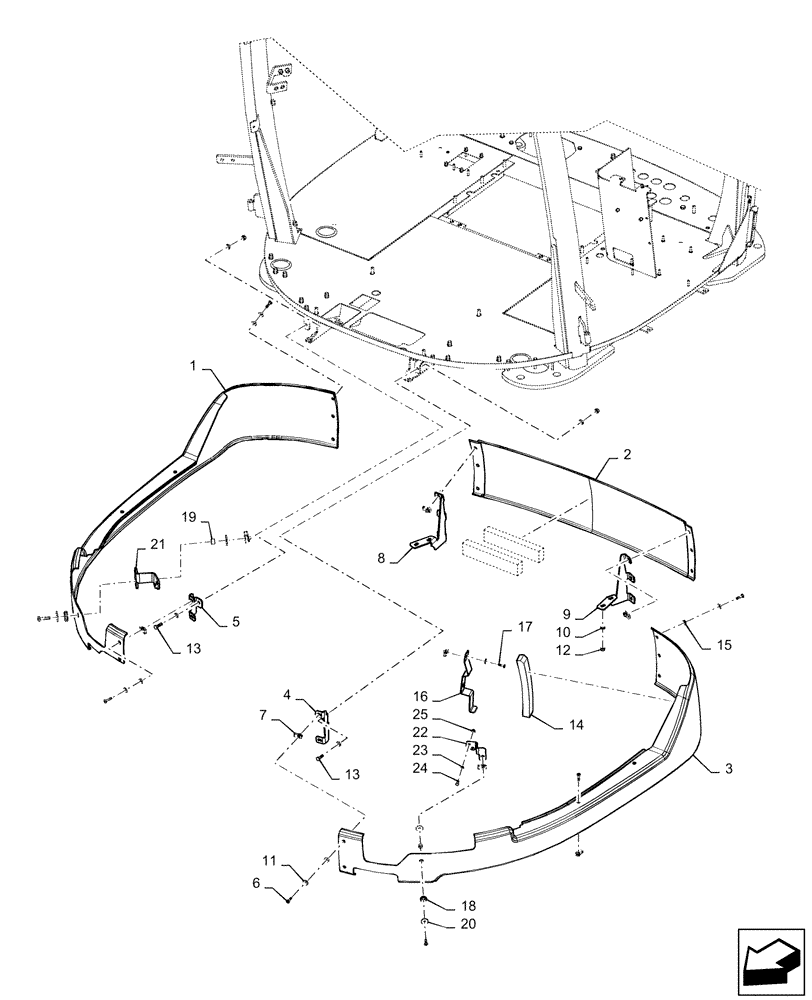

Схема запчастей Case IH QUADTRAC 500 - (90.150.BJ[03]) - CAB, SKIRT, LUXURY CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
10
18
7
11
9
23
19
8
5
22
16
2
13
17
13
25
3
24
1
14
21
4
20
12
6

Артикул

Название

Примечание

Количество

1

47592255

SKIRT

Luxury, RH

1шт.

2

84598208

SKIRT COVER

Luxury, Rear

1шт.

3

47592252

SKIRT

Luxury, LH

1шт.

4

84372061

BRACKET, SUPPORTING

Front Skirt Mounting, LH

1шт.

5

84478662

BRACKET

Front Skirt Mounting, RH

1шт.

6

47447686

SCREW,Phillips Drive, Pan HD, M6 x 25mm, Cl 4.8

16шт.

7

404882A1

SPRING NUT,M6

20шт.

8

84371547

BRACKET, SUPPORTING

Rear Skirt, RH

1шт.

9

84371548

BRACKET, SUPPORTING

Rear Skirt, LH

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

14шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

14

403325A2

FOAM,30mm x 50mm x 250mm

Spacer

4шт.

15

47447682

RUBBER WASHER,5.8mm ID x 15.9mm OD x 2.4mm Thk

10шт.

16

47448852

BRACKET

Skirt, Side

2шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

18

47760928

GROMMET,12.6mm ID x 24.6mm OD x 9mm Thk

2шт.

19

60-5021T1

SPACER,0.282" ID x 0.500" OD x 0.312" Thk

2шт.

20

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

21

84386880

BRACKET

Front Skirt Mounting, RH

1шт.

22

84386878

BRACKET

Front Skirt Mounting, LH

1шт.

23

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

24

892-11006

LOCK WASHER,M6

4шт.

25

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

Выбрано товаров: 25
