Запчасти Case IH QUADTRAC 500 (10.202.BD[01]) - AIR PRE-CLEANER ASSY, 470, 500 (10) - ENGINE

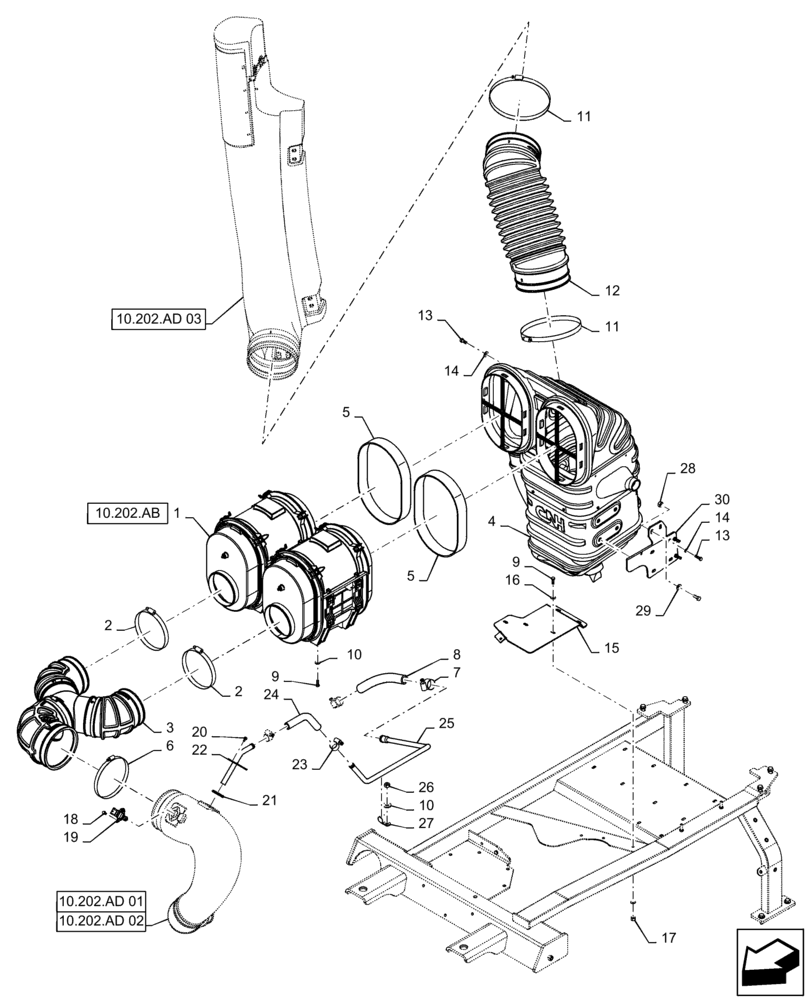

Схема запчастей Case IH QUADTRAC 500 - (10.202.BD[01]) - AIR PRE-CLEANER ASSY, 470, 500 (10) - ENGINE
2
2
7
3
11
8
10.202.ad 02
12
11
28
25
13
21
14
5
20
10.202.ab
10
9
18
22
15
10.202.ad 03
29
13
1
26
17
14
19
4
27
16
6
10.202.ad 01
30
5
9
10
23
24

Артикул

Название

Примечание

Количество

1

47606045

AIR CLEANER

Filter Assembly

2шт.

2

84319920

HOSE CLAMP,146mm - 168mm

Air Cleaner To Y-Tube

2шт.

3

84579314

AIR DUCT

Y-Tube Assembly

1шт.

4

47375143

PLENUM

Air Precleaner, Serial Range: -ZEF301147

1шт.

4

47633287

PLENUM

Air Precleaner, Start Serial: ZEF301148

1шт.

5

84151486

RUBBER SLEEVE

Precleaner to Air Filter Assembly

2шт.

6

84246771

CLAMP,7-1/4" - 8-1/8", Worm Gear

Y_Hose To Plenum Air Intake Tube

1шт.

7

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

8

47522926

HOSE

Breather To Breather

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

13шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

10шт.

11

84270867

HOSE CLAMP,210mm - 232mm

Bellows Air Intake

2шт.

12

47386152

BELLOWS

Air Inlet to Precleaner Tube

1шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

15

47652683

HEAT SHIELD

Air Filter Mounting Bracket

1шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

18

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

19

87482355

SENSOR

Plenum Air Humidity And Temperature

1шт.

20

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

2шт.

21

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

22

84599984

PIPE

CCV Return

1шт.

23

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

24

47568793

HOSE

Breather To Breather

1шт.

25

47568794

TUBE

Air Intake Vacuum

1шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

27

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

30

84584954

BRACKET

Precleaner, Assy

1шт.

Выбрано товаров: 31
