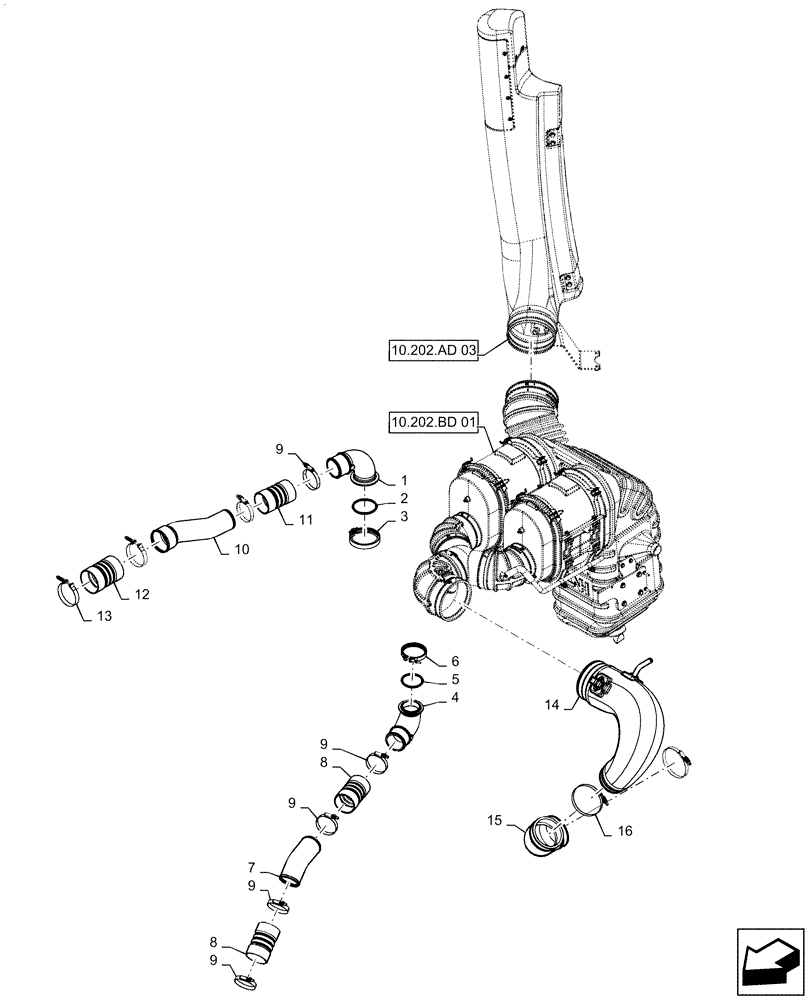

Запчасти Case IH QUADTRAC 500 (10.202.AD[01]) - AIR INTAKE - AIR CLEANER TO ENGINE - 470, 500 (10) - ENGINE

1

84223171

ELBOW

Air Intake Connection

1шт.

2

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

3

84223170

CLAMP,125mm ID, V-Band

V-Band, Charge Air To Engine Tube

1шт.

4

84293344

ELBOW

Air Intake

1шт.

5

47764790

O-RING,82mm ID x 2.6mm Thk, 70 Duro

1шт.

6

87434593

CLAMP,104.39mm - 105.66mm

V Band, Turbo Outlet Hose

1шт.

7

47393443

AIR INTAKE TUBE

Cooler To Intake Manifold

1шт.

8

47435143

BELLOWS

Charge Air Cooler

2шт.

9

47616394

CLAMP,83mm - 105mm, Worm Gear

Tubro Outlet Hose

6шт.

10

84290906

AIR INTAKE TUBE

Charge Air Engine Intake

1шт.

11

47439271

BELLOWS

Charge Air Cooler Hose

1шт.

12

47435144

BELLOWS

Charge Air Cooler Hose

1шт.

13

84183778

SPECIAL CLAMP,4.06" - 4.37"

Charge Air Cooler To Engine Intake Hose

2шт.

14

84556210

PLENUM

Air Intake Tube

1шт.

15

84426356

AIR INTAKE TUBE

Turbo Inlet Elbow

1шт.

16

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

Engine Air Intake Hose

2шт.
