Запчасти Case IH QUADTRAC 500 (55.015.AB[06]) - ENGINE HARNESS, 470, 500 (55) - ELECTRICAL SYSTEMS

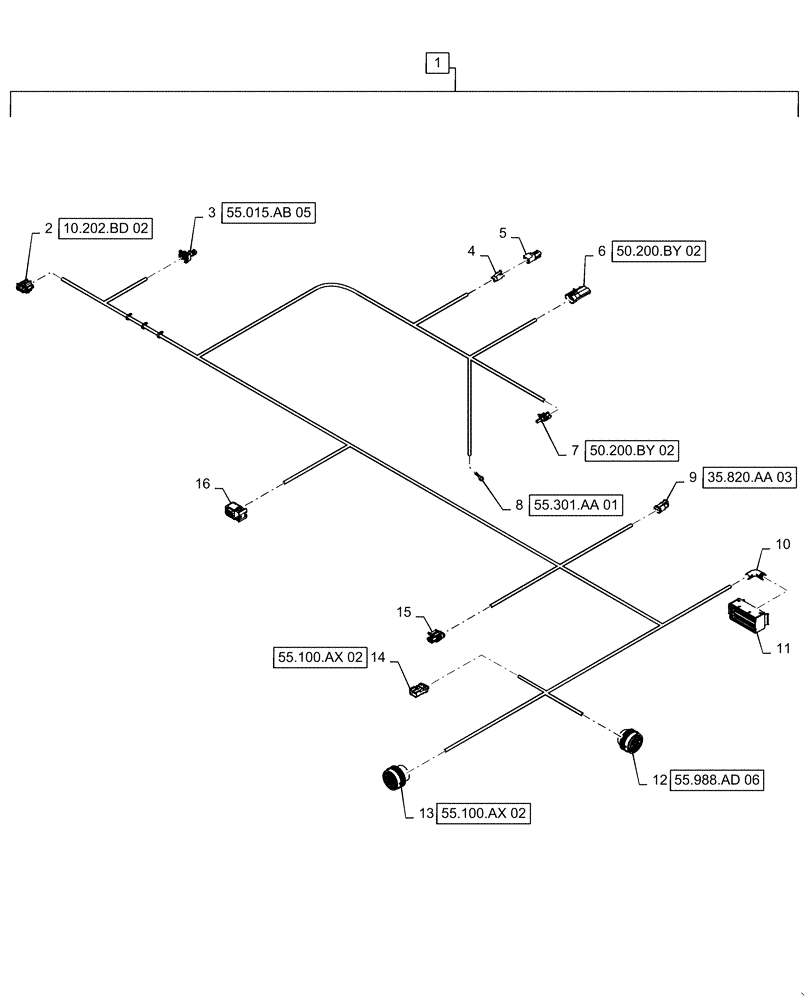

Схема запчастей Case IH QUADTRAC 500 - (55.015.AB[06]) - ENGINE HARNESS, 470, 500 (55) - ELECTRICAL SYSTEMS
4
6
35.820.aa 03
9
14
13
11
55.100.ax 02
7
50.200.by 02
55.100.ax 02
8
55.301.aa 01
5
10
3
55.015.ab 05
55.988.ad 06
1
50.200.by 02
15
16
2
10.202.bd 02
12

Артикул

Название

Примечание

Количество

1

47499908

WIRE HARNESS

Engine, Cursor 13 SST, Incl 2 - 16

1шт.

2

87709809

ELEC CONNECTOR

Temperature/Humidity Sensor, C151

1шт.

2

87705971

CONTACT

Temperature/Humidity Sensor, C151

4шт.

2

87705976

SEAL

Temperature/Humidity Sensor, C151

4шт.

3

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Filter Restriction Switch, C179

1шт.

3

87702681

TERMINAL

Air Filter Restriction Switch, C179

2шт.

3

87691478

SEAL

Air Filter Restriction Switch, C179

2шт.

4

87696093

ELEC CONNECTOR,Female, 2 Cavities

FPT BUS Diagnostic Port, C183

1шт.

4

87696145

LOCKING TAB

FPT BUS Diagnostic Port, C183

1шт.

4

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

FPT BUS Diagnostic Port, C183

2шт.

5

87696547

ELEC CONNECTOR,Female, 2 Cavities

C183 Dust Cap, DC183

1шт.

5

84807680

PLUG

C183 Dust Cap, DC183

2шт.

6

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

A/C High Pressure Switch, C175

1шт.

6

87688862

LOCKING TAB

A/C High Pressure Switch, C175

1шт.

6

87688814

TERMINAL

A/C High Pressure Switch, C175

2шт.

6

87688858

SEAL

A/C High Pressure Switch, C175

2шт.

7

87693744

WIRE CONNECTOR

A/C Compressor Clutch, C174

1шт.

7

87692856

CABLE TERMINAL

A/C Compressor Clutch, C174

1шт.

7

87680701

SEAL

A/C Compressor Clutch, C174

1шт.

8

1964703C1

TERMINAL CONNECTOR

Alternator Excite D+, C177

1шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

Hydraulic Fan Solenoid, C184

1шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

Hydraulic Fan Solenoid, C184

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Hydraulic Fan Solenoid, C184

2шт.

10

84126246

ELBOW

ECU Controller, C180

1шт.

11

84300197

MULTIPOLE CONNECTOR

ECU Controller, C180

1шт.

11

84300198

MULTIPOLE CONNECTOR

Cover, ECU Controller, C180

1шт.

11

84300193

LOCK

Lock, ECU Controller, C180

1шт.

11

84300195

TERMINAL

ECU Controller, C180

48шт.

12

87426772

MULTIPOLE CONNECTOR,Female, 29 Pole

To SCR Chassis Harness, C195M

1шт.

12

84068583

PLUG,12 - 16 Ga, White

To SCR Chassis Harness, C195M

6шт.

12

84807680

PLUG

To SCR Chassis Harness, C195M

3шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To SCR Chassis Harness, C195M

15шт.

12

87695923

TERMINAL

To SCR Chassis Harness, C195M

2шт.

12

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

To SCR Chassis Harness, C195M

3шт.

13

84177901

ELEC CONNECTOR

To Front Frame Harness, C100M

1шт.

13

84068583

PLUG,12 - 16 Ga, White

To Front Frame Harness, C100M

12шт.

13

87695623

ELEC. TERMINAL PIN

To Front Frame Harness, C100M

19шт.

14

87382923

ELEC CONNECTOR,Male, 10 Cavities

To Front Frame Harness, C150M

1шт.

14

84279937

PLUG,Apex, 2.80mm

To Front Frame Harness, C150M

2шт.

14

84294639

TERMINAL

To Front Frame Harness, C150M

6шт.

14

84395363

TERMINAL

To Front Frame Harness, C150M

2шт.

15

82012083

WIRE CONNECTOR,Female

Grid Heater Relay, C173

1шт.

15

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Grid Heater Relay, C173

2шт.

15

82012084

SEAL,1.4mm ID

Grid Heater Relay, C173

2шт.

16

84152563

ELEC CONNECTOR

Engine Interface Connector, C153

1шт.

16

82035902

PLUG

Engine Interface Connector, C153

1шт.

16

84129571

PLUG

Engine Interface Connector, C153

2шт.

16

84152576

TERMINAL

Engine Interface Connector, C153

2шт.

16

84129570

SEAL

Engine Interface Connector, C153

2шт.

16

84152586

TERMINAL,Tin, 1.50 - 2.50mm

Engine Interface Connector, C153

2шт.

16

87691478

SEAL

Engine Interface Connector, C153

2шт.

Выбрано товаров: 51
